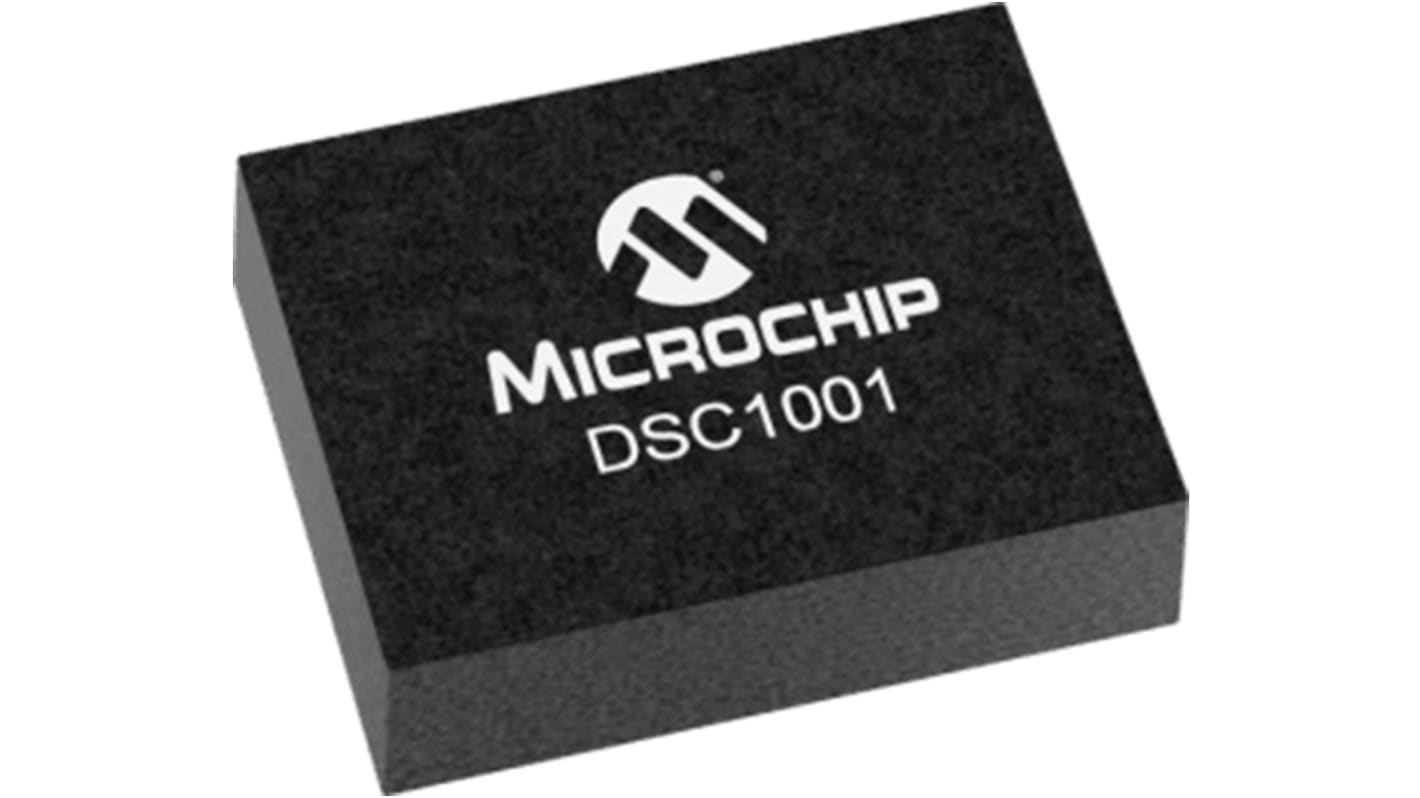

    Microchip 150MHz MEMS Oscillator, 4-Pin CDFN, ±50ppm, DSC1001DI1-024.0000

    RS庫存編號:
    177-1540
    製造零件編號:
    DSC1001DI1-024.0000
    製造商:
    Microchip
    Microchip
    查看所有MEMS Oscillators
    當前暫無庫存,可於2023/9/26發貨,3 工作日送達。
    Add to Basket
    單位

    已增加

    單價 毎管:140 個

    HK$7.192

    單位Per unitPer Tube*
    140 - 560HK$7.192HK$1,006.88
    700 +HK$6.472HK$906.08
    * 參考價格
    RS庫存編號:
    177-1540
    製造零件編號:
    DSC1001DI1-024.0000
    製造商:
    Microchip
    COO (Country of Origin):
    US

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    US

    產品詳細資訊

    The DSC1001 is a silicon MEMS based CMOS oscillator offering excellent jitter and stability performance over a wide range of supply voltages and temperatures. The device operates from 1 to 150MHz with supply voltages between 1.8 to 3.3 Volts and temperature ranges up to -40ºC to 105ºC.The DSC1001 incorporates an all silicon resonator that is extremely robust and nearly immune to stress related fractures, common to crystal based oscillators.

    Additional Features
    Frequency Range: 1 to 150MHz
    Exceptional Stability over Temperature
    ±10 PPM, ±20 PPM, ±25 PPM, ±50 PPM
    Operating voltage of 1.7V to 3.6V
    Operating Temperature Range
    Ext. Industrial -40°C to 105°C
    Industrial -40°C to 85°C
    Ext. Commercial -20°C to 70°C
    Commercial 0°C to 70°C
    Low Operating and Standby Current:
    5mA Operating (40MHz)
    15μA Standby
    Ultra Miniature Footprint:
    2.5mm x 2.0mm x 0.85mm
    3.2mm x 2.5mm x 0.85mm
    5.0mm x 3.2mm x 0.85mm
    7.0mm x 5.0mm x 0.85mm
    Pb-free

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    規格

    AttributeValue
    Oscillator TypeMEMS
    Maximum Output Frequency150MHz
    Frequency Stability±50ppm
    Mounting TypeSurface Mount
    Package TypeCDFN
    Pin Count4
    Dimensions2.5 x 2 x 0.85mm
    Length2.5mm
    Width2mm
    Height0.85mm
    Maximum Operating Temperature85°C
    Minimum Operating Temperature-40°C
    Automotive StandardAEC-Q100
