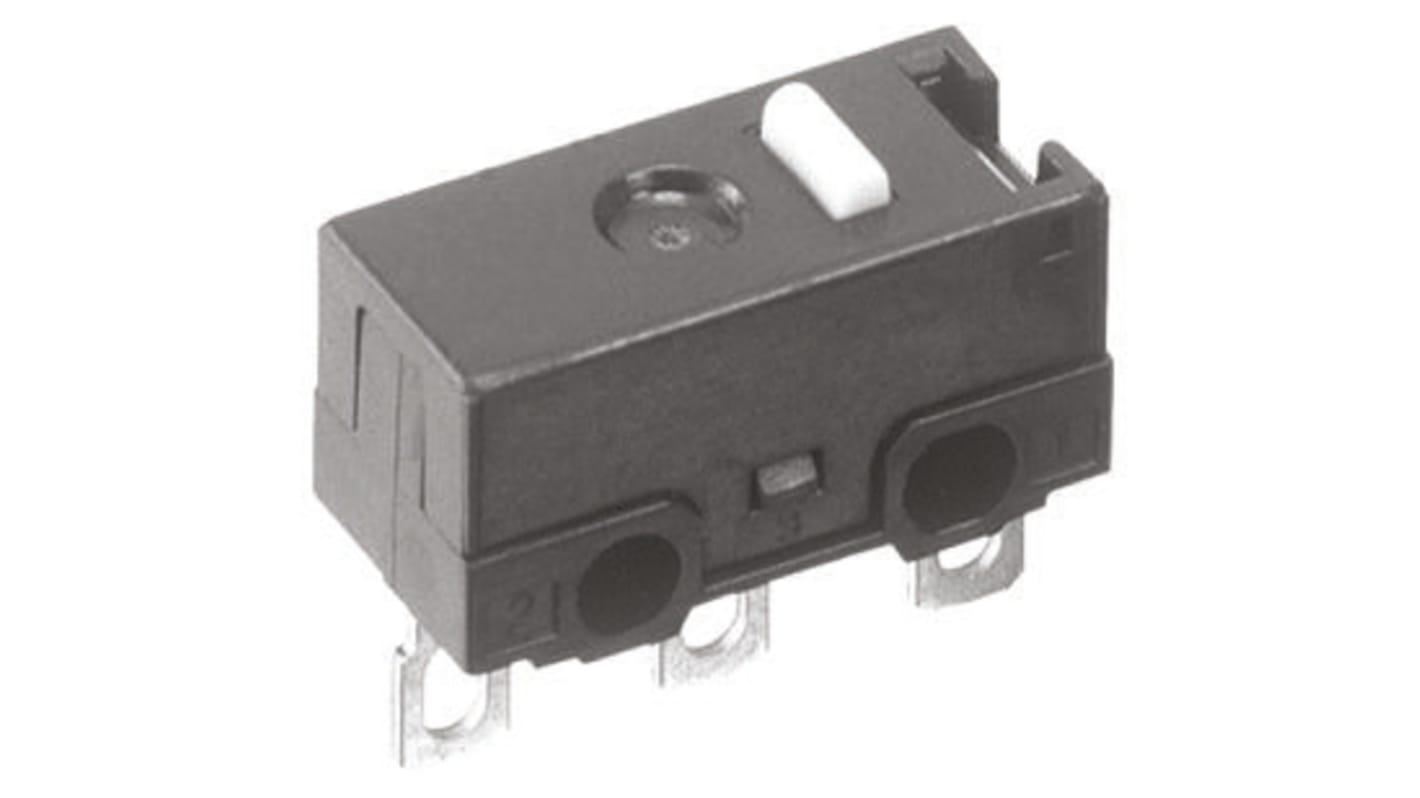

Panasonic Pin Plunger Micro Switch, Solder Terminal, 2 A @ 30 V dc, SP-CO
- RS庫存編號:
- 173-9109
- 製造零件編號:
- AH16609
- 製造商:
- Panasonic
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Micro Switches
當前暫無庫存，可於2023/11/8發貨，3 工作日送達。
單價 毎管：50 個
HK$8.208
| 單位 | Per unit | Per Tube* |
| 50 - 200 | HK$8.208 | HK$410.40 |
| 250 + | HK$7.387 | HK$369.35 |
| * 參考價格 | ||
- RS庫存編號:
- 173-9109
- 製造零件編號:
- AH16609
- 製造商:
- Panasonic
- COO (Country of Origin):
- JP
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊
AH1 Ultra-Miniature High Precision Microswitch
These ultra-miniature microswitches are available with various terminal and actuator styles, the compact size 12.8 x 6 x 8.5 mm minimizes the size of equipment they can be used in. These ultra miniature microswitches are typically used in applications such as computer mice, charger units for mobile phones and key position detector devices in automobiles.
Integrally moulded terminal block prevents soldering flux from entering into housing
Compact size, 12.8 x 6 x 8.5 mm
Flat terminal shape enabling easy soldering
Compact size, 12.8 x 6 x 8.5 mm
Flat terminal shape enabling easy soldering
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Approvals
UL/CSA
規格
| Attribute | Value |
| Actuator Type | Pin Plunger |
| Terminal Type | Solder |
| Contact Current Rating | 2 A @ 30 V dc |
| Contact Configuration | SP-CO |
| Operating Force | 1.47 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Nickel Alloy |
| Mechanical Life | 5 x 10^5Operations |
| Release Force | 0.29N |
| Operating Temperature Range | -25 → +85°C |
