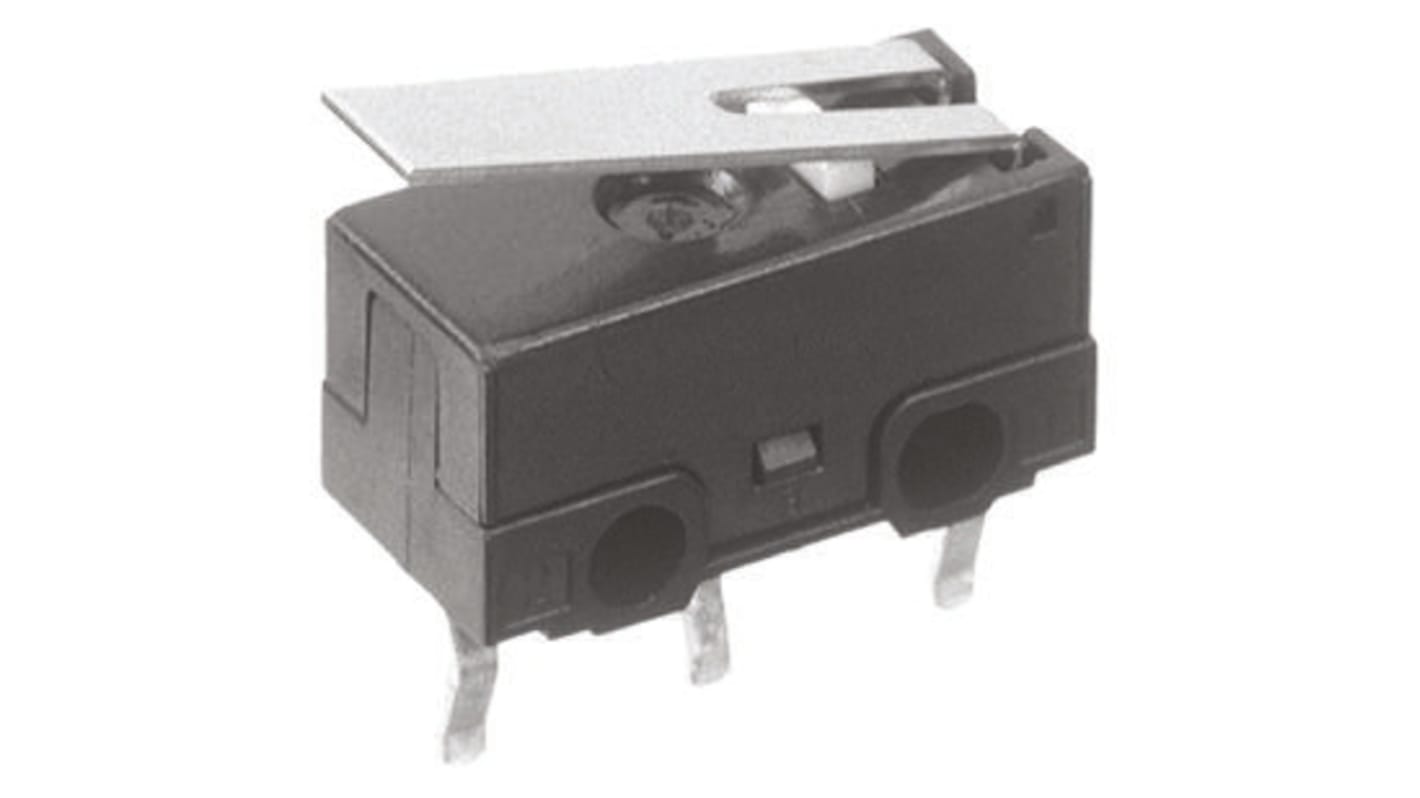

Panasonic Hinge Lever Micro Switch, PCB Terminal, 100 mA @ 30 V dc, SPDT
- RS庫存編號:
- 699-5294
- 製造零件編號:
- AH1562619
- 製造商:
- Panasonic
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Micro Switches
- RS庫存編號:
- 699-5294
- 製造零件編號:
- AH1562619
- 製造商:
- Panasonic
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
AH1 Ultra-Miniature High Precision Microswitch
These ultra-miniature microswitches are available with various terminal and actuator styles, the compact size 12.8 x 6 x 8.5 mm minimizes the size of equipment they can be used in. These ultra miniature microswitches are typically used in applications such as computer mice, charger units for mobile phones and key position detector devices in automobiles.
Integrally moulded terminal block prevents soldering flux from entering into housing
Compact size, 12.8 x 6 x 8.5 mm
Flat terminal shape enabling easy soldering
Compact size, 12.8 x 6 x 8.5 mm
Flat terminal shape enabling easy soldering
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Approvals
UL/CSA
規格
| Attribute | Value |
| Actuator Type | Hinge Lever |
| Terminal Type | PCB |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| Operating Force | 0.49 N |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Clad Silver Nickel Alloy |
| Mechanical Life | 500000Operations |
| Release Force | 0.049N |
| Operating Temperature Range | -25 → +85°C |
