Renesas Electronics MCU Evaluation Board YQB-R5F1057A-TB
- RS庫存編號:
- 136-7215
- 製造零件編號:
- YQB-R5F1057A-TB
- 製造商:
- Renesas Electronics
- RS庫存編號:
- 136-7215
- 製造零件編號:
- YQB-R5F1057A-TB
- 製造商:
- Renesas Electronics
產品概覽和技術數據資料表
法例與合規
產品詳細資訊

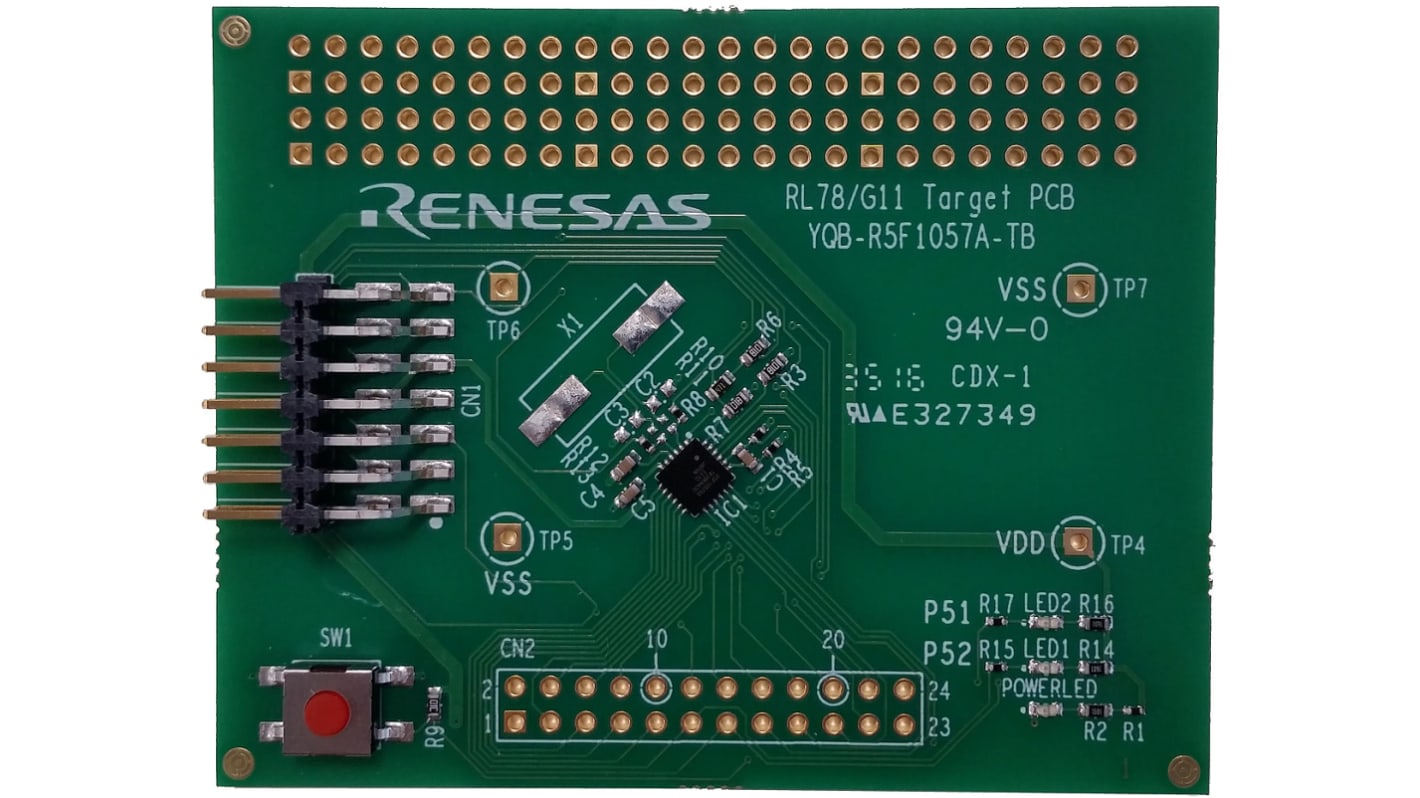

Target Board for RL78/G11 Microcontrollers
The Renesas YQB-R5F1057A-TB Target board is designed for evaluating application operation with RL78/G11 group microcontrollers.
• 24MHz RL78/G11 (R5F1057AANA) 16-bit MCU with 16KB Flash memory, 1.5KB RAM
• Power status LED
• 2 x User LEDs
• User pushbutton
• 24-pin peripheral connector socket pads
• 14-pin header for E1/E2 Lite emulator pod connection
• 4 x 24 pad prototyping area
• Power supply: +1.6 to +5.5Vdc
• Dimensions: 71 x 56mm
• Power status LED
• 2 x User LEDs
• User pushbutton
• 24-pin peripheral connector socket pads
• 14-pin header for E1/E2 Lite emulator pod connection
• 4 x 24 pad prototyping area
• Power supply: +1.6 to +5.5Vdc
• Dimensions: 71 x 56mm
RL78 Family Microcontrollers, Renesas Electronics
規格
Attribute | Value |
|---|---|
| Classification | Evaluation Board |
| Technology | MCU |
| Processor Family Name | RL78 |
| Processor Part Number | R5F107AANA |
| Processor Type | MCU |
