- RS庫存編號:
- 230-5113
- 製造零件編號:
- K048
- 製造商:
- M5Stack
63 現貨庫存,可於3工作日發貨。
單價 个
HK$297.52
單位 | Per unit |
1 - 4 | HK$297.52 |
5 - 9 | HK$279.76 |
10 + | HK$262.77 |
- RS庫存編號:
- 230-5113
- 製造零件編號:
- K048
- 製造商:
- M5Stack
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

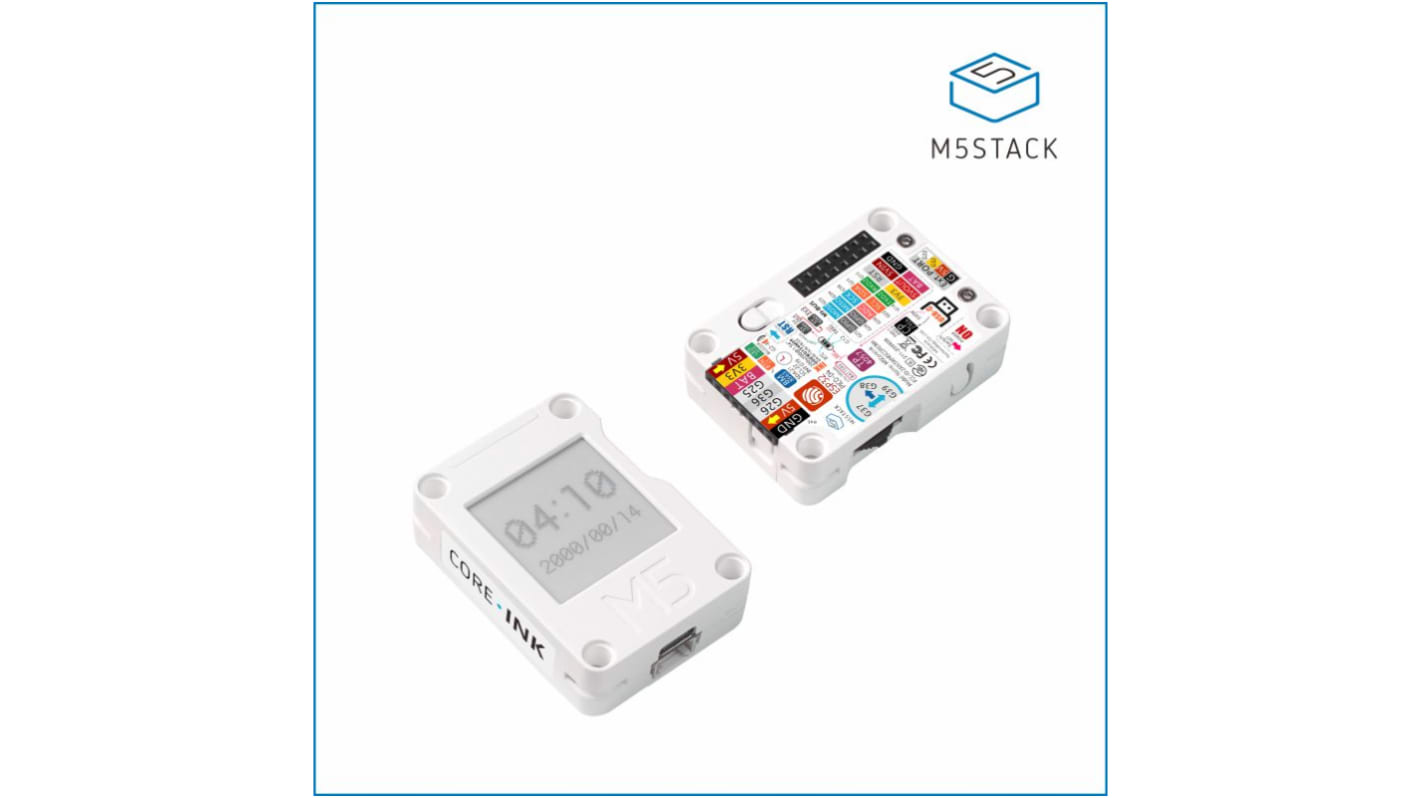

The M5Stack CoreInk is a brand new E-ink display in the M5Stack cores range. Controlled by the ESP32-PICO-D4 This new device includes a 200x200 1.54" Black and White E-Ink Display. Compared to a regular LCD,E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer periods. Other benefits are the low power consumption and the ability to retain the image even if power to the display is terminated。For control the CoreInk integrates an multi-function button,A physical button, integrated status LED and buzzer. The device also includes a 390mAh Lipo,RTC(BM8563)for controlling accurate timing and deep sleep functionality.
ESP32 Standard wireless f unctions WiFi, Bluetooth
Internal 4M Flash
Low Power Display
180 degree v iewing angle
Expansion ports
Built-in Magnet
Internal Battery
Expandable
Internal 4M Flash
Low Power Display
180 degree v iewing angle
Expansion ports
Built-in Magnet
Internal Battery
Expandable
規格
Attribute | Value |
---|---|
Classification | Development Kit |
Kit Name | CoreInk |
Technology | 32 Bit MCU |
Device Core | ESP32 |
Processor Family Name | ESP32 |
