- RS庫存編號:
- 186-9164
- 製造零件編號:
- MC100EL32DG
- 製造商:
- onsemi
16 現貨庫存,可於3工作日發貨。
已增加
單價 个(每托盘 2 )
HK$50.645
單位 | Per unit | Per Pack* |
2 - 24 | HK$50.645 | HK$101.29 |
26 - 48 | HK$49.38 | HK$98.76 |
50 + | HK$48.62 | HK$97.24 |
* 參考價格 |
- RS庫存編號:
- 186-9164
- 製造零件編號:
- MC100EL32DG
- 製造商:
- onsemi
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The MC10EL/100EL32 is an integrated divide by 2 divider. The differential clock inputs and the VBB allow a differential, single-ended or AC coupled interface to the device. If used, the VBB output should be bypassed to ground with a 0.01 F capacitor. Also note that the VBB is designed to be used as an input bias on the EL32 only, the VBB output has limited current sink and source capability. The reset pin is asynchronous and is asserted on the rising edge. Upon power-up, the internal flip-flop will attain a random state, the reset allows for the synchronization of multiple EL32's in a system. The 100 Series contains temperature compensation.
510ps Propagation Delay
3.0GHz Toggle Frequency
ESD Protection: > 1 KV HBM, > 100 V MM
PECL Mode Operating Range: VCC= 4.2 V to 5.7 V with VEE= 0 V
NECL Mode Operating Range: VCC= 0 V with VEE= -4.2 V to -5.7 V
Internal Input Pulldown Resistors on CLK(s) and R.
Moisture Sensitivity Level 1
Transistor Count = 82 devices
Applications
Phase Lock Loops
3.0GHz Toggle Frequency
ESD Protection: > 1 KV HBM, > 100 V MM
PECL Mode Operating Range: VCC= 4.2 V to 5.7 V with VEE= 0 V
NECL Mode Operating Range: VCC= 0 V with VEE= -4.2 V to -5.7 V
Internal Input Pulldown Resistors on CLK(s) and R.
Moisture Sensitivity Level 1
Transistor Count = 82 devices
Applications
Phase Lock Loops
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
---|---|
Logic Family | ECL |
Logic Function | Divider |
Number of Elements per Chip | 2 |
Mounting Type | Surface Mount |

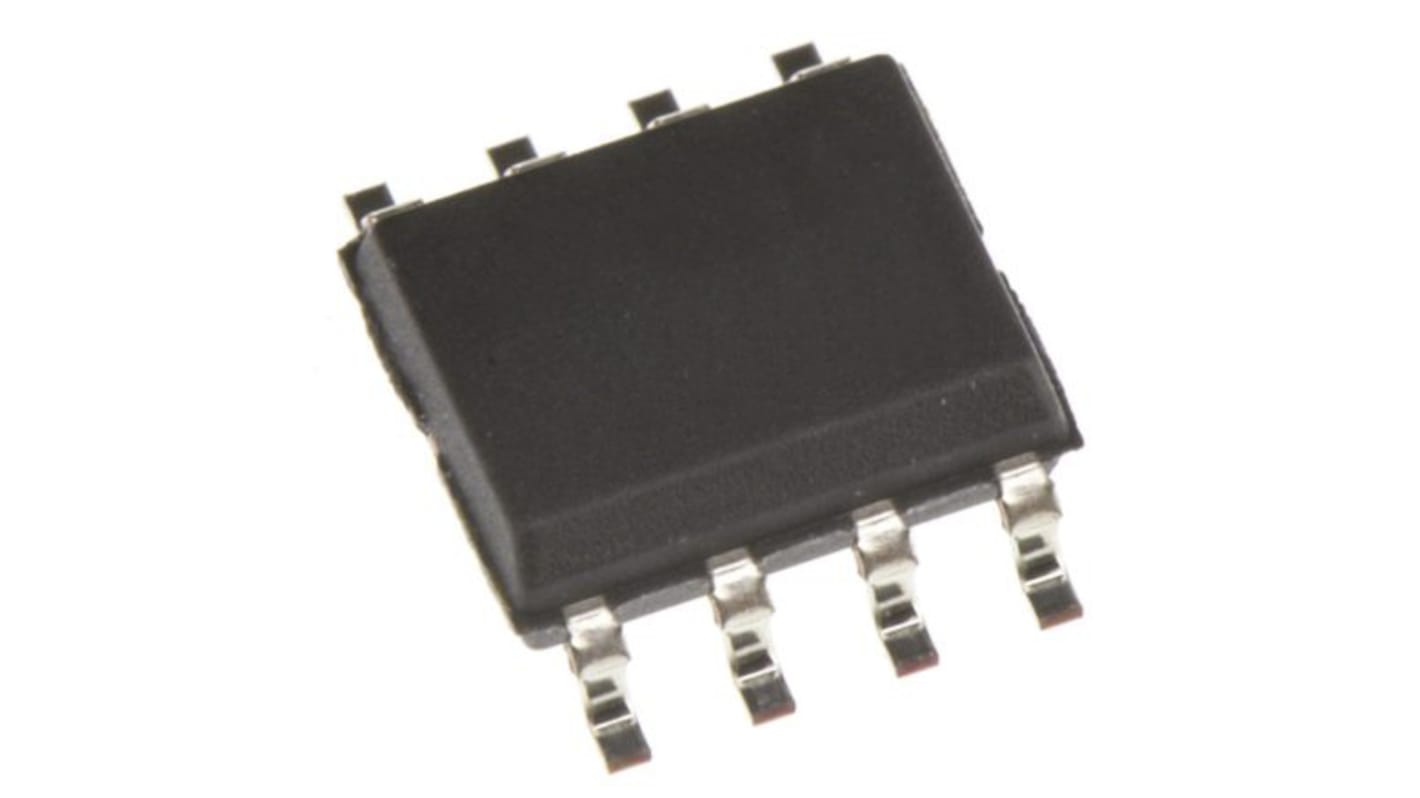

Package Type | SOIC |
Pin Count | 8 |
Dimensions | 5 x 4 x 1.5mm |
Height | 1.5mm |
Length | 5mm |
Minimum Operating Supply Voltage | 4.2 V |
Maximum Operating Supply Voltage | 5.7 V |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 4mm |
