Bourns EM14 Series Optical Incremental Encoder, 64 ppr, Quadrature Signal, Slotted Type, 1/8in Shaft
- RS庫存編號:
- 167-4554
- 製造零件編號:
- EM14C0D-E24-L064S
- 製造商:
- Bourns

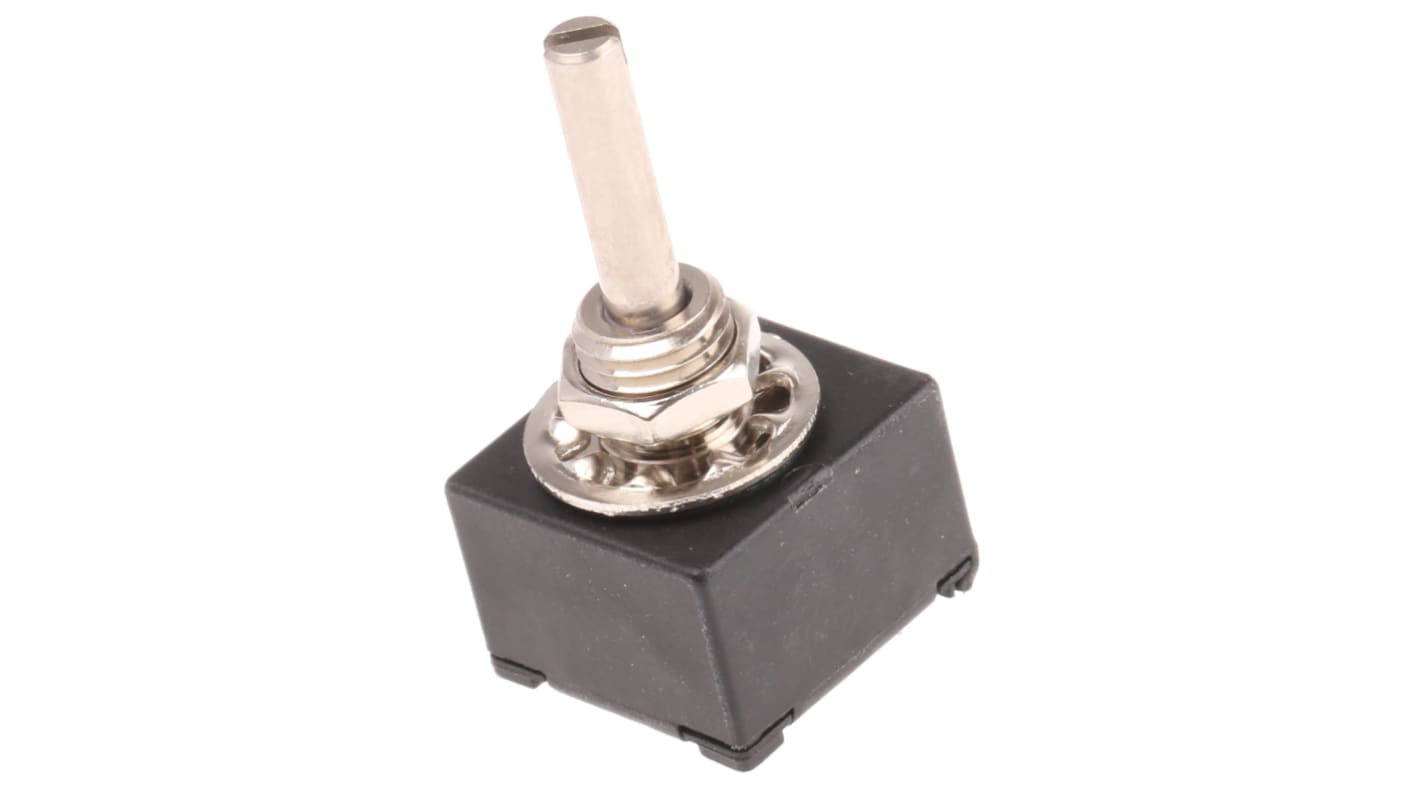

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Motion Control Sensors
可供預購。
單價 毎管：25 個
HK$187.925
| 單位 | Per unit | Per Tube* |
| 25 - 25 | HK$187.925 | HK$4,698.125 |
| 50 - 75 | HK$183.227 | HK$4,580.675 |
| 100 + | HK$180.408 | HK$4,510.20 |
| * 參考價格 | ||
- RS庫存編號:
- 167-4554
- 製造零件編號:
- EM14C0D-E24-L064S
- 製造商:
- Bourns
- COO (Country of Origin):
- MX
法例與合規
- COO (Country of Origin):
- MX
產品詳細資訊
EM14 Series 14 mm Rotary Optical Encoder w/Switch
EM14 series 14 mm rotary optical encoders with a compact package size, splashproof shaft seal, high rotational life cycle and HCMOS, CMOS and TTL compatability. These EM14 series rotary optical encoders are available with detent (stock number 789-9497) and standard push switch (stock numbers 691-7695, 691-7692, 691-7705, 691-7709, 691-7718, 827 4997 and 827-5007) and have different shaft styles (please refer to datasheet for details). Typical applications for these EM14 rotary optical encoders are human/machine interface (HMI) applications.
HCMOS, CMOS and TTL compatible
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Encoder Technology | Optical |
| Pulses Per Revolution | 64 |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
| Shaft Type | Slotted |
| Supply Voltage | 5 V dc |
| Shaft Diameter | 1/8in |
| Resolution | 2 Bit |
| IP Rating | IP54 |
| Overall Height | 14.76mm |
| Overall Width | 14.25mm |
| Overall Depth | 32.05mm |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Panel Mount |
| Maximum Operating Temperature | +70°C |
| Connection Type | Axial Multi-Purpose Pin |
| Series | EM14 |
