SICK Incremental Incremental Encoder, 1 → 65536 ppr, HTL, TTL Signal, Solid Type, 10mm Shaft

查看所有Motion Control Sensors

小計（1 件）*

HK$5,473.10

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年2月02日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$5,473.10

* 參考價格

RS庫存編號:
201-3639
製造零件編號:
DFS60I-S4PM65536 / 1083969
製造商:
SICK
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

SICK

Encoder Technology

Incremental

Pulses Per Revolution

1 → 65536

Maximum Revolutions

9000rpm

Output Signal Type

HTL, TTL

Shaft Type

Solid

Supply Voltage

4.5 to 32 V dc

Shaft Diameter

10mm

IP Rating

IP67

Overall Width

60mm

Overall Depth

43.6mm

COO (Country of Origin):
DE

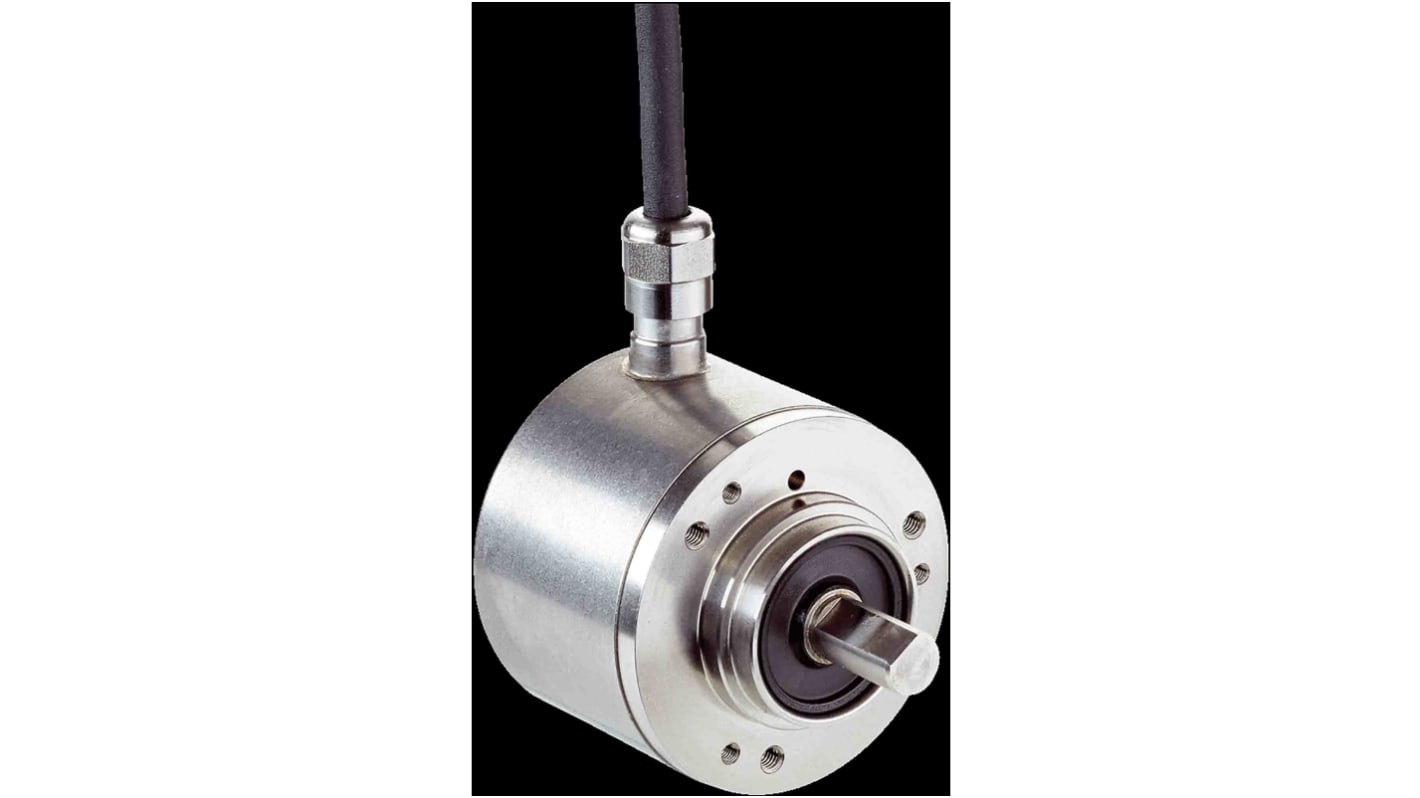

This SICK DFS60I Stainless Steel encoder is manufactured from V2A stainless steel to provide an IP67 rated robust corrosion resistant speed and position measurement solution. The resolution and the output signal levels are programmable using a PC and the programming tool with order code: 712-5434. Any PPR can be selected from 1 - 65536 (default 65536) and the output signal can be selected to be TTL or HTL (default TTL). This model has a 10mm Solid shaft and a 5m cable exit.

Operating current 40 mA
Supply voltage 4.5 to 32 V
Output frequency is = 820 kHz
