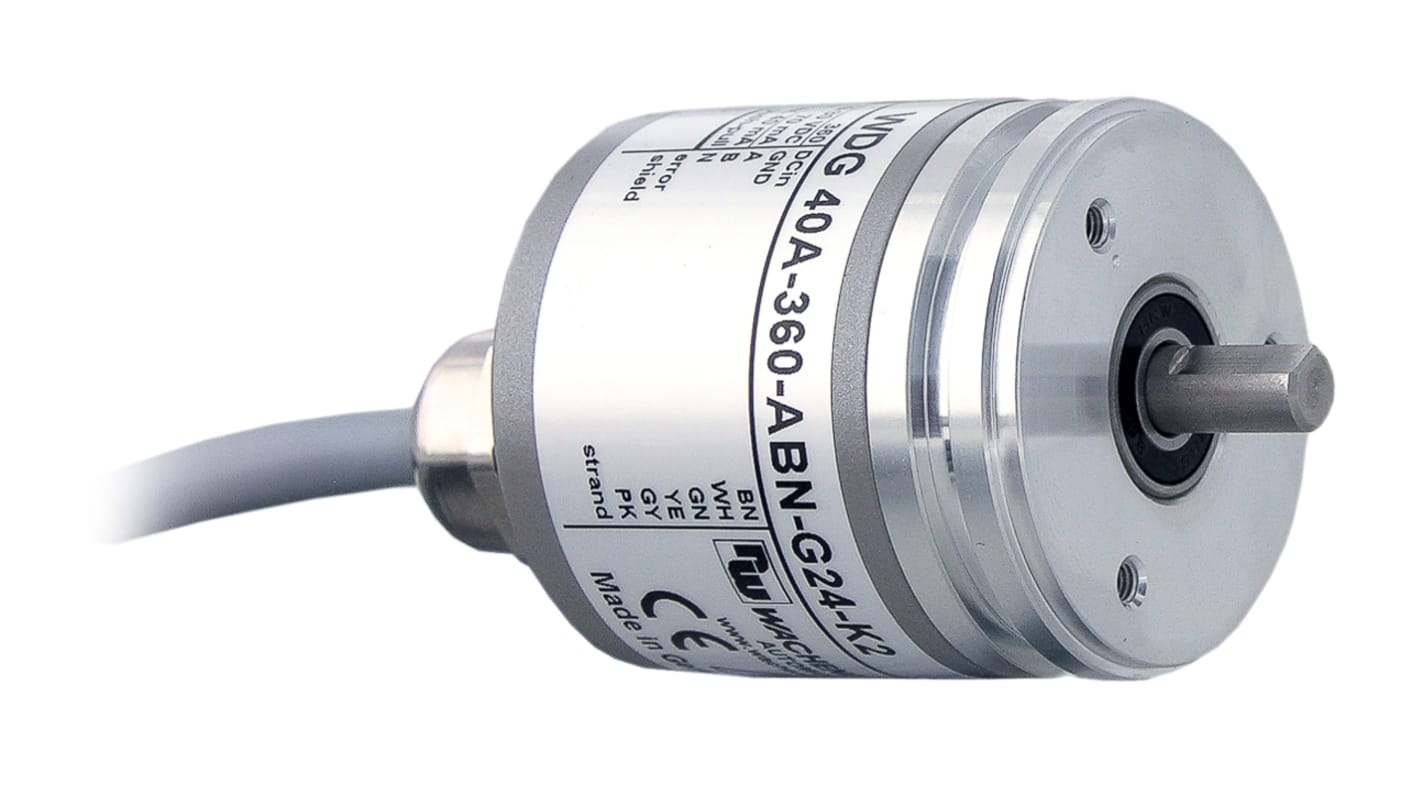

Wachendorff Incremental Incremental Encoder, 360 ppr, HTL Signal, Solid Type
- RS庫存編號:
- 260-0832
- 製造零件編號:
- 40A360ABNG24K2
- 製造商:
- Wachendorff
不可供應
RS 不再對此產品進貨。
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 260-0832
- 製造零件編號:
- 40A360ABNG24K2
- 製造商:
- Wachendorff
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wachendorff | |
| Encoder Technology | Incremental | |
| Pulses Per Revolution | 360 | |
| Maximum Revolutions | 12000rpm | |
| Output Signal Type | HTL | |
| Shaft Type | Solid | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP65, IP67 | |
| Overall Height | 55mm | |
| Minimum Operating Temperature | -20°C | |
| Mounting Type | Synchro Flange | |
| Maximum Operating Temperature | +80°C | |
| Switching Frequency | 200 kHz | |
| 選取全部 | ||
|---|---|---|
品牌 Wachendorff | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 360 | ||
Maximum Revolutions 12000rpm | ||
Output Signal Type HTL | ||
Shaft Type Solid | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP65, IP67 | ||
Overall Height 55mm | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Synchro Flange | ||
Maximum Operating Temperature +80°C | ||
Switching Frequency 200 kHz | ||
豁免
- COO (Country of Origin):
- DE
WDG40A Incremental Rotary Transducer, Shaft, 40 mm
The WDG 40 A is a robust, small and cost-effective rotary transducer. It can be used wherever precise recordings of paths, positions or speeds are required.
