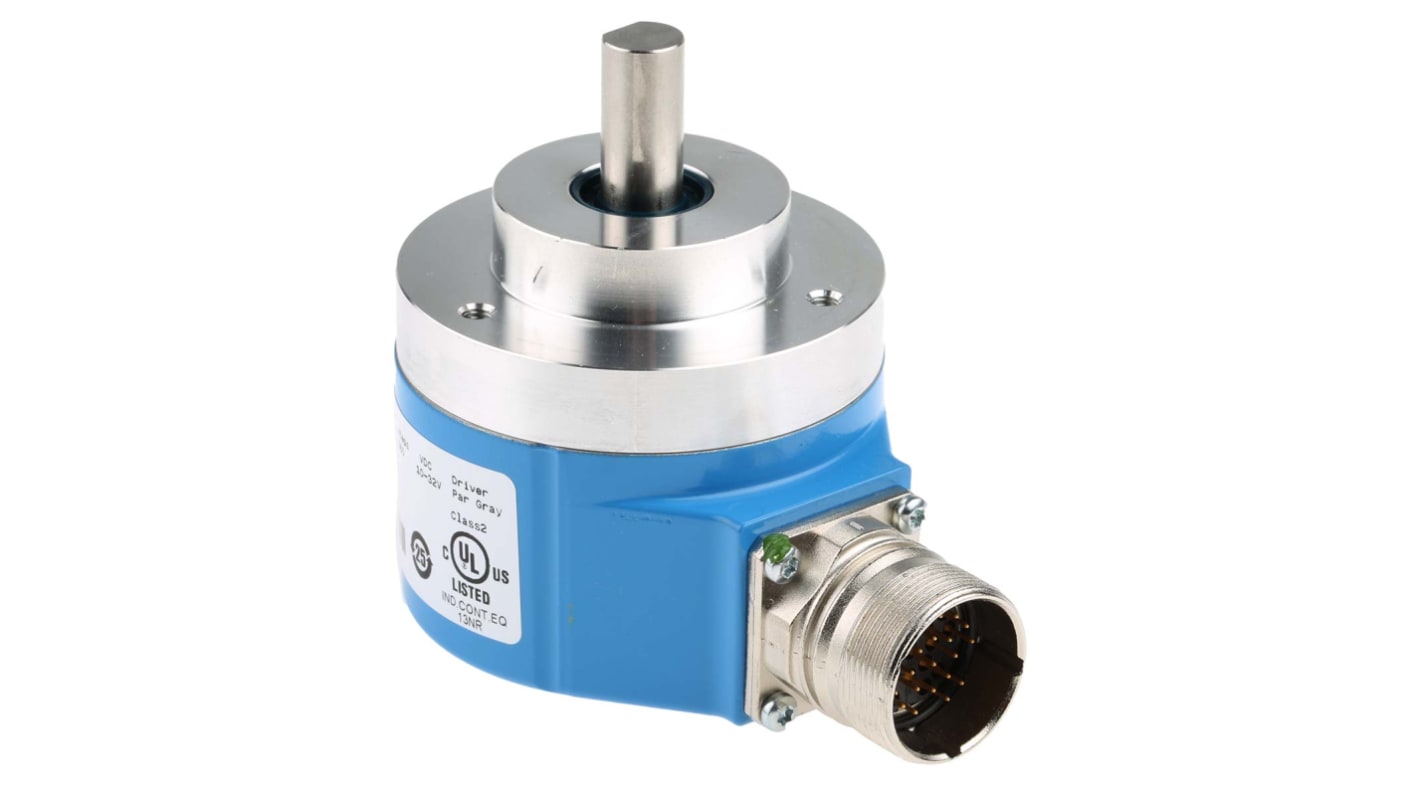

Sick Absolute Absolute Encoder, 360 ppr, Gray Signal, Solid Type, 10mm Shaft
- RS庫存編號:
- 492-9163
- 製造零件編號:
- ARS60-G4A00360
- 製造商:
- Sick
查看所有Motion Control Sensors
- RS庫存編號:
- 492-9163
- 製造零件編號:
- ARS60-G4A00360
- 製造商:
- Sick
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- DE
產品詳細資訊
Singleturn Absolute Encoders
Protection class IP65
Operating voltage:10-32Vdc
Operating temperature range: -20 to +85°C
Electrical interface SSI or parallel
Zero adjustment directly on the encoder or via a remote line
Operating voltage:10-32Vdc
Operating temperature range: -20 to +85°C
Electrical interface SSI or parallel
Zero adjustment directly on the encoder or via a remote line
Note
The bus coupler (stock no. 492-9208) is required to form a fully functioning encoder
規格
Attribute | Value |
|---|---|
| Encoder Technology | Absolute |
| Pulses Per Revolution | 360 |
| Maximum Revolutions | 10000rpm |
| Output Signal Type | Gray |
| Shaft Type | Solid |
| Shaft Diameter | 10mm |
| Supply Voltage | 10 → 32 V dc |
| Steps Per Revolution | 360Steps |
| IP Rating | IP64, IP65, IP66 |
| Interface | Parallel |
| Overall Height | 78.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
