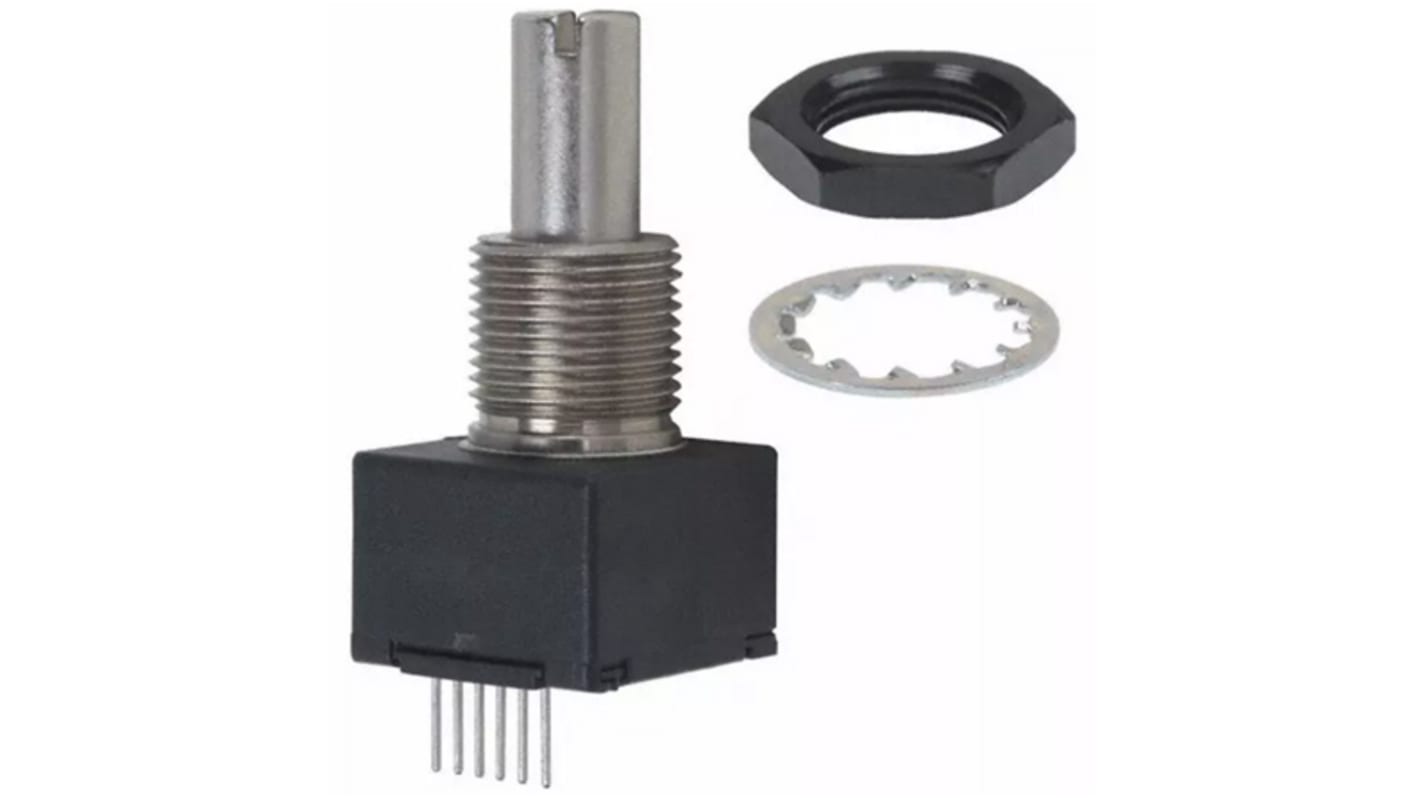

Bourns EM14 Series Optical Incremental Encoder, 64 ppr, Quadrature Signal, Solid Type, 1/4in Shaft
- RS庫存編號:
- 691-7702
- 製造零件編號:
- EM14A0D-C24-L064N
- 製造商:
- Bourns
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Motion Control Sensors
法例與合規
- COO (Country of Origin):
- MX
產品詳細資訊
EM14 Series 14 mm Rotary Optical Encoder w/Switch
EM14 series 14 mm rotary optical encoders with a compact package size, splashproof shaft seal, high rotational life cycle and HCMOS, CMOS and TTL compatability. These EM14 series rotary optical encoders are available with detent (stock number 789-9497) and standard push switch (stock numbers 691-7695, 691-7692, 691-7705, 691-7709, 691-7718, 827 4997 and 827-5007) and have different shaft styles (please refer to datasheet for details). Typical applications for these EM14 rotary optical encoders are human/machine interface (HMI) applications.
HCMOS, CMOS and TTL compatible
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Encoder Technology | Optical |
| Pulses Per Revolution | 64 |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
| Shaft Type | Solid |
| Supply Voltage | 5 V dc |
| Shaft Diameter | 1/4in |
| Resolution | 2 bit |
| IP Rating | IP54 |
| Overall Height | 14.76mm |
| Overall Width | 14.25mm |
| Overall Depth | 32.05mm |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Panel Mount |
| Maximum Operating Temperature | +70°C |
| Series | EM14 |
| Connection Type | Axial Multi-Purpose Pin |
當前暫無庫存，可於2023/8/17發貨，3 工作日送達。
單價 個
原價 HK$238.89
您付款
HK$204.70
| 單位 | Per unit |
| 1 - 6 | HK$204.70 |
| 7 - 12 | HK$200.20 |
| 13 + | HK$195.90 |
