Bourns EM14 Series Optical Incremental Encoder, 64 ppr, Quadrature Signal, Solid Type, 1/4in Shaft
- RS庫存編號:
- 691-7705P
- 製造零件編號:
- EM14A0D-C24-L064S
- 製造商:
- Bourns

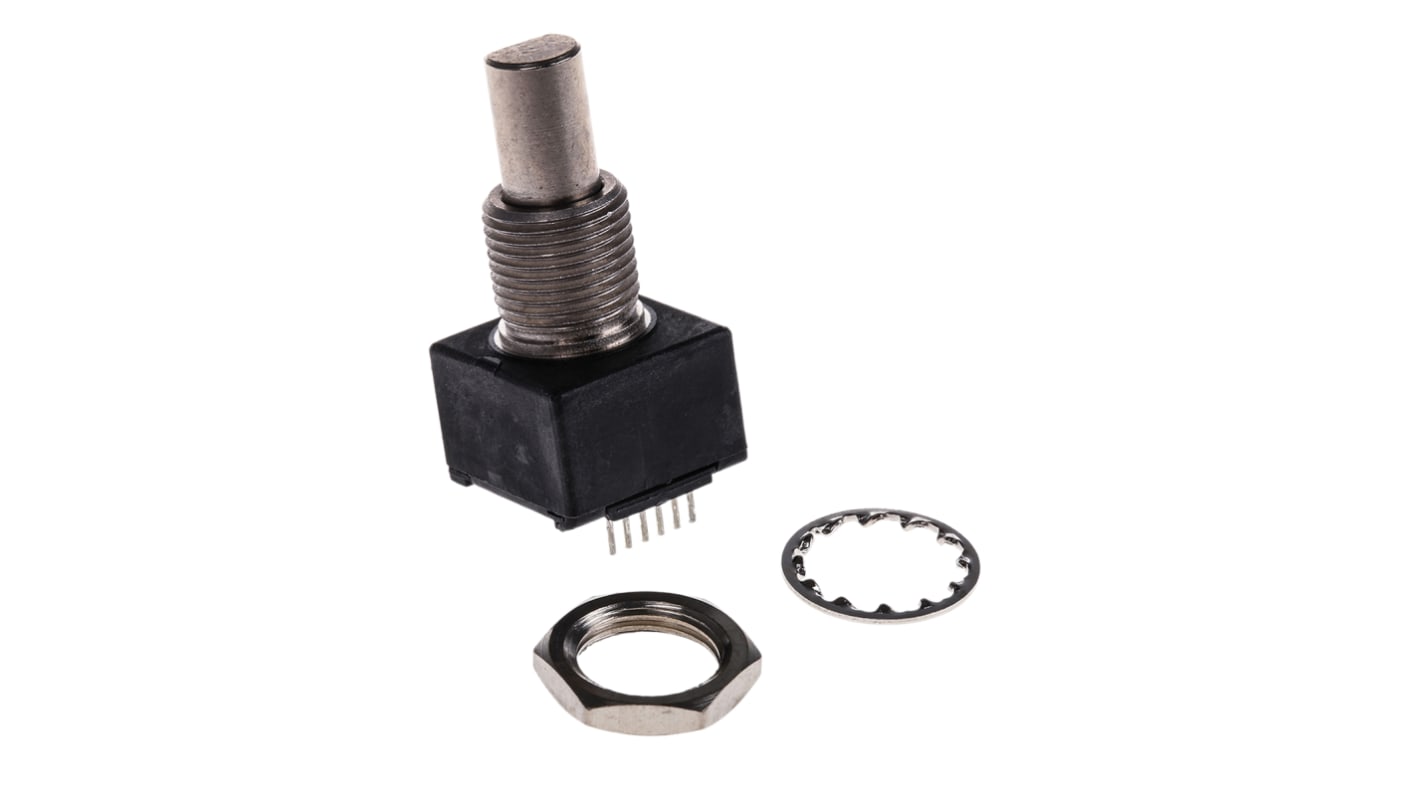

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計 7 件 (以管提供)*
HK$1,628.20
訂單超過 HK$250.00 免費送貨
有庫存
- 6 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 7 - 12 | HK$232.60 |
| 13 + | HK$227.60 |
* 參考價格
- RS庫存編號:
- 691-7705P
- 製造零件編號:
- EM14A0D-C24-L064S
- 製造商:
- Bourns
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Bourns | |
| Encoder Technology | Optical | |
| Series | EM14 | |
| Pulses Per Revolution | 64 | |
| Maximum Revolutions | 120rpm | |
| Output Signal Type | Quadrature | |
| Shaft Type | Solid | |
| Shaft Diameter | 1/4in | |
| Supply Voltage | 5 V dc | |
| Resolution | 2 bit | |
| IP Rating | IP54 | |
| Overall Height | 14.76mm | |
| Overall Width | 14.25mm | |
| Overall Depth | 32.05mm | |
| Minimum Operating Temperature | -40°C | |
| Mounting Type | Panel Mount | |
| Maximum Operating Temperature | +70°C | |
| Connection Type | Axial Multi-Purpose Pin | |
| 選取全部 | ||
|---|---|---|
品牌 Bourns | ||
Encoder Technology Optical | ||
Series EM14 | ||
Pulses Per Revolution 64 | ||
Maximum Revolutions 120rpm | ||
Output Signal Type Quadrature | ||
Shaft Type Solid | ||
Shaft Diameter 1/4in | ||
Supply Voltage 5 V dc | ||
Resolution 2 bit | ||
IP Rating IP54 | ||
Overall Height 14.76mm | ||
Overall Width 14.25mm | ||
Overall Depth 32.05mm | ||
Minimum Operating Temperature -40°C | ||
Mounting Type Panel Mount | ||
Maximum Operating Temperature +70°C | ||
Connection Type Axial Multi-Purpose Pin | ||
EM14 Series 14 mm Rotary Optical Encoder w/Switch
EM14 series 14 mm rotary optical encoders with a compact package size, splashproof shaft seal, high rotational life cycle and HCMOS, CMOS and TTL compatability. These EM14 series rotary optical encoders are available with detent (stock number 789-9497) and standard push switch (stock numbers 691-7695, 691-7692, 691-7705, 691-7709, 691-7718, 827 4997 and 827-5007) and have different shaft styles (please refer to datasheet for details). Typical applications for these EM14 rotary optical encoders are human/machine interface (HMI) applications.
HCMOS, CMOS and TTL compatible
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
High rotational cycle life
Splashproof shaft seal
Recommended for human/machine interface applications (HMI)
