Bourns Incremental Encoder, 16 ppr, Quadrature Signal, Solid Type, 1/4in Shaft
- RS庫存編號:
- 692-8468P
- 製造零件編號:
- 3315C-001-016L
- 製造商:
- Bourns

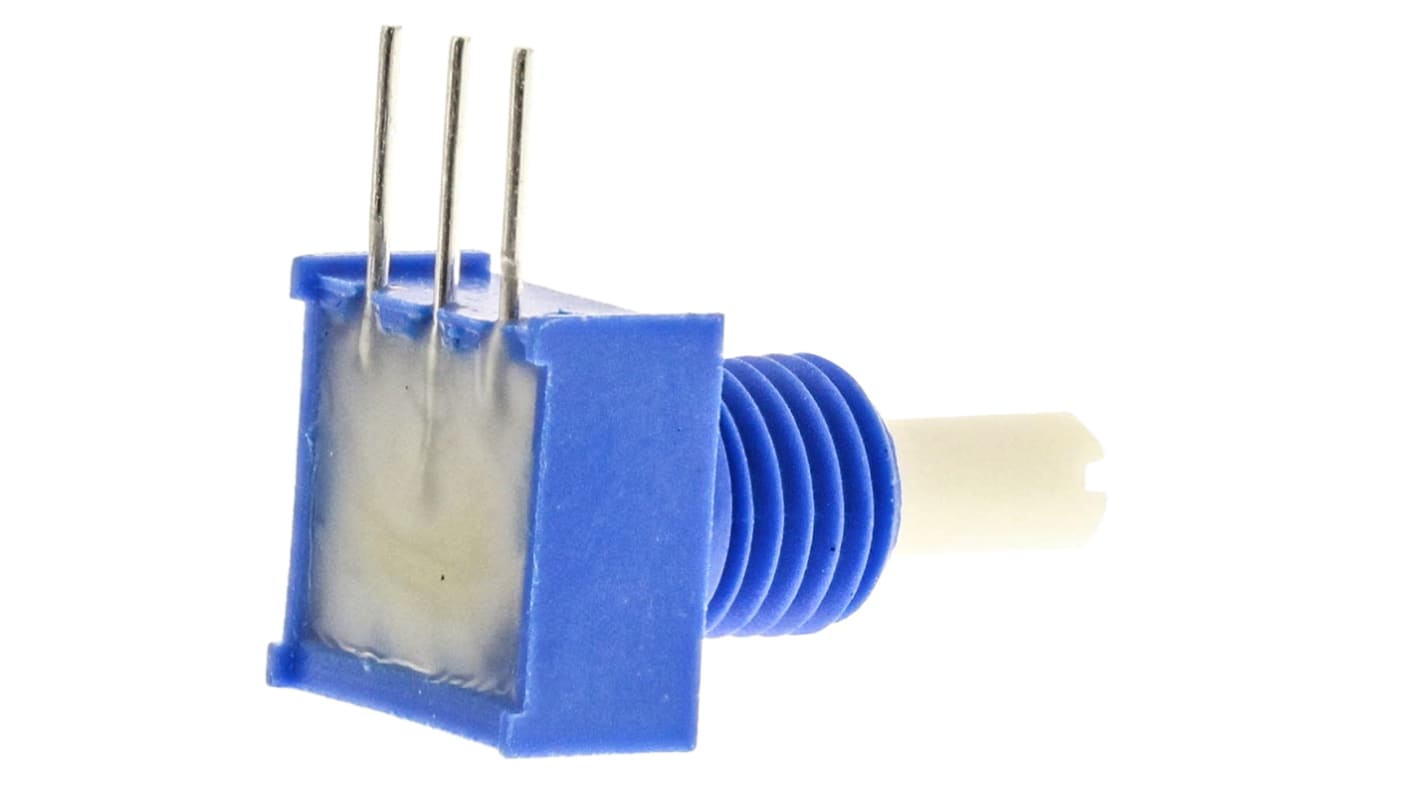

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Motion Control Sensors
- RS庫存編號:
- 692-8468P
- 製造零件編號:
- 3315C-001-016L
- 製造商:
- Bourns
- COO (Country of Origin):
- MX
法例與合規
- COO (Country of Origin):
- MX
產品詳細資訊
9 mm Square Sealed Incremental Encoder
Long Operating Life
Conductive plastic element
Quadrature output
Conductive plastic element
Quadrature output
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Encoder Technology | Incremental |
| Pulses Per Revolution | 16 |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
| Shaft Type | Solid |
| Shaft Diameter | 1/4in |
| Resolution | 2 bit |
| IP Rating | IP67 |
| Overall Height | 9.53mm |
| Overall Width | 9.53mm |
| Overall Depth | 17.88mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Mounting Type | Panel Mount |
