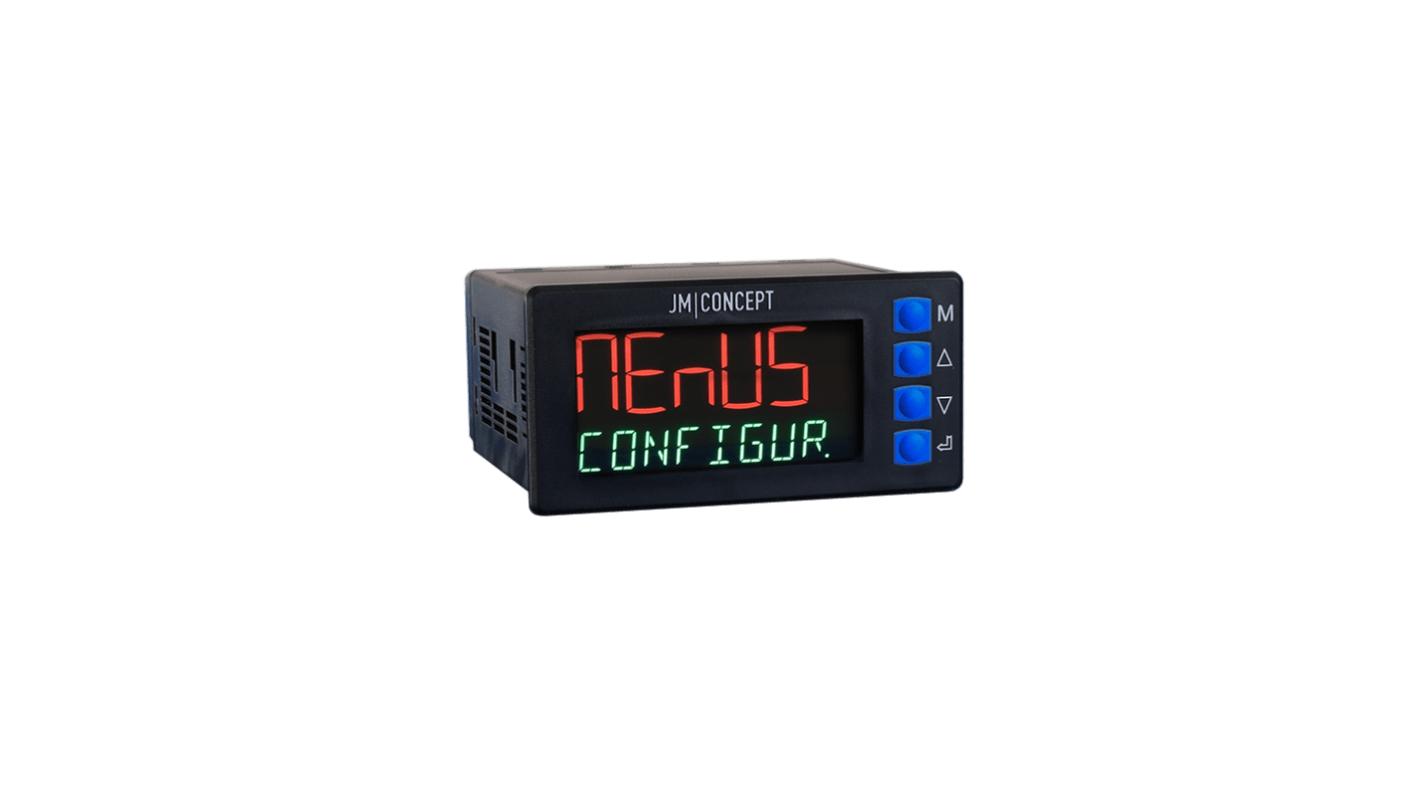

JM CONCEPT XALIS 9000 LCD Display, Two Color Digital Digital Panel Multi-Function Meter for Current, Potentiometer
- RS庫存編號:
- 231-3890
- 製造零件編號:
- XALIS9200U0
- 製造商:
- JM CONCEPT
- RS庫存編號:
- 231-3890
- 製造零件編號:
- XALIS9200U0
- 製造商:
- JM CONCEPT
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
The JM CONCEPT digital indicator comes with two-colour display allowing analogue and digital transmission of various signals. The flush-mount housing (IP65 48mm x 96mm x 85) equipped with plug-in connectors and a USB socket on the back. It comes with 1 universal input and 1 relay output. It supports RS485 USB communication.
Precision class 0,1
Input analogue / digital conversion 24 bits
Output analogue / digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <11.3VA
Input analogue / digital conversion 24 bits
Output analogue / digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <11.3VA
規格
Attribute | Value |
---|---|
Properties Measured | Current, Potentiometer Signals, Resistance, Temperature, Thermocouple, Voltage |
Display Type | LCD Display, Two Color Digital |
Cutout Height | 45mm |
Cutout Width | 92mm |
Depth | 85mm |
Number of Digits | 5 in Numeric, 9 in Alphanumeric |
Digit Height | 18 mm |
Supply Voltage | 22 → 240 V dc, 90 → 230 V ac |
Minimum Temperature | -10°C |
Maximum Temperature | +60°C |
Series | XALIS 9000 |
