Trumeter LCD Digital Panel Multi-Function Meter for Current, Frequency, Voltage, 68mm x 68mm

查看所有Multi Function Panel Meters

小計（1 件）*

HK$1,083.80

Add to Basket
選擇或輸入數量
有庫存
  • 21 件準備從其他地點送貨
  • 加上 10 件從 2025年12月16日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$1,083.80

* 參考價格

RS庫存編號:
231-4110
製造零件編號:
APM-M1-APO
製造商:
Trumeter
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Trumeter

Properties Measured

Current, Frequency, Voltage

Display Type

LCD

Cutout Height

68mm

Cutout Width

68mm

Depth

53mm

Number of Digits

4

COO (Country of Origin):
MY

APM-M1-APO

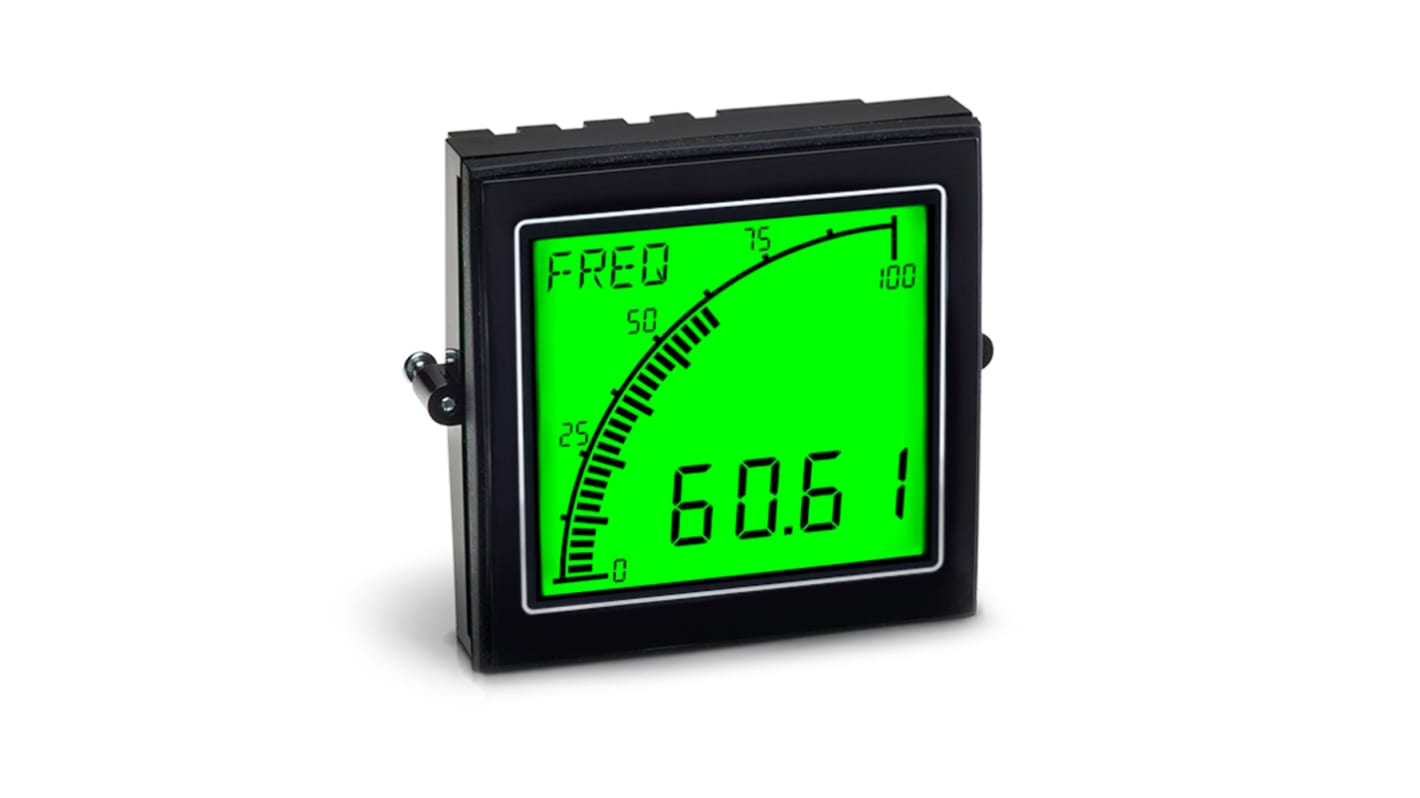

The APM (Advanced Panel Meter) M1 is a versatile 3-in-1 meter that can be configured to measure voltage, current, or frequency, making it suitable for a wide range of applications. It operates on 12-24V AC/DC power.

The unique display combines the readability of analogue with the precision of digital, with large readout, 40-segment bar graph, and colour-changing backlight that provides instant feedback on conditions. It is highly customizable through the free APM configuration software, including scale and range, alarms, colour changing, messaging and more. It features two independent outputs that can be used as digital (open collector) or analogue (4-20mA).

Combine the APM with the IoT Gateway to instantly unlock your data using the powerful remote monitoring platform, Trumeter Cloud. Monitor your meters anytime, anywhere with your free subscription, and receive data recording along with online, SMS, and email alerts.

The positive display, designed for bright environments, features black figures on a colour-changing background.

Features and Benefits


• 5A (AC/DC) direct input, 1% accuracy
• 2-400Hz input, 0.5% accuracy
• 0-600V (AC/DC) input, 1% accuracy
• 12-24V AC/DC PSU
• Fully user-configurable digital panel meter
• Scaling and range options including min. and max, offset and gain, x10 scaling factor, centre zero, 20-point non-linearization scaling and more.
• Dynamic colour-changing backlight - green, red, white
• Remote monitoring with Trumeter Cloud when used with Trumeter APM IoT Gateway
• 40-segment bar graph display
• Large, high contrast, anti-glare, LCD display with wide viewing angle
• Starburst display area for messages and alarm information
• 10 alarm setpoints & configurable digital output delay
• Two independent outputs as digital or analogue (4-20 mA)
• Wide viewing angle
• IP65 protection

For those requiring a 100-240V AC mains-powered option, see the APM M2 Meter.

Note


All Trumeter products come with a 3-year manufacturer's warranty
