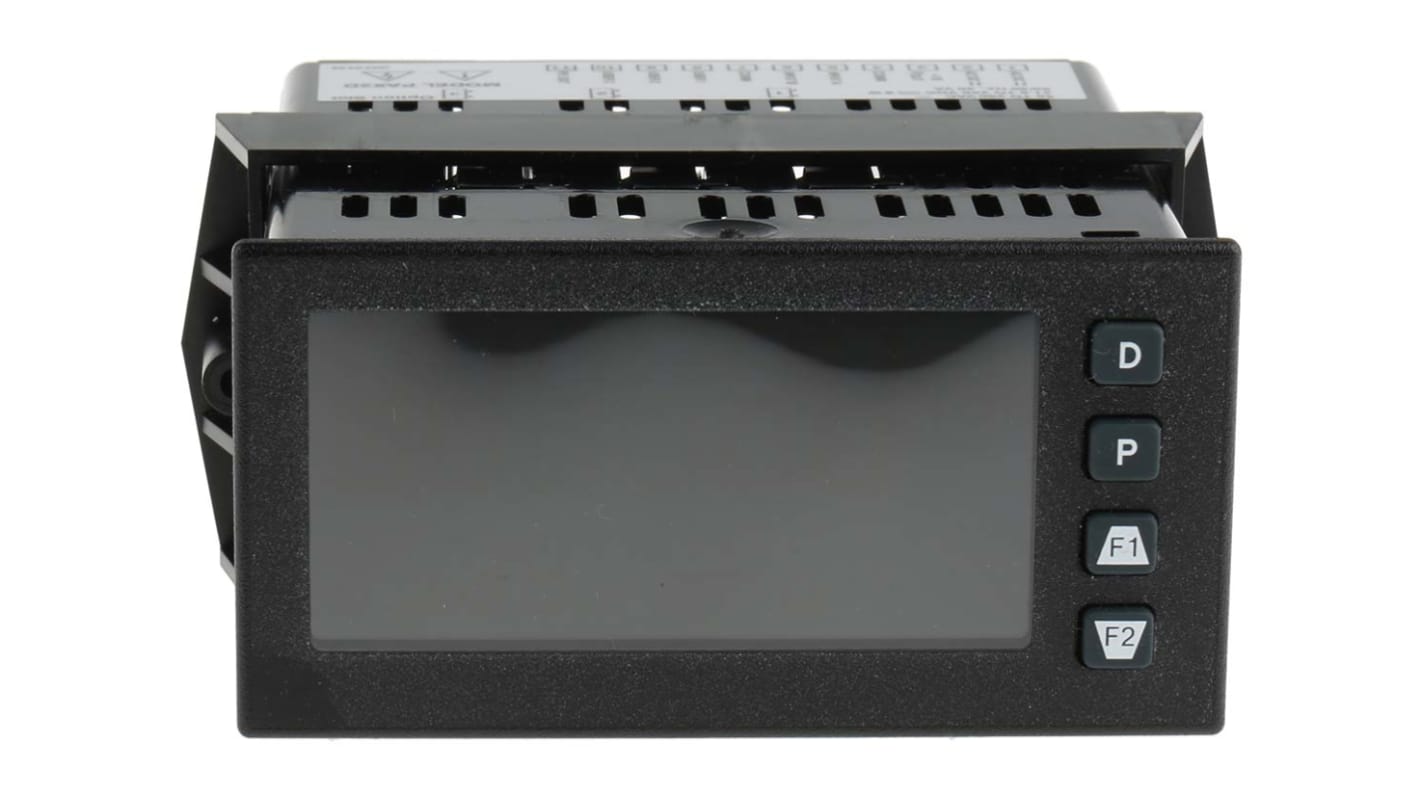

The PAX2D is a dual line digital input panel meter from Red Lion. It delivers an ideal solution for applications that require two parameters to be visualised at the same time. The colour change display on the meter provides the operator with a visual display of changing conditions in the application. The multi function meter also offers a programmable custom unit indicator for both displays.
• 6-digit (18 mm, top line) & 9-digit (8.9 mm, bottom line) • 3 programmable easy-to-red colours: red, orange and green • Count, dual count, rate and dual rate • Math function capability • Universal power supply: 50-250 V ac or 21.6-250 V dc • Built-in USB programming/virtual comms port • Setpoints: dual or quad relay: quad sinking or sourcing • Retransmitted analogue output
Red Lion
Attribute
Value
Display Type
LCD
Cutout Height
45mm
Cutout Width
92mm
Depth
150mm
Number of Digits
6 (Top), 9 (Bottom)
Digit Height
18 (Top) mm, 9 (Bottom) mm
Minimum Temperature
0°C
Maximum Temperature
+50°C
Measurement Range
-199999999 → 999999999h
Minimum Measurement
999999999h
Approvals
CE, Emission CISPR 11 Class B, EN 61010-1, EN 61326-1 Immunity to Industrial Locations, IEC, IP65, IP65 (Face Only), NEMA 4X, RoHS, Type 4X Indoor (Face Only), UL Recognized Component: File #E179259
