- RS庫存編號:
- 914-8505
- 製造零件編號:
- SWE-N55L-1111-0-9-001
- 製造商:
- Simex
- RS庫存編號:
- 914-8505
- 製造零件編號:
- SWE-N55L-1111-0-9-001
- 製造商:
- Simex
法例與合規
- COO (Country of Origin):
- PL
產品詳細資訊

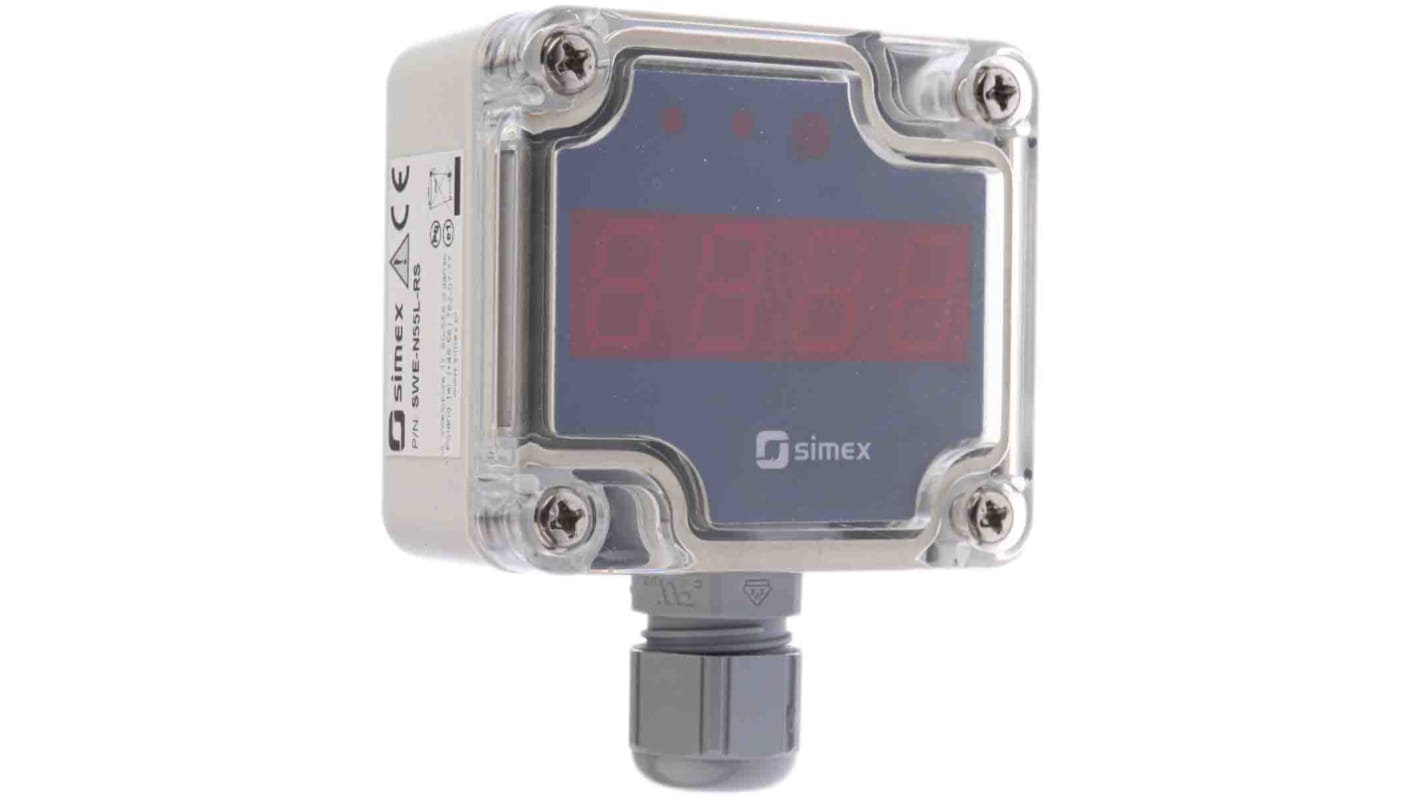

SWE-N55L Digital Loop-Powered Indicator
The SWE-N55L is a simple-to-use, loop-powered digital indicator with a single 4-20 mA current input which powers the device. The indicator allows you to select a conversion characteristic of several kinds: linear, square, square root and user defined. Results are shown on a 4-digit LED display. Values can be easily selected and range from -999 to 9999, plus decimal point.
• 4-digit (13 mm) LED display
• Loop-powered
• Small, wall-mounted casing
• 4-20 mA measurement input
• Optional alarm output available
• Peak values detection
• Configuration done by IR remote controller
• IP65 protection
• Loop-powered
• Small, wall-mounted casing
• 4-20 mA measurement input
• Optional alarm output available
• Peak values detection
• Configuration done by IR remote controller
• IP65 protection
Simex Multi function Meters
規格
Attribute | Value |
---|---|
Properties Measured | Current |
Display Type | LED |
Number of Digits | 4 |
Depth | 36mm |
Digit Height | 13 mm |
Minimum Temperature | 0°C |
Maximum Temperature | +50°C |
Measurement Range | 4 → 20mA |
Minimum Measurement | 4 mA |
Approvals | CE |
Meter Type | Digital |
