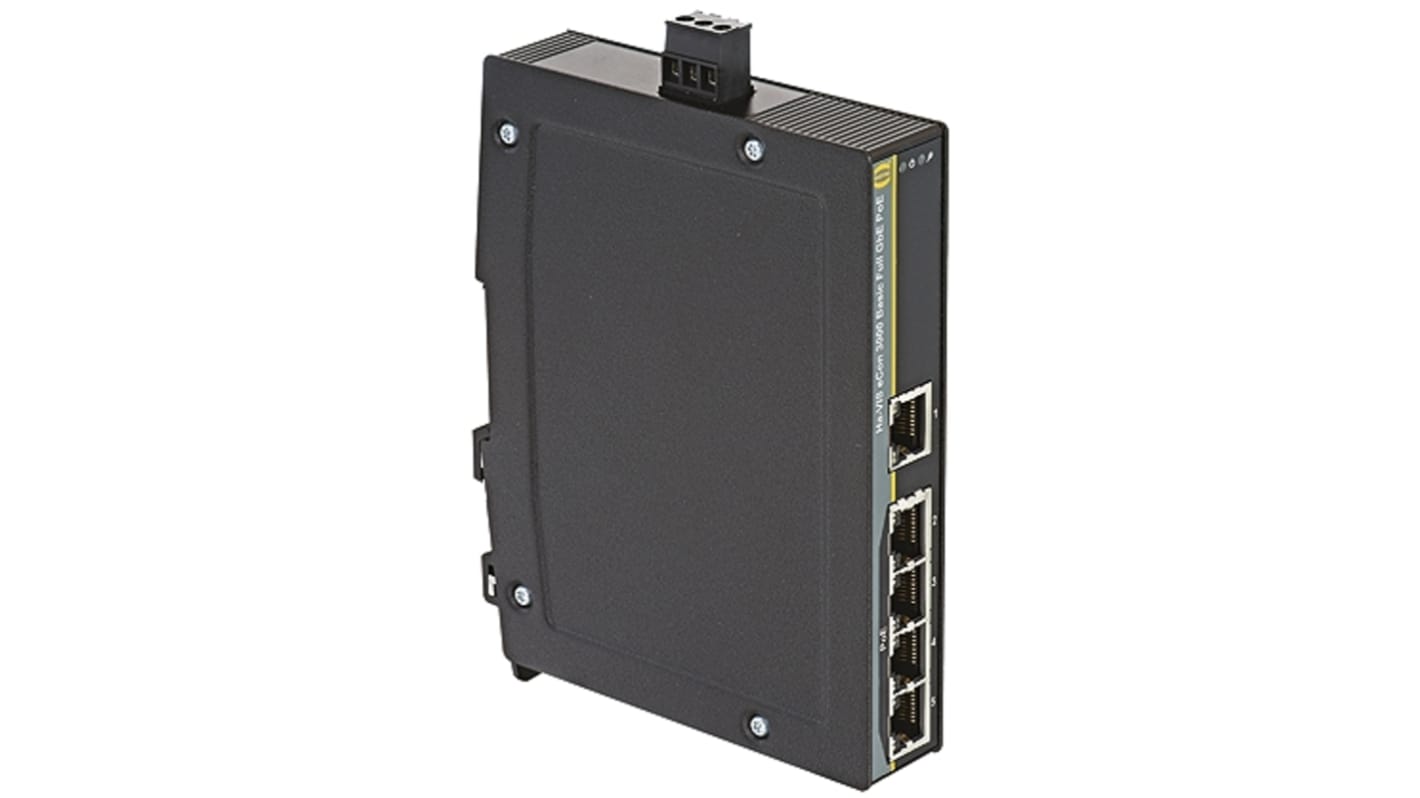

The HARTING RJ45 5-port DIN rail mount Ethernet switch. It has an electrical rating of 24VDC to 48VDC. The Ha-VIS eCon 3000 series full Gigabit family of unmanaged Ethernet Switches offer a plug & play solution for DIN rail mounted connectivity. It is the slender construction and frontal port mounting of the switches, allowing for installation into space-restricted or hard-to-reach applications.
Features and Benefits
Switches work as power sourcing equipment (PSE) and can supply up to 4 terminal devices via PoE+ (34.2W per port) RJ45 transfer length of 100m via twisted pair Cat. 5 with a 10/100 Mbit/s transfer rate SC Duplex ports provide a transfer speed of 100Mbits/s with a range of 2KM (Multimode) and 15KM (Single Mode) Energy-efficient Ethernet greatly reduces consumption Non-Blocking full Ethernet Switching architecture, in accordance with IEEE 802.3 Auto-Negotiation, auto-polarity and auto-MDI(X) provide the user with a plug & play solution Supports extra-long Ethernet frames (Jumbo frames) Fibre-optic (SC Duplex) configuration options available Reverse polarity & surge protection Anodised Aluminium housing with powder-coated steel sheet Optimised DIN rail bracket for a secure installation Available without PoE/PoE+
Applications
Industrial network infrastructure Machinery & Robotics Automation Transportation Wind & Solar energy Shipbuilding
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
