WIZnet Inc WIZ120SR Networking Module, 10/100 Ethernet, RS232, Serial
- RS庫存編號:
- 177-5521
- 製造零件編號:
- WIZ120SR
- 製造商:
- WIZnet Inc
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Networking Modules
法例與合規
- COO (Country of Origin):
- KR
產品詳細資訊

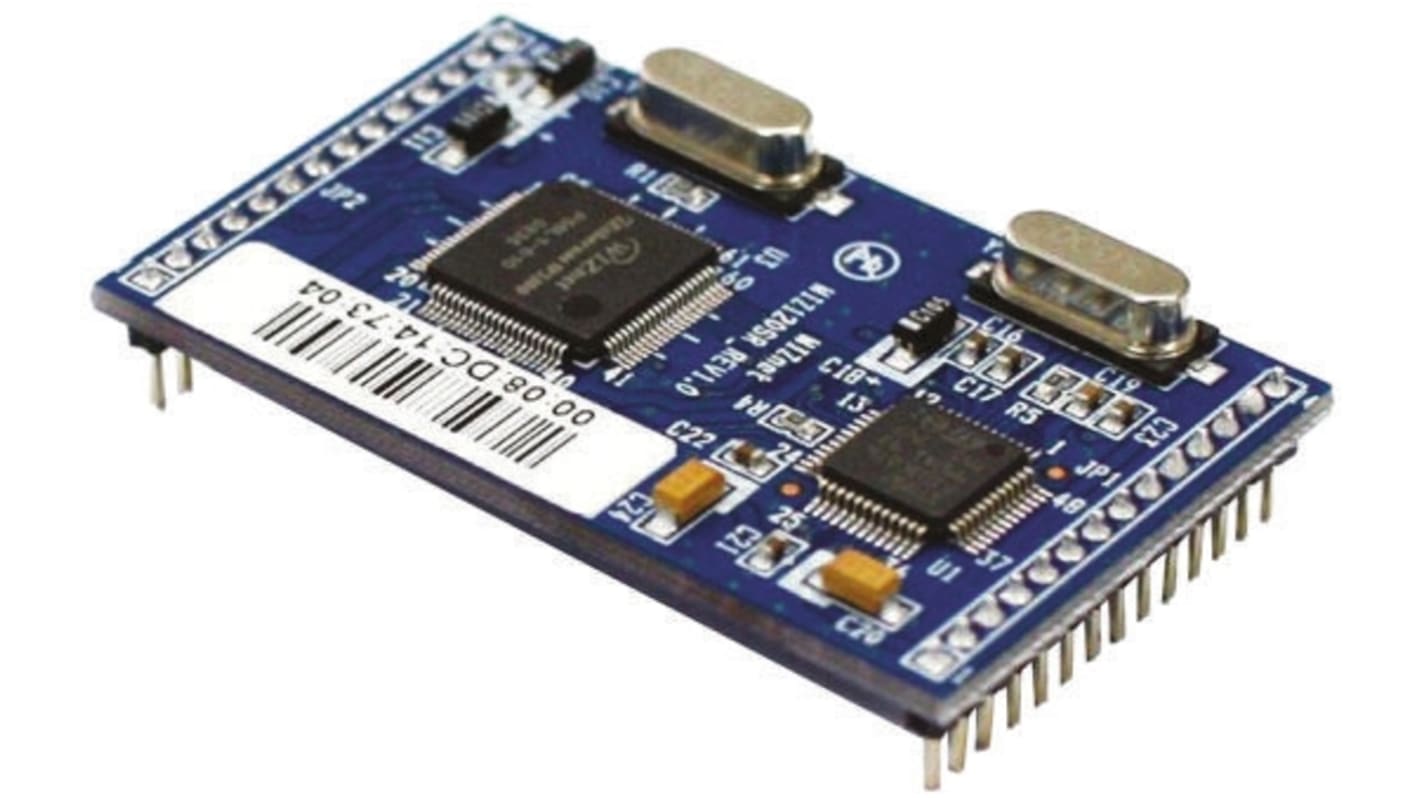

WIZ120SR 2-port Serial-to-Ethernet Gateway Module
Direct Connection to Serial Devices that Adds Network Function in a Simple and Quick way, and Provide Firmware Customization
High stability & reliability by using W5100
Easy & Powerful configuration program
Support 2 Serial Ports
Support DHCP, PPPoE and DNS
Support PPPoE Connection for ADSL
Support static as well as dynamic IP setting
Support Password for the Security
10/100 Mbps Ethernet Interface, 230Kbps Serial Interface
High stability & reliability by using W5100
Easy & Powerful configuration program
Support 2 Serial Ports
Support DHCP, PPPoE and DNS
Support PPPoE Connection for ADSL
Support static as well as dynamic IP setting
Support Password for the Security
10/100 Mbps Ethernet Interface, 230Kbps Serial Interface
規格
| Attribute | Value |
| Supported Network Interfaces | 10/100 Ethernet, RS232, Serial |
| Supported Bus Interfaces | UART |
| Supply Voltage | 3.3V |
| Dimensions | 30 x 50 x 8.85mm |
| Height | 8.85mm |
| Length | 50mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | -20 °C |
| Width | 30mm |
此產品已停售
