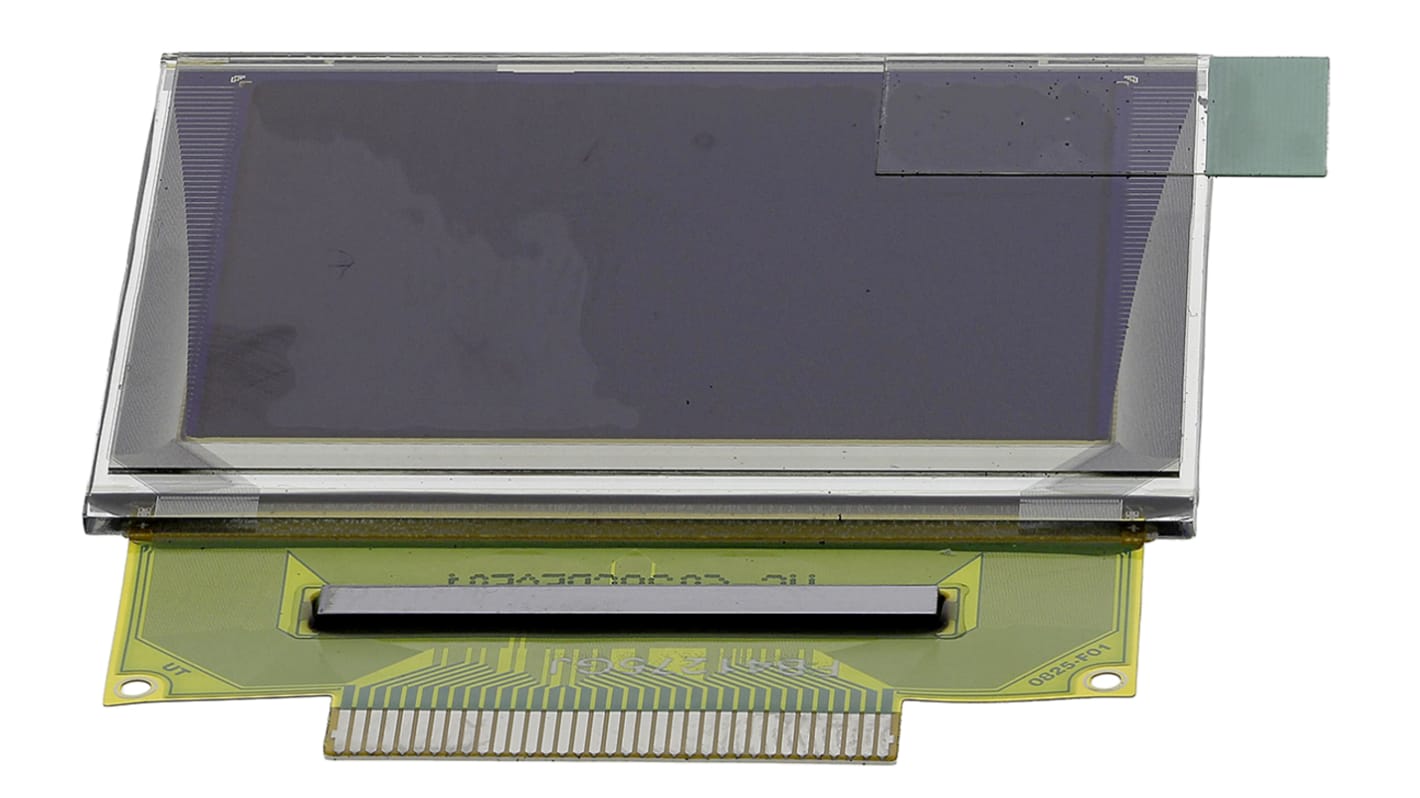

Univision 1.6in Blue, Green, Red Passive matrix OLED Display 160 x 128pixels SPI Interface
- RS庫存編號:
- 170-1814
- 製造零件編號:
- DD-160128FC-1A
- 製造商:
- Univision
此產品已停售
- RS庫存編號:
- 170-1814
- 製造零件編號:
- DD-160128FC-1A
- 製造商:
- Univision
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
---|---|---|
品牌 | Univision | |
Diagonal Display Size | 1.6in | |
Viewing Area Dimensions | 30.78 x 25.02mm | |
Matrix Type | Passive | |
Display Colours | Blue, Green, Red | |
Resolution | 160 x 128pixels | |
Contrast Ratio | >1000:1 | |
Interface Ports | SPI | |
Dimensions | 30.8 x 35.8 x 1.7mm | |
Depth | 1.7mm | |
Touch Screen Type | None | |
Height | 30.8mm | |
Maximum Operating Temperature | +70°C | |
Viewing Area Width | 30.78mm | |
Operating Temperature Range | -30 → +70°C | |
Viewing Area Height | 25.02mm | |
Width | 35.8mm | |
Forward Voltage | 3.3 V dc | |
Minimum Operating Temperature | -30°C | |
選取全部 | ||
---|---|---|
品牌 Univision | ||
Diagonal Display Size 1.6in | ||
Viewing Area Dimensions 30.78 x 25.02mm | ||
Matrix Type Passive | ||
Display Colours Blue, Green, Red | ||
Resolution 160 x 128pixels | ||
Contrast Ratio >1000:1 | ||
Interface Ports SPI | ||
Dimensions 30.8 x 35.8 x 1.7mm | ||
Depth 1.7mm | ||
Touch Screen Type None | ||
Height 30.8mm | ||
Maximum Operating Temperature +70°C | ||
Viewing Area Width 30.78mm | ||
Operating Temperature Range -30 → +70°C | ||
Viewing Area Height 25.02mm | ||
Width 35.8mm | ||
Forward Voltage 3.3 V dc | ||
Minimum Operating Temperature -30°C | ||
