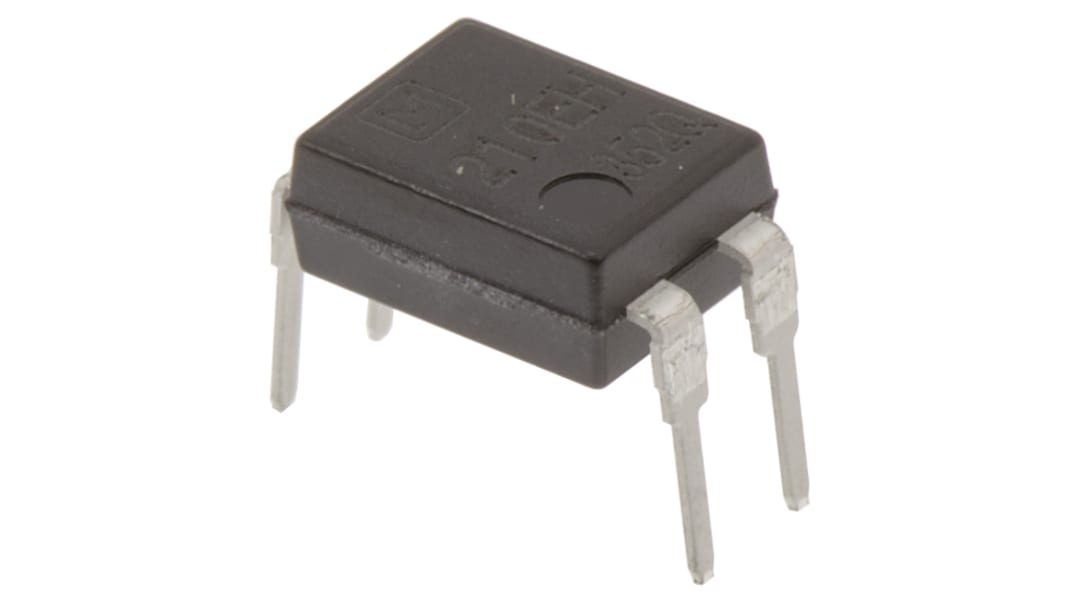

    Panasonic, AQY210EH DC Input MOSFET Output Optocoupler, Through Hole, 4-Pin DIP

    RS庫存編號:
    352-5467
    製造零件編號:
    AQY210EH
    製造商:
    Panasonic
    Panasonic
    查看所有Optocouplers
    621 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    原價 HK$20.60

    您付款

    HK$16.50

    單位Per unit
    1 - 14HK$16.50
    15 - 49HK$16.00
    50 - 99HK$15.50
    100 - 199HK$15.17
    200 +HK$14.84
    RS庫存編號:
    352-5467
    製造零件編號:
    AQY210EH
    製造商:
    Panasonic

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

    AQY SSR


    These PCB mount DIP4-pin solid state relays are of the flat packaged type with dimensions of 9.3x8.8x3.9mm. These PCB solid state relays also have high senstivity and a low on-resistance. Typical applications include the controls of various types of loads such as test and measurement equipment, data communications, power supplies sensors etc.

    Various 4 pin DIP or SMT packages
    Highly sensitive and low on resistance
    Low level off state leakage current
    Operating temperature range of -40 to +85°C
    Controls various types of loads such as test and measurement equipment, data communications, power supplies sensors etc

    Approvals

    UL Recognised for Canada & US

    規格

    AttributeValue
    Mounting TypeThrough Hole
    Output DeviceMOSFET
    Maximum Forward Voltage1.5V
    Number of Pins4
    Package TypeDIP
    Input Current TypeDC
    Maximum Input Current50 mA
    Isolation Voltage5 kVrms
