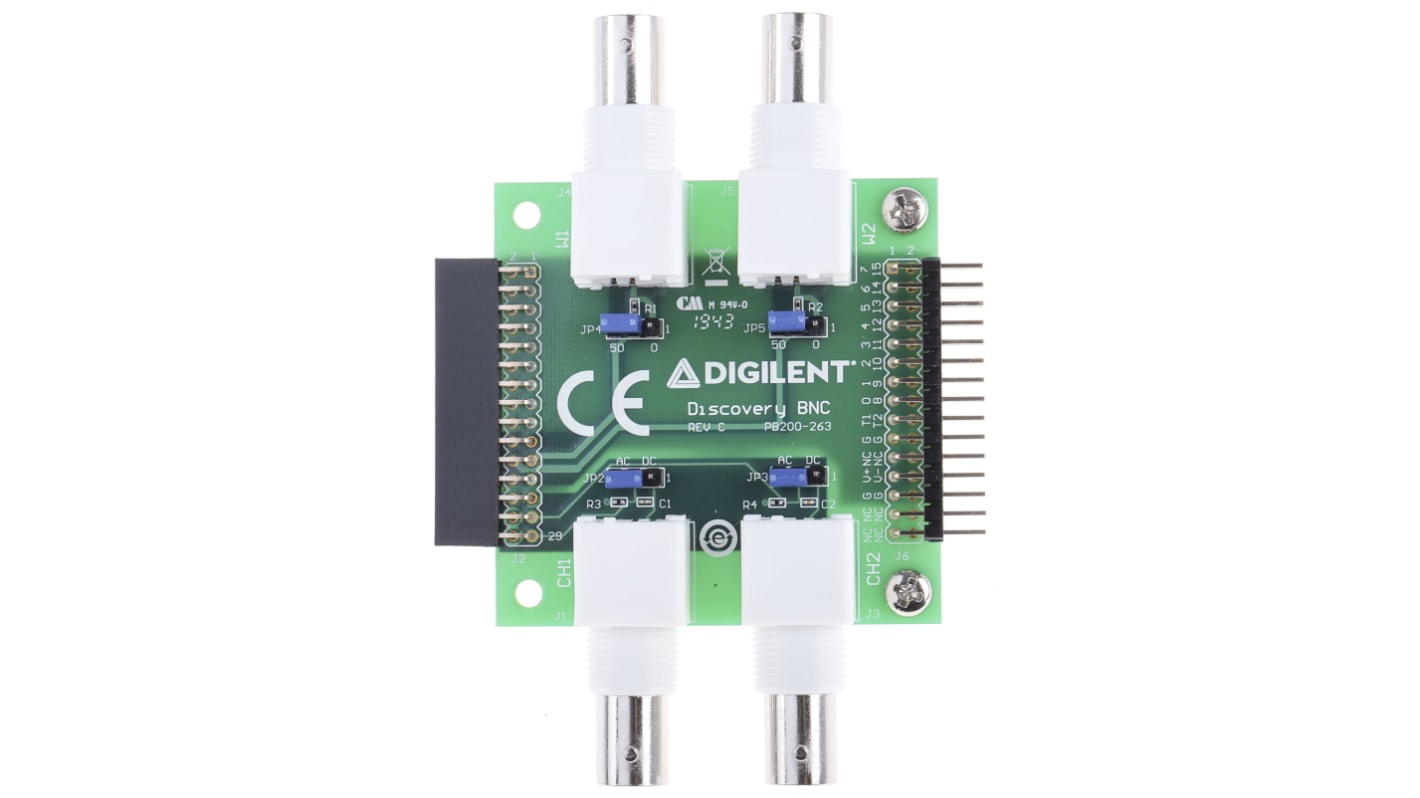

Digilent Oscilloscope Adapter BNC Adapter Board, Model 410-263 for use with Analog Discovery 2

  • RS庫存編號 134-6460
  • 製造零件編號 410-263
  • 製造商 Digilent
產品概覽和技術數據資料表
法例與合規
相容
產品詳細資訊

Discovery 2 USB PC Multi-Function Instrument

The Analogue Discovery 2 is a USB oscilloscope and multi-function instrument that allows users to measure, generate, record and control mixed-signals of all kinds. The optional Discovery BNC Adapter Board provides standard BNC probe connections. Discovery 2 is aimed at engineering students, hobbyists and electronics enthusiasts who can download tutorials and other information from: https://reference.digilentinc.com/reference/instrumentation/analog-discovery-2/start

• 2-channel PC USB 14-bit 100Msps Digital Oscilloscope
• 2-channel 14-bit 100Msps Arbitrary Function Generator
• Stereo audio headphone/speaker amplifier
• 16-channel 100Msps Digital Logic Analyzer
• 16-channel 100Msps Pattern Generator
• 16-channel Virtual Digital I/O including buttons, switches and LEDs
• 2 x I/O Digital Trigger signals for linking multiple instruments
• Single-channel AC/DC Voltmeter
• Network Analyzer: 1Hz to 10MHz Bode, Nyquist, Nichols transfer diagrams
• Spectrum Analyzer: Power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.)
• Digital Bus Analyzers for SPI, I²C, UART and Parallel ports
• 2 x Programmable Power Supplies (0 to +5V, 0 to -5V)
• WaveForms 2015 (Mac, Linux and Windows Compatible) software

RS Product Codes

134-6480 410-321 Analogue Discovery 2 Instrument Kit
134-6460 410-263 Analogue Discovery BNC Adapter Board

Supplied with

Discovery 2 Kit: Project box, USB cable, 2 x 15 flywire signal cable assembly, 5-pack of 6-pin male headers, ferrite cable snap-on

規格
Attribute Value
Adapter Type BNC Adapter Board
For Use With Analog Discovery 2
Model Number p 410-263
127 現貨庫存,可於3工作日發貨。
單價 個
HK$ 151.19
(不含稅)
單位
Per unit
1 +
HK$151.19
