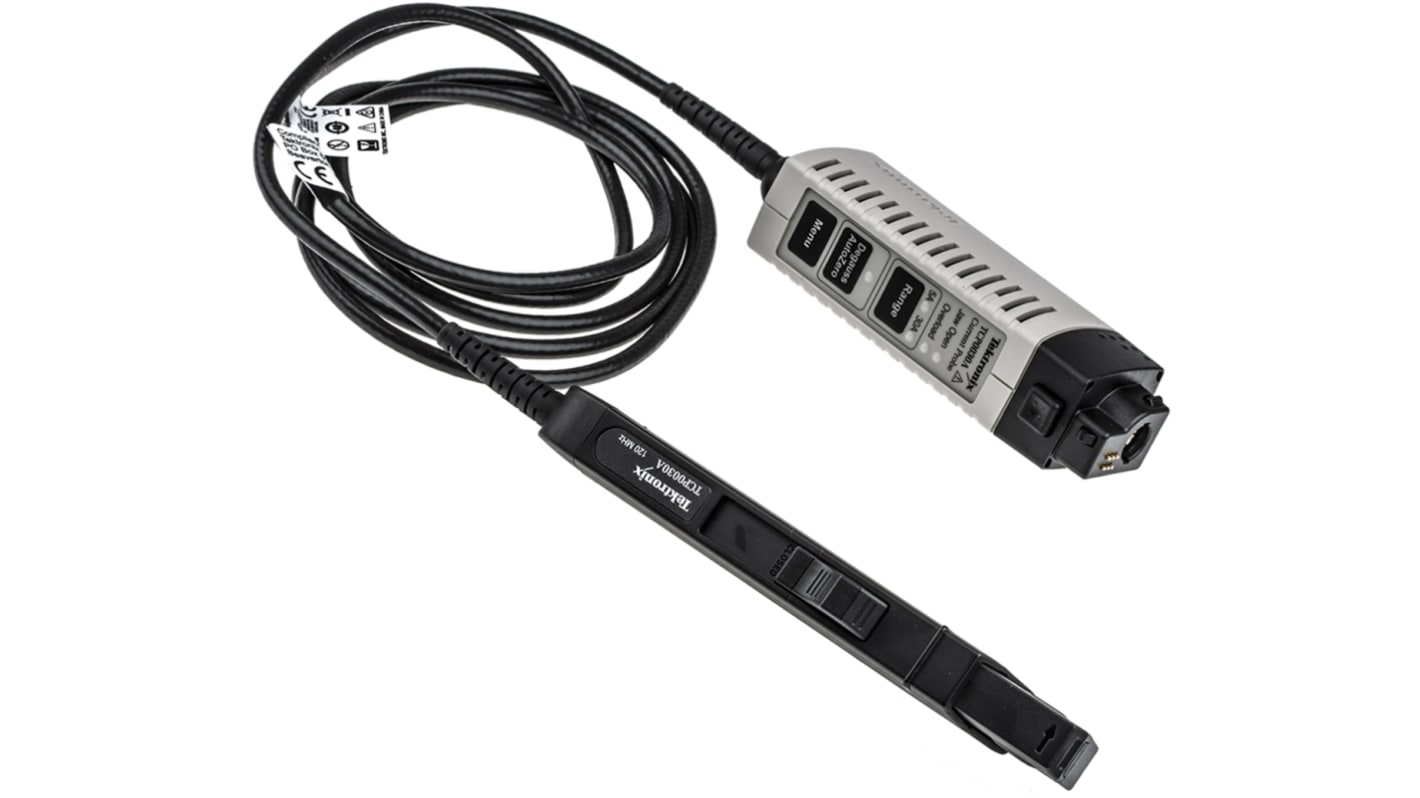

The TCP0030A Tektronix current oscilloscope probe is designed for direct connection to oscilloscopes with the probe interface. This easy-to-use AC/DC current measurement probe provides bandwidth greater than 120MHz with selectable 5A and 30A measurement ranges. It also provides exceptional low current measurement capability and accuracy to current levels as low as 1mA. The probe combines Hall-effect technology with the Tektronix TekVPI oscilloscope interface.
Features and Benefits
Bandwidth is DC to 120MHz AC/DC measurement capability 5A and 30A range settings Rise time is 2.92ns Maximum DC and RMS current is 30A Maximum peak pulse voltage 50A Maximum Input voltage is 150V CAT II (insulated wire 300 V CAT II) Split-core construction allows easy circuit connection Typically less than 1% DC gain error Low noise and DC drift One button degauss/autozeroing - easy Degauss and Autozero set-up controls and probe status/diagnostic indicators on probe hardware and via oscilloscope UI display menu Probe head (LxWxH) – 200x16x32 mm Cable length – 200 cm Maximum conductor size – 5 mm
Intelligent communication with TekVPI™ oscilloscopes provides: - Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual set-up is not required Hand calculation from volts to amps is unnecessary - Push button degauss and Autozero functionality - Probe status and diagnostic indicator LEDs - Remote GPIB/USB probe control
Applications
Power supply design Design motor drive Electronic ballast Power semiconductors Switch mode control UPS systems Power converters Mobile communications Motor drives Industrial/consumer electronics
