- RS庫存編號:
- 144-8228
- 製造零件編號:
- RTH-K34
- 製造商:
- Rohde & Schwarz
- RS庫存編號:
- 144-8228
- 製造零件編號:
- RTH-K34
- 製造商:
- Rohde & Schwarz
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CZ
產品詳細資訊

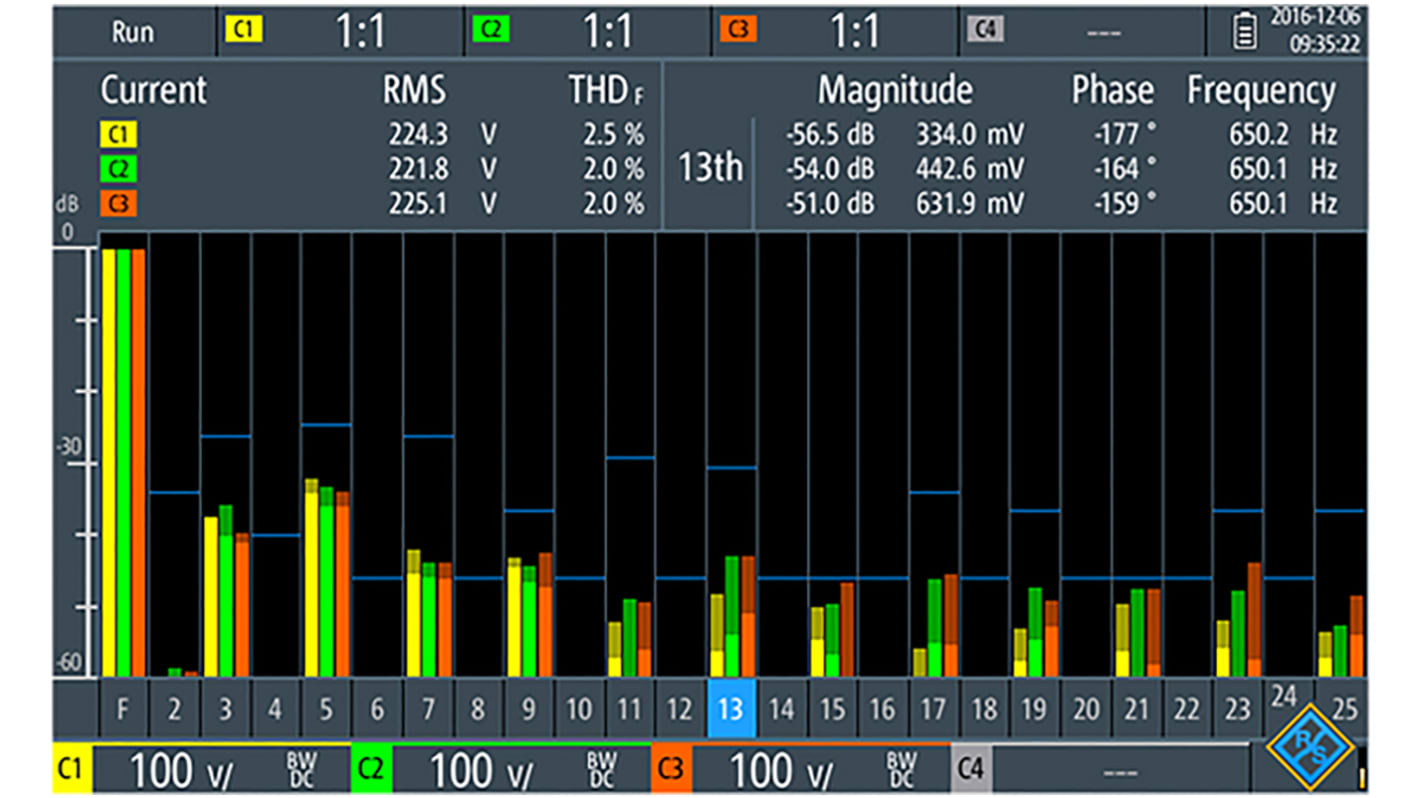

R&S® RTH-K34 Harmonics Analysis
Harmonic analysis function for R and S RTH1002 and R and S RTH1004 (unregistered license)
Features
• Harmonic Analysis Function
• For RTH1002 and RTH1004
• Parallel automatic measurements of up to 64 harmonics above 4 oscilloscope channels
• Displays the current component of each harmonic and also display the maximum of each harmonic since measuring commenced
• Selection of the respective fundamental frequency: 50 Hz, 60 Hz, 400 Hz and input application-specific fundamental frequencies up to 1 kHz
• Automatic measurements of THDF and THDR
• Automatic measurements of amplitude, phase and frequency of each harmonic
• Test against limits according to the standard EN50160 or to application-specific requirements
Rohde & Schwarz Scope Rider Handheld Digital Oscilloscope System
規格
Attribute | Value |
---|---|
Accessory Type | Harmonics Analysis |
For Use With | RTH Handheld Digital Oscilloscope |
