- RS庫存編號:
- 175-0003
- 製造零件編號:
- WS510-EMB
- 製造商:
- Teledyne LeCroy
此產品已停售
- RS庫存編號:
- 175-0003
- 製造零件編號:
- WS510-EMB
- 製造商:
- Teledyne LeCroy
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊
LeCroy Oscilloscope Software

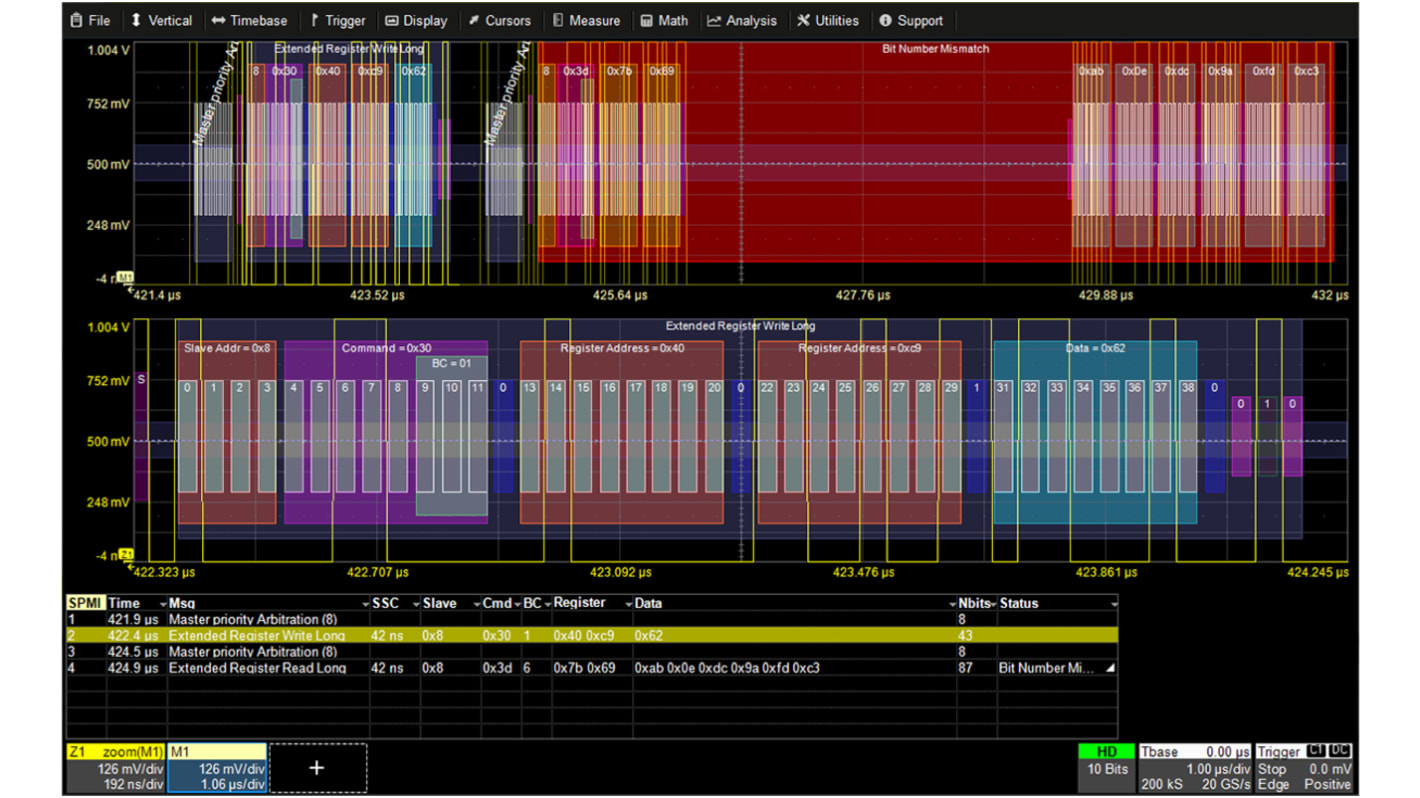

The LeCroy is a serial trigger and decodes embedded bundle used for WaveSurfer 510 oscilloscopes. The minimum software requirement for this is Microsoft Windows embedded standard 7 with 64 bit. This unique serial trigger and decode package consists of I2C, SPI, UART and RS-232 interfaces. The I2C trigger permits triggering on data in a specific location up to 2048 byte. The UART or SPI bytes can be combined into a single "message frame" - trigger on custom protocols based on UART or SPI byte blocks. It supports 9-bit "address" or "wakeup" mode triggering.
Features and Benefits
No need to display clock trace during decode
Use analogy or digital (MSO) inputs for acquisition and triggering
EXT input may be used for clock signal
Intuitive, color-coded decode overlays
Use analogy or digital (MSO) inputs for acquisition and triggering
EXT input may be used for clock signal
Intuitive, color-coded decode overlays
Applications
Science and engineering
Medicine
Automotive industry
Laboratory work
Telecom industry
Medicine
Automotive industry
Laboratory work
Telecom industry
規格
Attribute | Value |
---|---|
Accessory Type | Serial Trigger and Decode Software |
For Use With | WaveSurfer 510 Oscilloscope |
Minimum Software Requirement | Microsoft Windows Embedded Standard 7 64-Bit |
