- RS庫存編號:
- 251-8086
- 製造商:
- RS PRO
1900 將在 1 工作日發貨 (本地庫存)
32825 在3 工作日內發貨 (海外庫存)
已增加
單價 个(每托盘 25 )
HK$1.132
單位 | Per unit | Per Pack* |
25 - 350 | HK$1.132 | HK$28.30 |
375 - 1225 | HK$1.108 | HK$27.70 |
1250 - 2475 | HK$1.074 | HK$26.85 |
2500 - 12475 | HK$1.048 | HK$26.20 |
12500 + | HK$0.862 | HK$21.55 |
* 參考價格 |
- RS庫存編號:
- 251-8086
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TW
產品詳細資訊

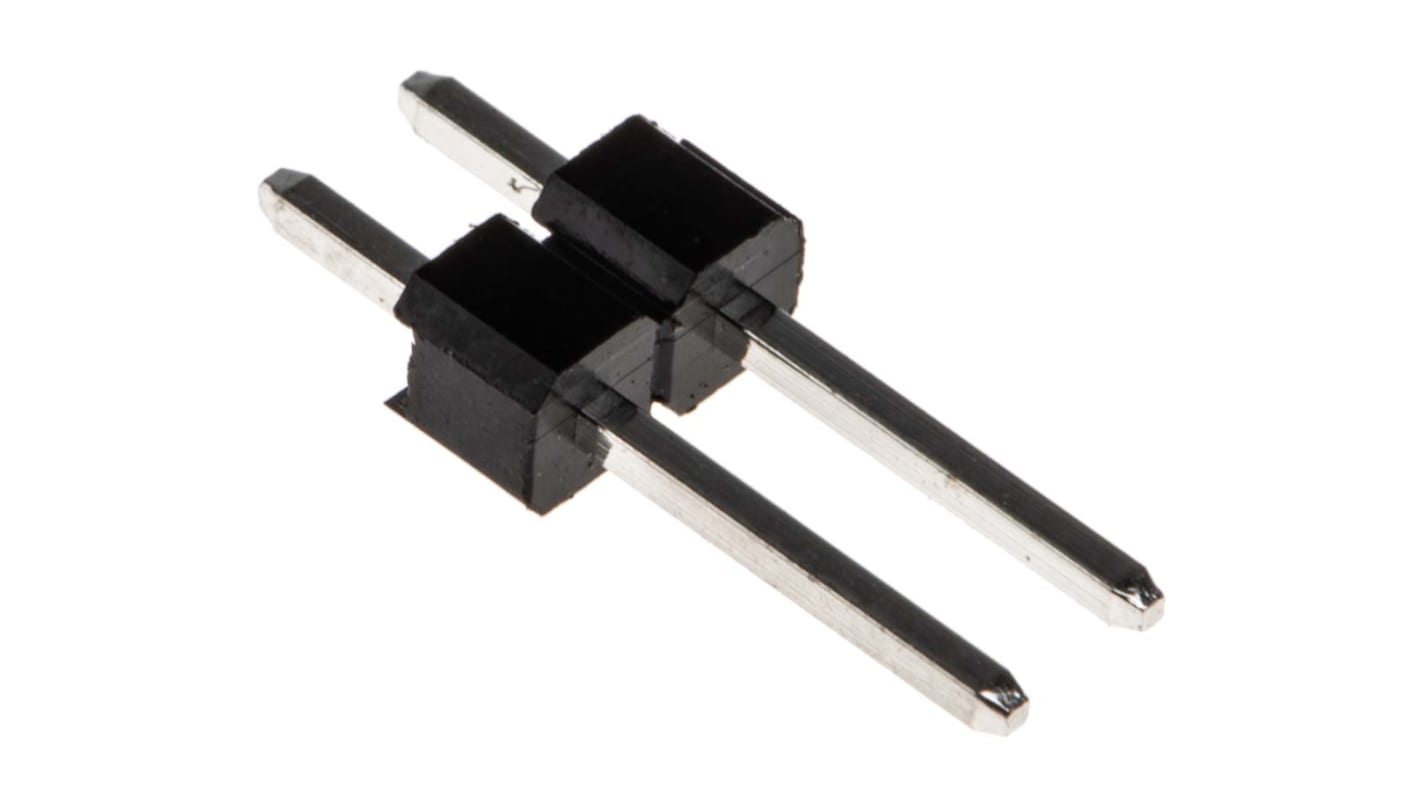

Straight headers (7mm)
Single and double row 0.1in. pitch tin plate headers offered on one of the most popular pin heights of 7mm. Suitable for board to board applications using corresponding top entry sockets or wire-wrap or programming applications.
Features and Benefits:
• Current rating of 1A
• Can be snapped to get your desired length
• 0.64mm square pins for general universal connections
• PCB Headers are brilliant for prototyping & permanent solutions
• Faster and efficient of connecting boards and wires.
• 7mm pin height
• Can be snapped to get your desired length
• 0.64mm square pins for general universal connections
• PCB Headers are brilliant for prototyping & permanent solutions
• Faster and efficient of connecting boards and wires.
• 7mm pin height
Need different sizes?
Dimensions are AxB (Above x Below)
Size 1: 251-8301, 251-8373 3.0mm x 4.6mm
Size 2: 251-8317, 251-8389 4.3mm x 2.7mm
Size 3: 251-8339, 251-8395 5.7mm x 7.6mm
Size 4: 251-8345, 251-8402 5.7mm x 12.7mm
Size 5: 251-8632, 251-8648 7.0mm x 3.0mm
Size 6: 251-8351, 251-8418 12.7mm x 3.1mm
Size 7: 251-8367, 251-8424 14.7mm x 2.9mm
Size 1: 251-8301, 251-8373 3.0mm x 4.6mm
Size 2: 251-8317, 251-8389 4.3mm x 2.7mm
Size 3: 251-8339, 251-8395 5.7mm x 7.6mm
Size 4: 251-8345, 251-8402 5.7mm x 12.7mm
Size 5: 251-8632, 251-8648 7.0mm x 3.0mm
Size 6: 251-8351, 251-8418 12.7mm x 3.1mm
Size 7: 251-8367, 251-8424 14.7mm x 2.9mm
2.54mm PCB Connector RS Range
A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
