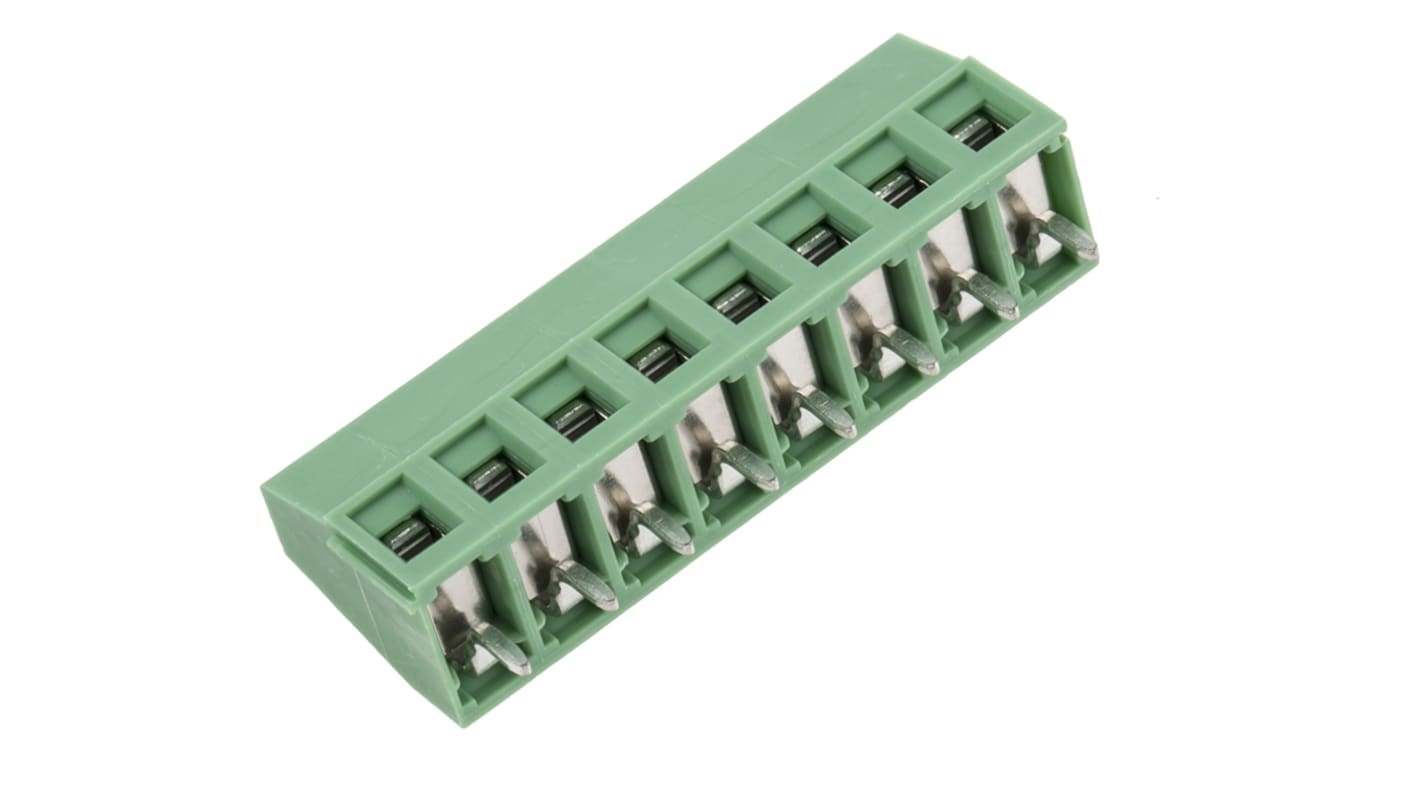

Phoenix Contact MKDS 1.5/ 8-5.08 Series PCB Terminal Block, 8-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw
- RS庫存編號:
- 648-7863
- 製造零件編號:
- 1715789
- 製造商:
- Phoenix Contact
單價 个
HK$31.10
167 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
單位 | 每單位 |
|---|---|
| 1 - 74 | HK$31.10 |
| 75 - 399 | HK$30.20 |
| 400 + | HK$29.00 |
- RS庫存編號:
- 648-7863
- 製造零件編號:
- 1715789
- 製造商:
- Phoenix Contact
- COO (Country of Origin):
- DE
Phoenix Contact PCB Terminal Block, Linear Pin Layout, 4kV Rated Surge Voltage - MKDS 1,5/ 8-5,08 - 1715789
Need a safe way to send signals from cables to your circuit board? Go for this PCB terminal block from Phoenix Contact. Its copper contacts are highly conductive, giving you a reliable connection. The durable PA housing comes in standard green for easy identification and doubles as insulation to protect you from contact with live parts. This reduces the risk of electric shocks and boosts workplace safety.
Wave soldering gives you a secure link to your circuit board, which holds firm even in vibrating systems. The unit's 17.5A current rating makes it the right choice for medium-duty applications. To prevent short circuits, it has a pitch of 5.08mm between its contacts so they don't touch each other. Screw terminals make it easy to link wires to the block, as all you need is a simple screwdriver. You'll find devices like this used in the telecommunications industry.
Wave soldering gives you a secure link to your circuit board, which holds firm even in vibrating systems. The unit's 17.5A current rating makes it the right choice for medium-duty applications. To prevent short circuits, it has a pitch of 5.08mm between its contacts so they don't touch each other. Screw terminals make it easy to link wires to the block, as all you need is a simple screwdriver. You'll find devices like this used in the telecommunications industry.
Features & Benefits
• Accommodates wire sizes ranging between 26 and 14AWG for versatility
• Contacts are tin-plated for corrosion resistance, ensuring long-term service
• UL 94-V0 rating shows it's flame resistant as it stops burning in 10 seconds or less in the event of a fire
• Contacts are tin-plated for corrosion resistance, ensuring long-term service
• UL 94-V0 rating shows it's flame resistant as it stops burning in 10 seconds or less in the event of a fire
Approvals
UL, CSA
Phoenix Contact COMBICON 5.08mm PCB Terminal Blocks
High quality PCB mount screw terminals available in vertical, 55° entry or double level mouldings. Standard, low profile and high current versions are all available on either 2 way or 3 way housings, side stackable up to 30 way. All standard and low profile versions accept conductors up to 1.5mm², while the high current versions take conductors up to 4mm². The range incorporates copper alloy clamping parts, offering continuously reliable screw connection, designed so that copper conductors can be clamped without pre-treatment. Marking labels are also available to aid terminal identification.
Robust rising clamp technology
Voltage Rating 250V
High copper content (>85%) provides outstanding corrosion resistance, low contact resistance and virtually eliminates thermal expansion
Large 3mm copper alloy screws
Voltage Rating 250V
High copper content (>85%) provides outstanding corrosion resistance, low contact resistance and virtually eliminates thermal expansion
Large 3mm copper alloy screws
Approvals
UL (E60425); CSA (LR13631)
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Pitch | 5.08mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Female |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 22A |
| Body Orientation | Straight |
| Colour | Green |
| Voltage Rating | 250 V |
| Series | MKDS 1.5/ 8-5.08 |
| Material | Polyamide |
| Width | 9.8mm |
| Depth | 13.8mm |
| Length | 40.64mm |
