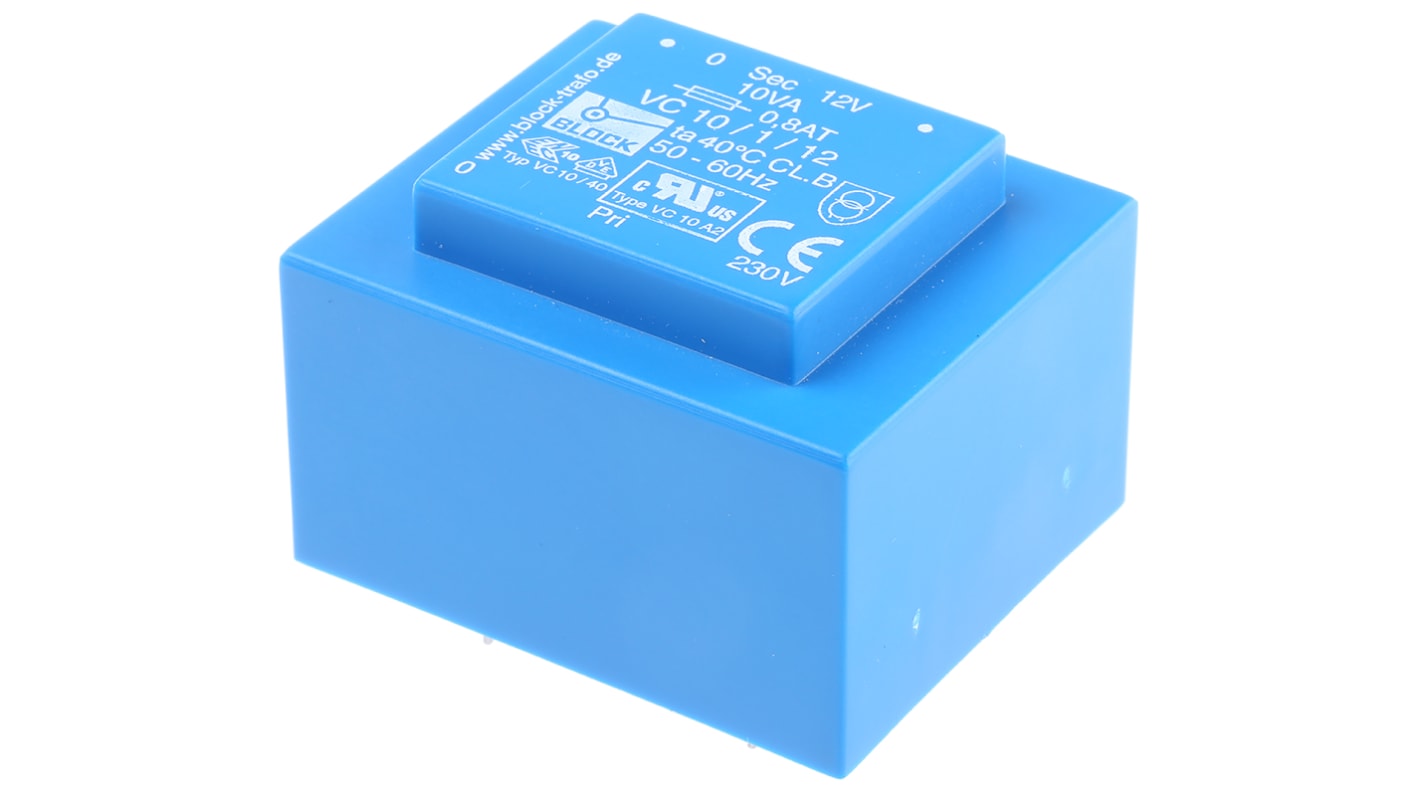

Block 12 V ac 1 Output Through Hole PCB Transformer, VDE, UL 10 VA

RS庫存編號:: 732-0430
製造零件編號:: VC 10/1/12
製造商:: Block

Block 12 V ac 1 Output Through Hole PCB Transformer, VDE, UL 10 VA

可享批量折扣

小計（1 件）*

HK$116.90

訂單超過 HK$250.00 免費送貨

暫時缺貨

14 件從 2026年3月09日起裝運發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$116.90
10 - 24	HK$114.90
25 - 49	HK$112.20
50 +	HK$109.50

* 參考價格

RS庫存編號:: 732-0430
製造零件編號:: VC 10/1/12
製造商:: Block

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Block
	Product Type	PCB Transformer
	Secondary Voltage	12 V ac
	Primary Voltage	230 V ac
	Number of Outputs	1
	Length	51mm
	Width	43 mm
	Depth	34.6mm
	Power	10VA
	Weight	280g
	Mount Type	Through Hole
	Number of Pins	6
	Winding Type	Single Primary, Single Secondary
	Maximum Operating Temperature	40°C
	Efficiency	74%
	Minimum Operating Frequency	50Hz
	Standards/Approvals	VDE, UL
	Maximum Operating Frequency	60Hz

	選取全部
	品牌 Block
	Product Type PCB Transformer
	Secondary Voltage 12 V ac
	Primary Voltage 230 V ac
	Number of Outputs 1
	Length 51mm
	Width 43 mm
	Depth 34.6mm
	Power 10VA
	Weight 280g
	Mount Type Through Hole
	Number of Pins 6
	Winding Type Single Primary, Single Secondary
	Maximum Operating Temperature 40°C
	Efficiency 74%
	Minimum Operating Frequency 50Hz
	Standards/Approvals VDE, UL
	Maximum Operating Frequency 60Hz

PCB mount transformer 10VA 1x12 o/p

COO (Country of Origin):: DE

PCB Mount 230Vac Primary VC/VCM Series

Single and twin secondary windings for series or parallel connection

Vacuum resin moulded to UL94-V0 rating

Low inter-winding capacitance

Low radiated noise

100% electrical and flash tested

Extra fixing points for secure board mounting (25 VA and 36 VA)

Note

To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.

Approvals

ENEC, UL recognised

Standards

EN 61 558 IEC 61558
