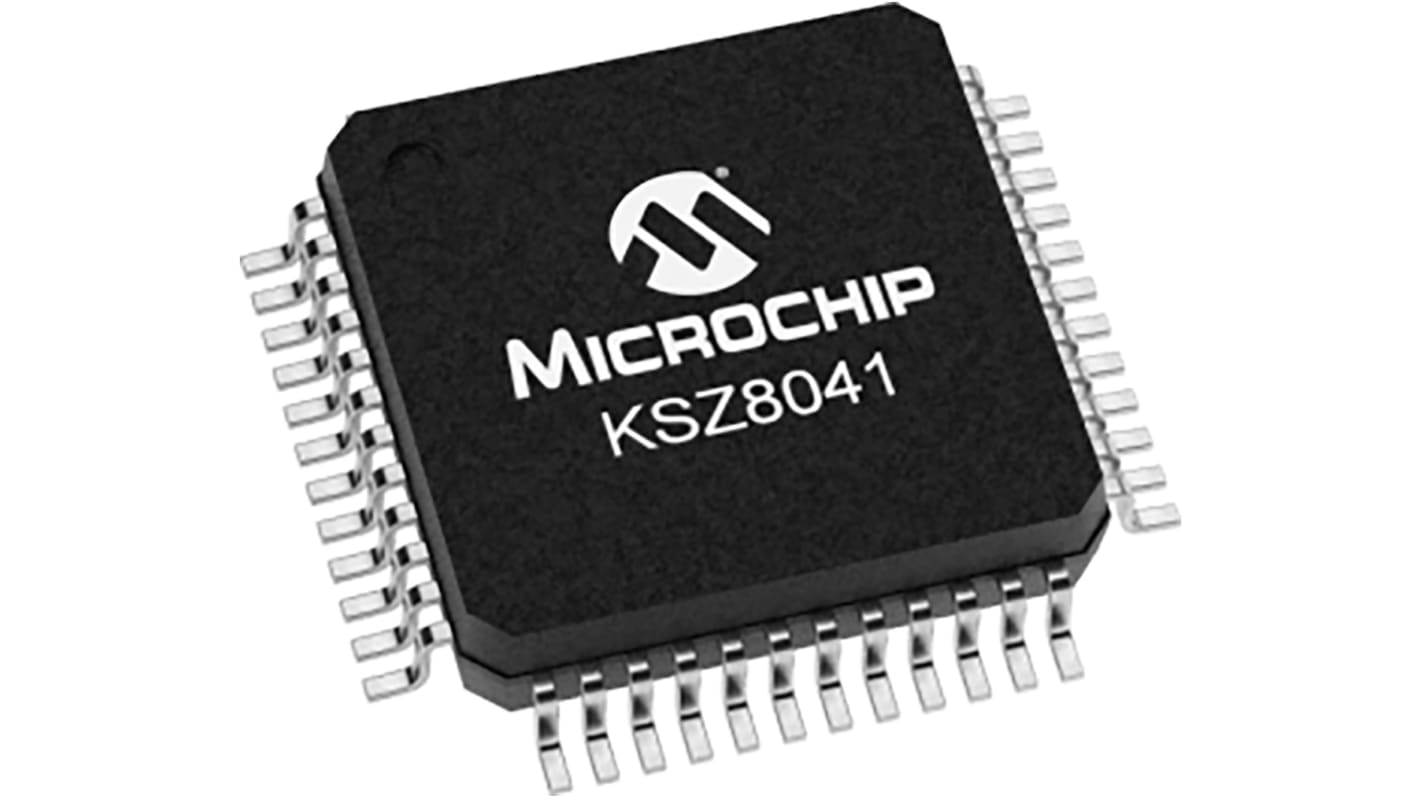

Microchip , 1-Channel Ethernet Transceiver 48-Pin TQFP, KSZ8041TL
- RS庫存編號:
- 177-3527
- 製造零件編號:
- KSZ8041TL
- 製造商:
- Microchip
可享批量折扣
小計（1 托盤，共 250 件）*
HK$6,438.50
訂單超過 HK$250.00 免費送貨
有庫存
- 500 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每托盤* |
|---|---|---|
| 250 - 1000 | HK$25.754 | HK$6,438.50 |
| 1250 + | HK$25.239 | HK$6,309.75 |
* 參考價格
- RS庫存編號:
- 177-3527
- 製造零件編號:
- KSZ8041TL
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Standard Supported | 100BASE-FX, 100BASE-TX, 10BASE-T, IEEE 802.3, IEEE 802.3u | |
| Number of Channels per Chip | 1 | |
| Typical Data Rate | 100Mbit/s | |
| Power Supply Type | Single | |
| Typical Operating Supply Voltage | 3.3 V | |
| Mounting Type | Surface Mount | |
| Package Type | TQFP | |
| Pin Count | 48 | |
| Dimensions | 7 x 7 x 1mm | |
| Maximum Operating Temperature | +70 °C | |
| Minimum Operating Temperature | 0 °C | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Standard Supported 100BASE-FX, 100BASE-TX, 10BASE-T, IEEE 802.3, IEEE 802.3u | ||
Number of Channels per Chip 1 | ||
Typical Data Rate 100Mbit/s | ||
Power Supply Type Single | ||
Typical Operating Supply Voltage 3.3 V | ||
Mounting Type Surface Mount | ||
Package Type TQFP | ||
Pin Count 48 | ||
Dimensions 7 x 7 x 1mm | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature 0 °C | ||
The KSZ8041 is a single supply 10Base-T/100Base-TX Physical Layer Transceiver, which provides MII/RMII/SMII interfaces to transmit and receive data.
Single-chip 10Base-T/100Base-TX physical layer solution
Low power
Power consumption of <180mW
Power down and power saving modes
Built-in 1.8V regulator for core
Single power supply (3.3V)
HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option
Robust operation over standard cables
MII interface support (KSZ8041NL only)
RMII Interface Support
External 50MHz system clock (KSZ8041NL or KSZ8041TL/FTL)
25MHz crystal/clock input and 50MHz reference clock output to MAC (KSZ8041RNL)
SMII Interface Support
External 125MHz system clock and 12.5MHz sync clock from MAC (KSZ8041TL/FTL only)
Fiber support 100Base-FX (KSZ8041FTL only)
MIIM (MDC/MDIO) management bus to 6.25MHz for rapid PHY register configuration
Interrupt pin option
Low power
Power consumption of <180mW
Power down and power saving modes
Built-in 1.8V regulator for core
Single power supply (3.3V)
HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option
Robust operation over standard cables
MII interface support (KSZ8041NL only)
RMII Interface Support
External 50MHz system clock (KSZ8041NL or KSZ8041TL/FTL)
25MHz crystal/clock input and 50MHz reference clock output to MAC (KSZ8041RNL)
SMII Interface Support
External 125MHz system clock and 12.5MHz sync clock from MAC (KSZ8041TL/FTL only)
Fiber support 100Base-FX (KSZ8041FTL only)
MIIM (MDC/MDIO) management bus to 6.25MHz for rapid PHY register configuration
Interrupt pin option
