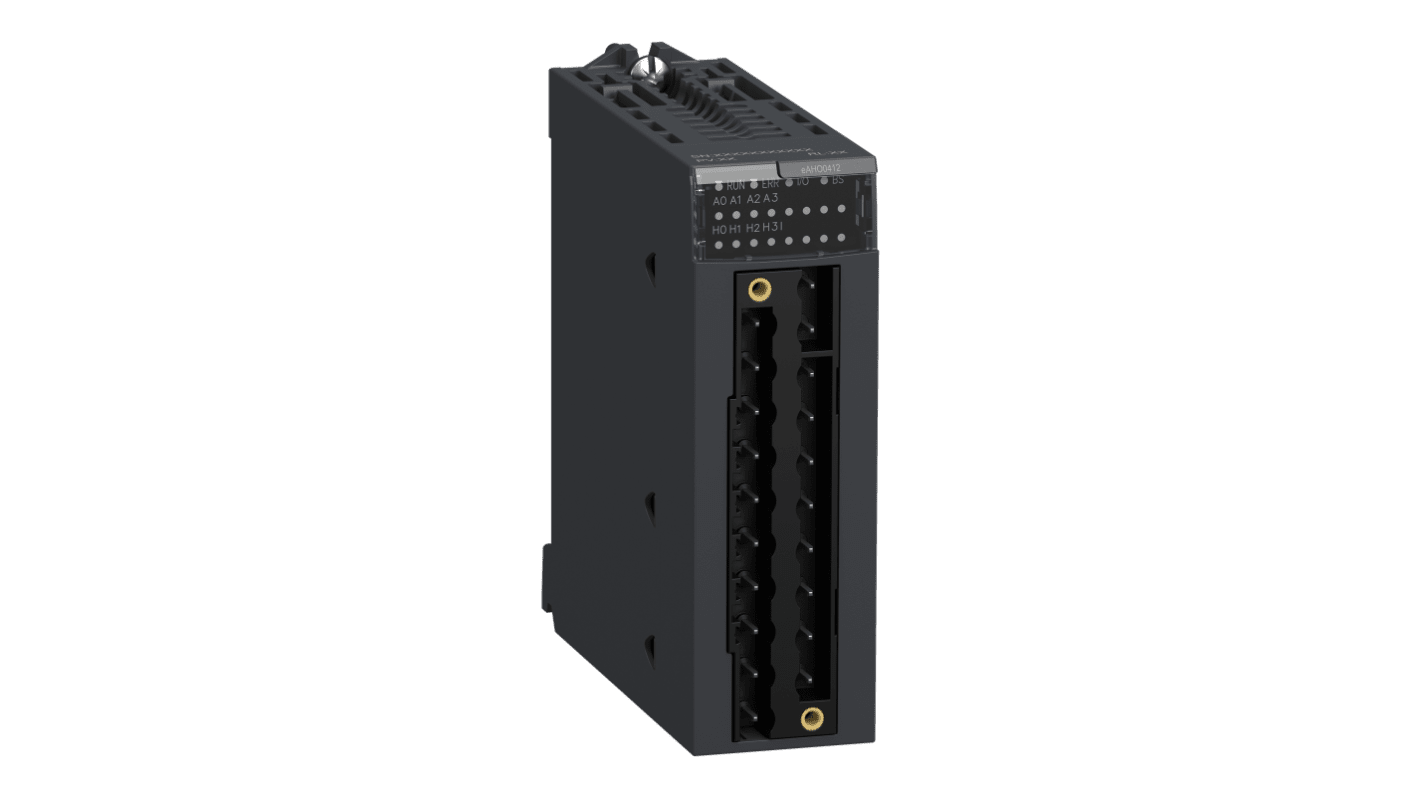

Schneider Electric Modicon ABE7 Series Module, Current Output4 Outputs
- RS庫存編號:
- 589-864
- 製造零件編號:
- BMEAHO0412
- 製造商:
- Schneider Electric
小計（1 件）*
HK$11,845.90
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$11,845.90 |
* 參考價格
- RS庫存編號:
- 589-864
- 製造零件編號:
- BMEAHO0412
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Product Type | Module | |
| Series | Modicon ABE7 | |
| Output Type | Current | |
| Number of Outputs | 4 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 11.1cm | |
| Length | 11.8cm | |
| Standards/Approvals | EAC, CSA C22.2 No 61010-2-201, EN/IEC 61131-2, CE, CSA, UL 61010-2-201, UL, RCM, EN/IEC 61010-2-201 | |
| Depth | 15mm | |
| Output Current | 20mA | |
| Mount Type | DIN Rail | |
| Communication Port Type | 20 Way Removable Telefast Terminal Block | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Product Type Module | ||
Series Modicon ABE7 | ||
Output Type Current | ||
Number of Outputs 4 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Width 11.1cm | ||
Length 11.8cm | ||
Standards/Approvals EAC, CSA C22.2 No 61010-2-201, EN/IEC 61131-2, CE, CSA, UL 61010-2-201, UL, RCM, EN/IEC 61010-2-201 | ||
Depth 15mm | ||
Output Current 20mA | ||
Mount Type DIN Rail | ||
Communication Port Type 20 Way Removable Telefast Terminal Block | ||
- COO (Country of Origin):
- FR
The Schneider Electric Analog isolated high-level output module is designed for Modicon X80 with 4 HART-compatible outputs. It provides 4 to 20 mA signals for accurate analog control. Each channel is electrically isolated to ensure reliable performance. Suitable for demanding industrial and process environments.
EN/IEC 61131-2 UL 61010-2-201 standards
UL CSA certifications
