Omron CP2E Series PLC CPU for Use with CP2E Series, Relay Output, 24-Input, Digital Input
- RS庫存編號:
- 196-3747
- 製造零件編號:
- CP2E-E40DR-A
- 製造商:
- Omron
- RS庫存編號:
- 196-3747
- 製造零件編號:
- CP2E-E40DR-A
- 製造商:
- Omron
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

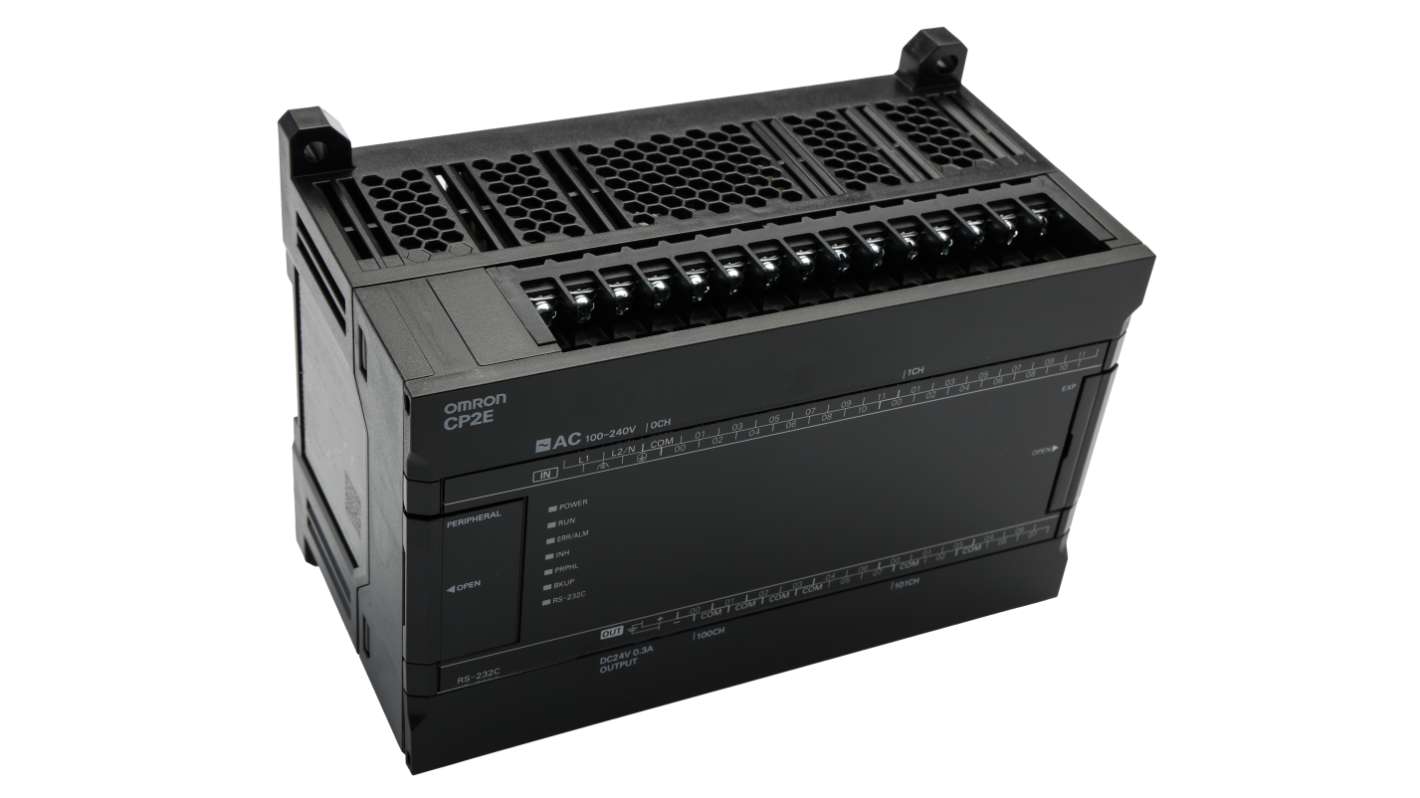

CP2E series compact PLC - Essential Type,24 DI, 16 DO,Relay output,Power supply 220 VAC,4k Step Program memory
Two built-in Ethernet ports with Ethernet switching function:
Ready for Machine to Machine communication (CP2E-N type)
Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
Four-axis positioning function with linear interpolation (CP2E-N type)
Battery-free operation and backup reduce maintenance
Function blocks and structured text improve programming efficiency
Operating temperature range from -20 to 60 °C for reliable use in special applications
Input/output terminal LED indicators for quick troubleshooting
Ready for Machine to Machine communication (CP2E-N type)
Up to three serial ports: Open connectivity to serial devices (CP2E-N type)
Four-axis positioning function with linear interpolation (CP2E-N type)
Battery-free operation and backup reduce maintenance
Function blocks and structured text improve programming efficiency
Operating temperature range from -20 to 60 °C for reliable use in special applications
Input/output terminal LED indicators for quick troubleshooting
規格
Attribute | Value |
|---|---|
| Manufacturer Series | CP2E |
| Number of Inputs | 24 |
| Output Type | Relay |
| For Use With | CP2E Series |
| Input Type | Digital |
| Number of Digital Inputs | 24 |
| Voltage Category | 100 → 240 V ac |
| Number of Outputs | 16 |
| Network Type | Ethernet |
| Number of Digital Outputs | 16 |
| Interface | RS-485 |
| Maximum Operating Temperature | +60°C |
| Mounting Type | Panel Mount |
| Programming Language Used | Ladder Diagram |
| Battery Backup | Yes |
| Number of Communication Ports | 3 |
| Dimensions | 150 x 80 x 110 mm |
| Minimum Operating Temperature | -20°C |
| Length | 150mm |
| Width | 80mm |
| Communication Port Type | RS-232, RS-485, USB |
| Display Included | Yes |
| Program Capacity | 4 kB |
| Depth | 110mm |
