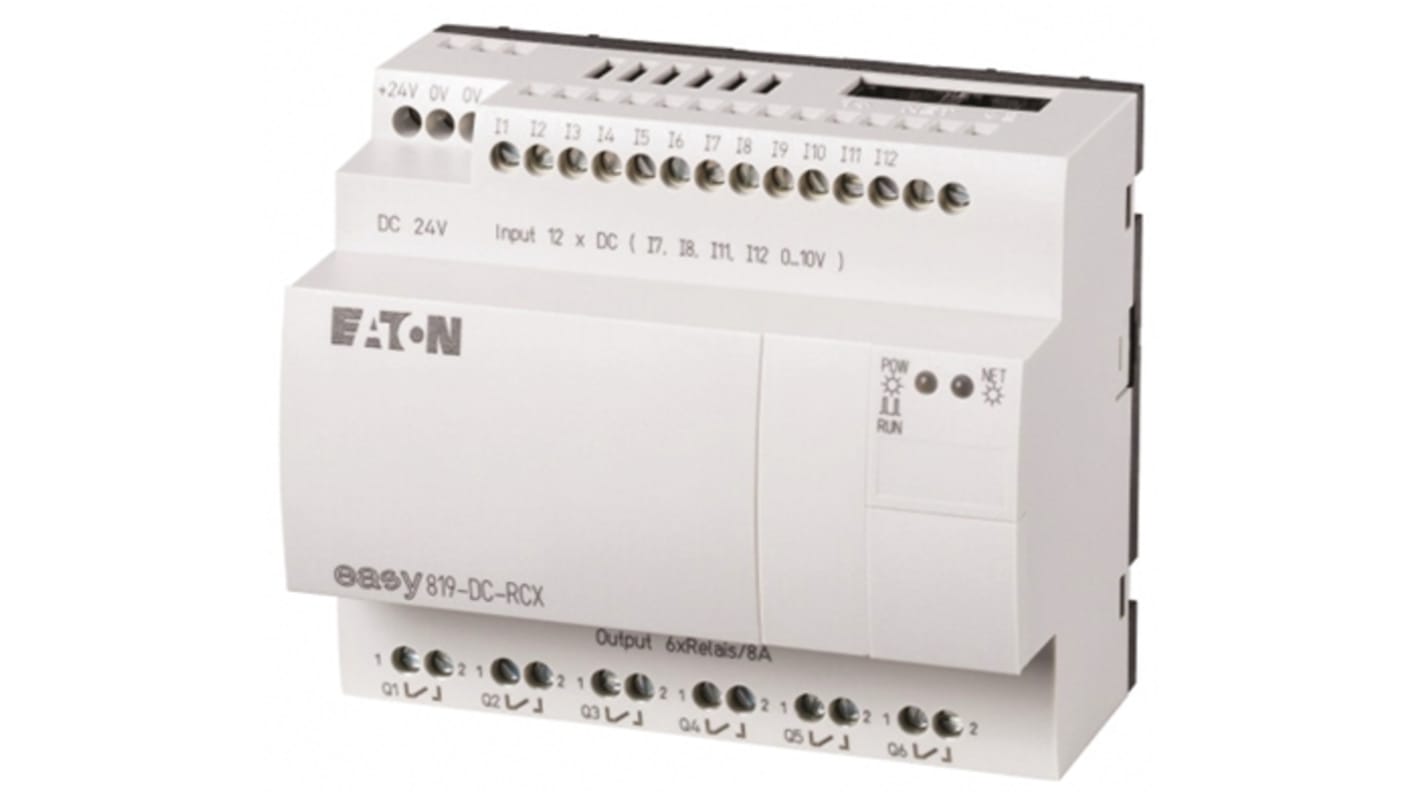

Eaton easy Logic Module, 24 V dc Relay, 12 x Input, 6 x Output Without Display
- RS庫存編號:
- 443-0152
- 製造零件編號:
- EASY819-DC-RCX
- 製造商:
- Eaton
不可供應
RS 不再對此產品進貨。
替代產品
該產品我們目前不提供。 這是我們推薦的替代產品。
- RS庫存編號:
- 443-0152
- 製造零件編號:
- EASY819-DC-RCX
- 製造商:
- Eaton
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Eaton | |
| Manufacturer Series | EASY | |
| Number of Inputs | 12 | |
| Output Type | Relay | |
| For Use With | Easy 800 | |
| Supply Voltage | 24 V dc | |
| Input Type | Analogue, Digital | |
| Number of Outputs | 6 | |
| Network Type | EasyNet | |
| Minimum Operating Temperature | -25°C | |
| Mounting Type | DIN Rail | |
| Width | 107.5mm | |
| Length | 110mm | |
| Depth | 72mm | |
| Maximum Operating Temperature | +55°C | |
| Display Included | No | |
| Dimensions | 110 x 107.5 x 72 mm | |
| Output Current | 8 A | |
| 選取全部 | ||
|---|---|---|
品牌 Eaton | ||
Manufacturer Series EASY | ||
Number of Inputs 12 | ||
Output Type Relay | ||
For Use With Easy 800 | ||
Supply Voltage 24 V dc | ||
Input Type Analogue, Digital | ||
Number of Outputs 6 | ||
Network Type EasyNet | ||
Minimum Operating Temperature -25°C | ||
Mounting Type DIN Rail | ||
Width 107.5mm | ||
Length 110mm | ||
Depth 72mm | ||
Maximum Operating Temperature +55°C | ||
Display Included No | ||
Dimensions 110 x 107.5 x 72 mm | ||
Output Current 8 A | ||
不適用
- COO (Country of Origin):
- DE
Eaton Logic module
The Eaton EASY series logic module has 12 digital inputs (4 analogues) and 6 relay outputs with a contact rating of 8A. This DIN rail mounting type logic module has a screw termination method. It has a large memory for the applications that require a large space. The logic module has a supply voltage of 24VDC. It is used mostly where user interaction is not required and where the unit will be programmed using the separately available software.
Features and Benefits
Local expansion using the easy I/O expansion units
Network up to 8 units over 1000m
High-level network interfaces for Profibus, CanOpen, DeviceNet and Ethernet.
Programmable using drag and drop PC software
PID for temperature or process control
Stepper motor function for positioning applications
PWM output for heating applications
Serial output for modem and text applications
Real-time clock
Operating temperature ranges between -25°C and 55°C
LCD
Network up to 8 units over 1000m
High-level network interfaces for Profibus, CanOpen, DeviceNet and Ethernet.
Programmable using drag and drop PC software
PID for temperature or process control
Stepper motor function for positioning applications
PWM output for heating applications
Serial output for modem and text applications
Real-time clock
Operating temperature ranges between -25°C and 55°C
LCD
Applications
Machine automation
HVAC
Lighting and access control
HVAC
Lighting and access control
