Weidmuller 3.5mm Pitch 4 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination
- RS庫存編號:
- 171-590
- 製造零件編號:
- 1605090000
- 製造商:
- Weidmüller
300 現貨庫存，可於4工作日發貨。
單價 个（每托盘 5 ）
HK$14.25
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 20 | HK$14.25 | HK$71.25 |
| 25 - 45 | HK$13.934 | HK$69.67 |
| 50 + | HK$13.634 | HK$68.17 |
* 參考價格
- RS庫存編號:
- 171-590
- 製造零件編號:
- 1605090000
- 製造商:
- Weidmüller
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

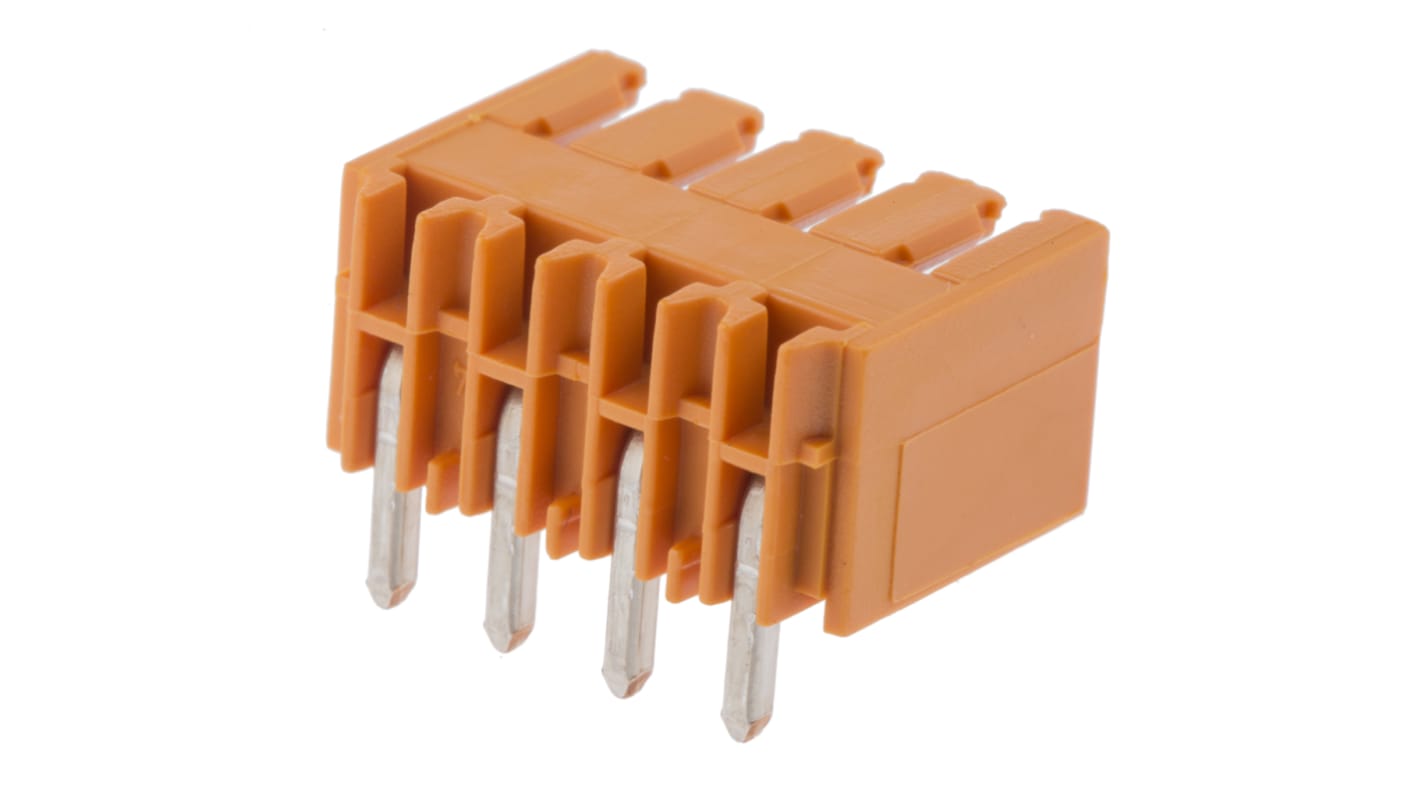

Standard Density Horizontal Header
3.5mm Pitch - Weidmüller Omnimate Range
The Weidmuller 3.50 mm pitch Omnimate Range is a cost effective, space saving solution for PCB applications with vertical or horizontal headers which solder directly onto the board.
Mating harness connectors in either tension clamp or rising clamp screw terminals
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
Headers with fully enclosed sides
Polarising pins available to prevent mismatch connections
Flammability Class UL94 V-0
規格
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Header |
| Number of Contacts | 4 |
| Pitch | 3.5mm |
| Series | OMNIMATE SL |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 17.0A |
| Voltage Rating | 320 V |
| Contact Material | Copper Alloy |
