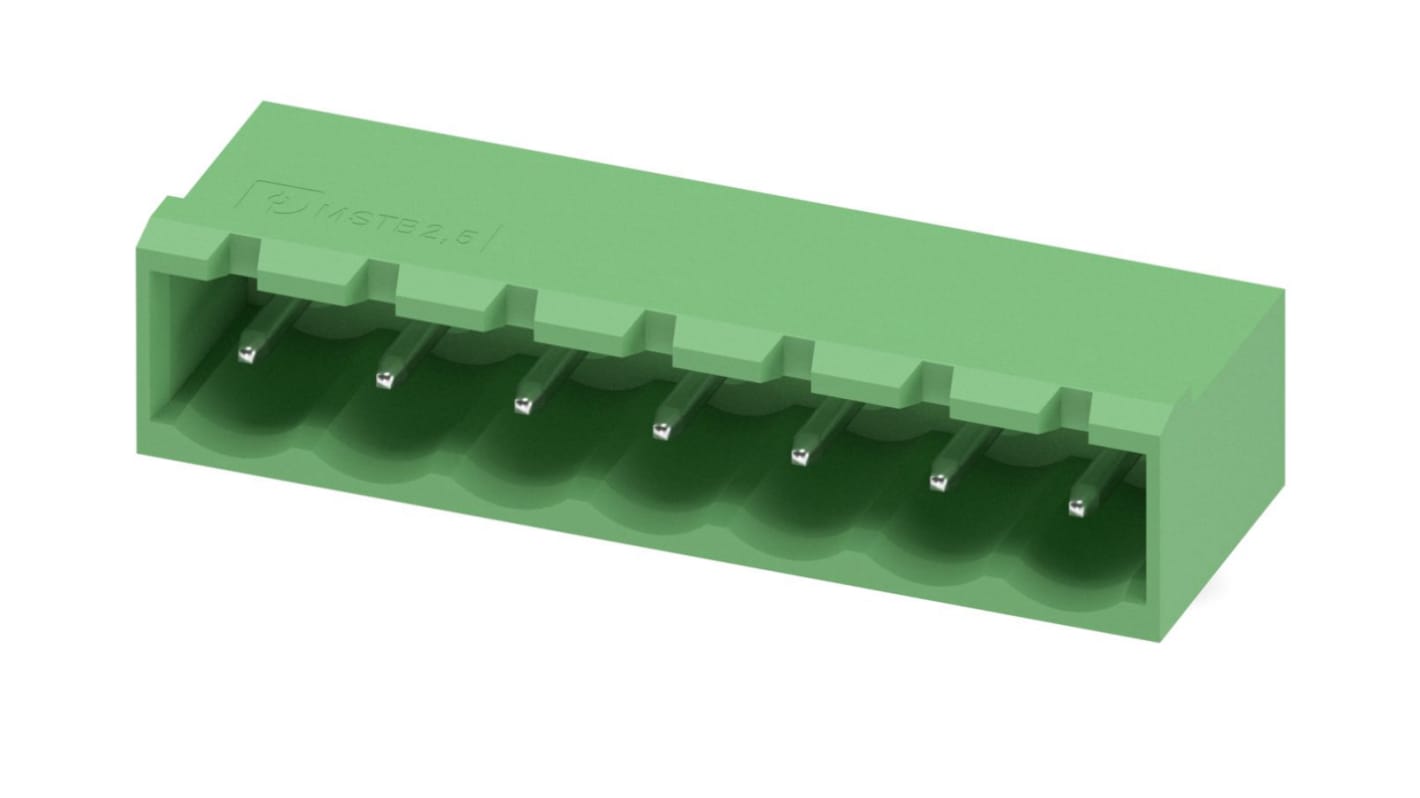

Phoenix Contact 5.08mm Pitch 7 Way Right Angle Pluggable Terminal Block, Solder Termination
- RS庫存編號:
- 222-1489
- 製造零件編號:
- 1757297
- 製造商:
- Phoenix Contact
此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Pluggable Terminal Blocks
60 現貨庫存，可於3工作日發貨。
單價 /個 (每包:5個)
原價 HK$32.968
您付款
HK$21.024
| 單位 | Per unit | Per Pack* |
| 5 - 70 | HK$21.024 | HK$105.12 |
| 75 - 245 | HK$20.396 | HK$101.98 |
| 250 - 495 | HK$19.764 | HK$98.82 |
| 500 - 995 | HK$19.344 | HK$96.72 |
| 1000 + | HK$18.924 | HK$94.62 |
| * 參考價格 | ||
- RS庫存編號:
- 222-1489
- 製造零件編號:
- 1757297
- 製造商:
- Phoenix Contact
- COO (Country of Origin):
- DE
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm Terminal Block Headers
The MSTBA connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTBA connectors feature a closed contour to help ensure the plug-in connector has good stability.
The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's.
The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's.
Features and benefits:
- Well known mounting principle allows for worldwide use
- The MSTBA series can be used for all PCB connectors thanks to allowing multiple connection technologies
- Built from a durable Polyamide material
- Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)
- Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors
規格
| Attribute | Value |
| Number of Contacts | 7 |
| Pitch | 5.08mm |
| Series | COMBICON MSTBA |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Current Rating | 12.0A |
| Voltage Rating | 400 V |
