RS PRO CTB9202 Series Pluggable Terminal Block, 5-Contact, 5 mm Pitch, 1 Row
- RS庫存編號:
- 897-1165
- Distrelec 貨號:
- 304-26-184
- 製造商:
- RS PRO
可享批量折扣
小計（1 包，共 5 件）*
HK$64.20
訂單超過 HK$250.00 免費送貨
有庫存
- 310 件準備從其他地點送貨
- 加上 1,000 件從 2026年9月02日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 95 | HK$12.84 | HK$64.20 |
| 100 - 495 | HK$12.32 | HK$61.60 |
| 500 + | HK$10.14 | HK$50.70 |
* 參考價格
- RS庫存編號:
- 897-1165
- Distrelec 貨號:
- 304-26-184
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Number of Contacts | 5 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 15A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 3.3mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 14AWG | |
| Maximum Wire Size AWG | 22AWG | |
| Orientation | Right Angle | |
| Colour | Green | |
| Voltage | 250V | |
| Length | 25mm | |
| Series | CTB9202 | |
| Width | 18.2mm | |
| Standards/Approvals | cULus | |
| Depth | 15mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Number of Contacts 5 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 15A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 3.3mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 14AWG | ||
Maximum Wire Size AWG 22AWG | ||
Orientation Right Angle | ||
Colour Green | ||
Voltage 250V | ||
Length 25mm | ||
Series CTB9202 | ||
Width 18.2mm | ||
Standards/Approvals cULus | ||
Depth 15mm | ||

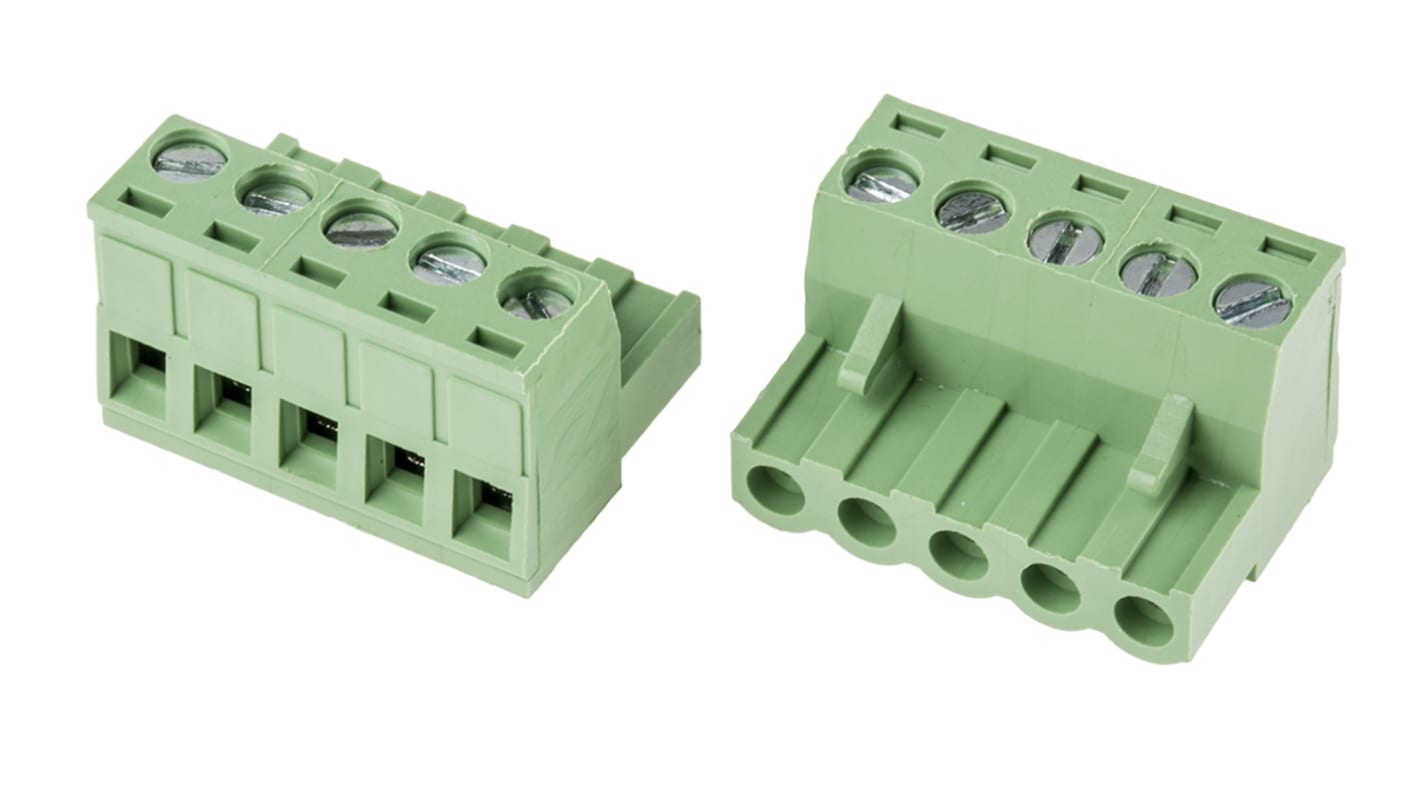

RS 5.0mm Rising Clamp Terminal Block Plug Connectors
5mm pitch pluggable female terminal block connectors with professional rising clamp terminals and housings made from green UL94-V0 flame retardant PA with polarised mouldings. These 5mm terminal block plug connectors have captive screws and accept solid and stranded cable with a wire size range of 0.2-2.5mm2 (24-12 AWG). For headers see stock numbers 897-1183 and 897-1367 typically.
