IMI Norgren Quick Exhaust Valve, G 1/4 Female x 10 bar, Threaded
- RS庫存編號:
- 315-8679
- 製造零件編號:
- T70C2800
- 製造商:
- IMI Norgren
查看所有Pneumatic Quick Exhaust Valves
- RS庫存編號:
- 315-8679
- 製造零件編號:
- T70C2800
- 製造商:
- IMI Norgren
不適用
- COO (Country of Origin):
- ES
法例與合規
不適用
- COO (Country of Origin):
- ES
產品詳細資訊

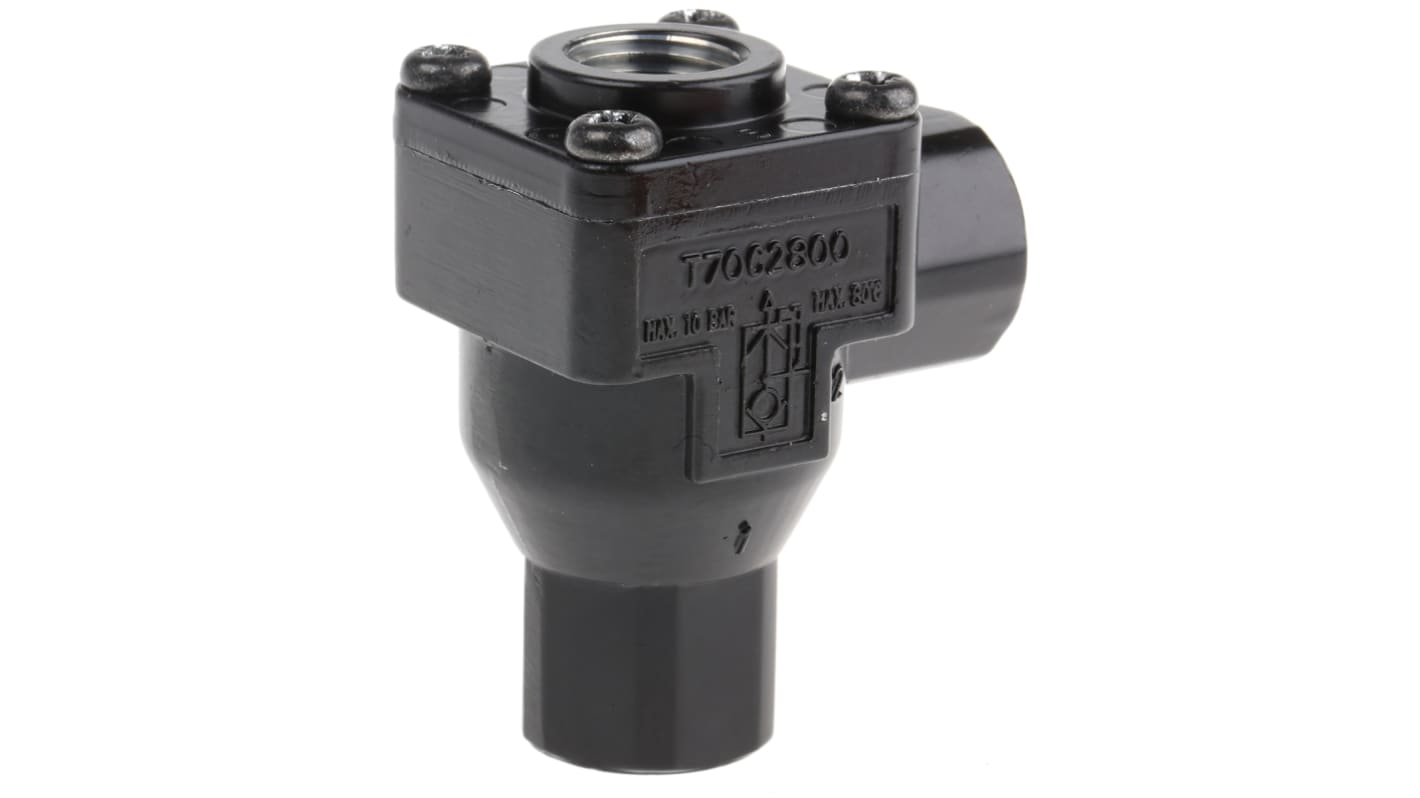

IMI Norgren Quick Exhaust Valve, 0.5 to 10 Bar, G1/4 Female Connection - T70 Series - T70C2800
Looking for a way to improve pneumatic performance and use smaller cylinders? Install this IMI Norgren quick exhaust valve to increase your cylinder speeds and lower backpressures. It enables the quick escape of air from reservoirs and cylinders, which results in faster speeds and reliable operation of industrial, commercial and domestic systems. A straightforward and compact design makes this component easy to install on any size cylinder. It has a wide pressure range of 0.5 to 10 bars, so you can use it with low-pressure and high-pressure setups.
Features & Benefits
Wide operating temperature range between -20°C and +80°C for use in heavy-duty conditions
Versatile component can be used for compressed and filtered air and with lubricated and non-lubricated mediums
Corrosive resistant body material for a long service life
Nitrile-butadiene rubber (NBR) seals withstand abrasion and compression to make sure of airtight connections
Versatile component can be used for compressed and filtered air and with lubricated and non-lubricated mediums
Corrosive resistant body material for a long service life
Nitrile-butadiene rubber (NBR) seals withstand abrasion and compression to make sure of airtight connections
Applications
Energy industries
Industrial automation
Manufacturing
Industrial automation
Manufacturing
How does a quick exhaust valve work in a pneumatic system?
You install a quick exhaust valve at the rod or blind end of a pneumatic cylinder to provide quick extensions and retractions, which reliably increase operational speeds.
規格
Attribute | Value |
Manufacturer Series | T70 |
Connection Type | Threaded |
Threaded Connections | G 1/4 Female |
Threaded Connection - Gender | Female |
Threaded Connection Size | 1/4 in |
Minimum Operating Pressure | 0.5bar |
Threaded Connection Type | G |
Maximum Operating Pressure | 10 bar |
Body Material | Zinc Alloy |
