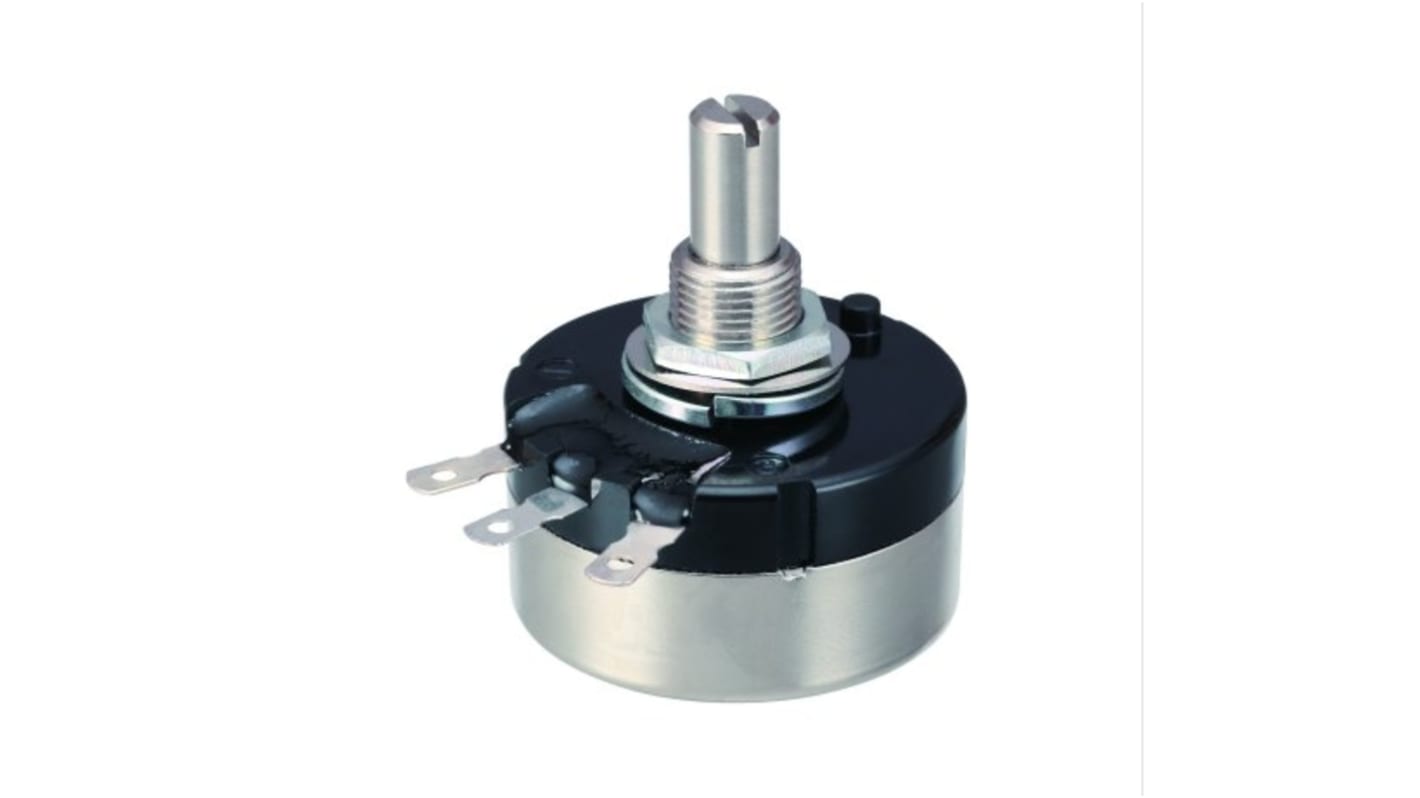

Tokyo Cosmos Electric 2MΩ Linear Potentiometer 1-Gang, RV24YN15S B103

查看所有Potentiometers
可享批量折扣

小計（1 件）*

HK$64.05

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
1 - 4HK$64.05
5 - 29HK$60.88
30 - 49HK$57.87
50 - 99HK$54.95
100 +HK$52.22

* 參考價格

RS庫存編號:
252-0612
製造零件編號:
RV24YN15S B103
製造商:
Tokyo Cosmos Electric
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Tokyo Cosmos Electric

Potentiometer Type

Linear

Maximum Resistance

2MΩ

Number of Gangs

1

Number of Turns

1

Power Rating

0.25W

COO (Country of Origin):
CN
The Tokyo Cosmos Electric potentiometer carbon film element is 24mm diameter with single-turn used in industrial panel control. The potentiometer is variable resistor used for telecommunication applications. A variable is an electro-mechanical transducer and normally works by sliding a contact (wiper) over a resistive element.

Standard shaft length is 15mm
Resistance range is between 50Ω to 2MΩ
Resistance tolerance is upto ±10%
Angle of rotation is 280°±10°
Rated voltage is upto 315V
Operating temperature is -10°C to 85 °C
