- RS庫存編號:
- 252-0619
- 製造零件編號:
- RV24YN15S B503
- 製造商:
- Tokyo Cosmos Electric
查看所有Potentiometers
當前暫無庫存，可於2023/10/19發貨，3 工作日送達。
單價 個
HK$64.05
| 單位 | Per unit |
| 1 - 4 | HK$64.05 |
| 5 - 29 | HK$60.88 |
| 30 - 49 | HK$57.87 |
| 50 - 99 | HK$54.95 |
| 100 + | HK$52.22 |
- RS庫存編號:
- 252-0619
- 製造零件編號:
- RV24YN15S B503
- 製造商:
- Tokyo Cosmos Electric
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

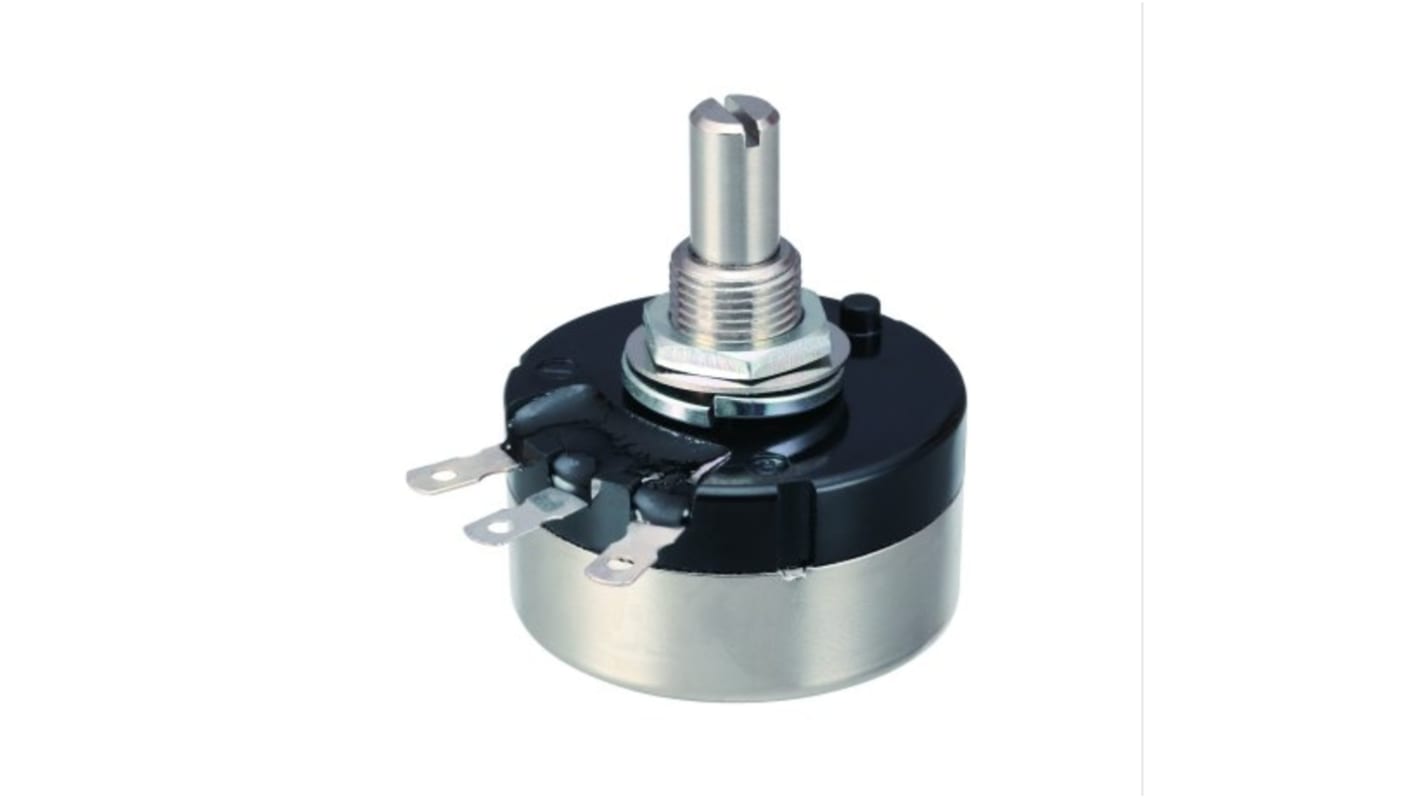

The Tokyo Cosmos Electric potentiometer carbon film element is 24mm diameter with single-turn used in industrial panel control. The potentiometer is variable resistor used for telecommunication applications. A variable is an electro-mechanical transducer and normally works by sliding a contact (wiper) over a resistive element.
Standard shaft length is 15mm
Resistance range is between 50Ω to 2MΩ
Resistance tolerance is upto ±10%
Angle of rotation is 280°±10°
Rated voltage is upto 315V
Operating temperature is -10°C to 85 °C
Resistance range is between 50Ω to 2MΩ
Resistance tolerance is upto ±10%
Angle of rotation is 280°±10°
Rated voltage is upto 315V
Operating temperature is -10°C to 85 °C
規格
| Attribute | Value |
| Potentiometer Type | Linear |
| Maximum Resistance | 2MΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.25W |
