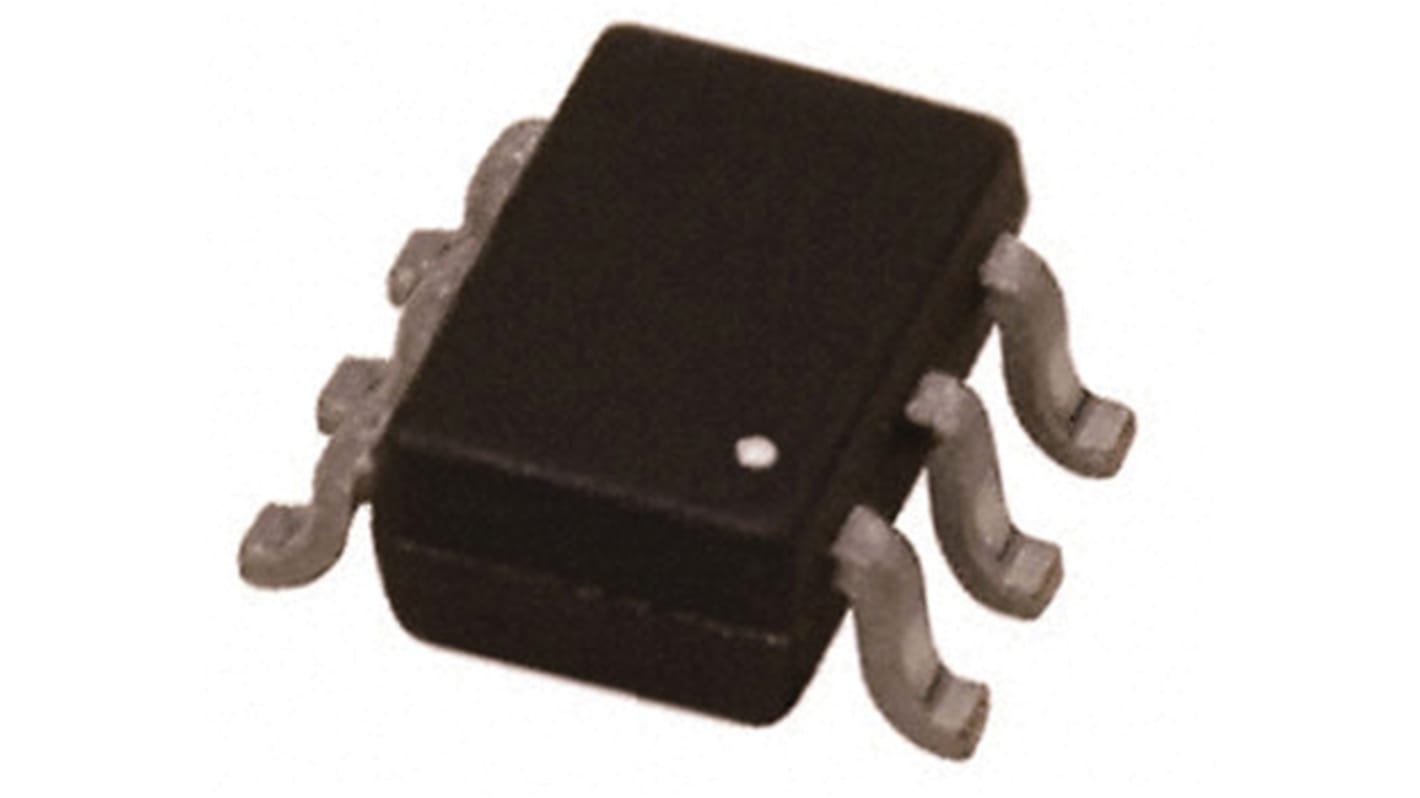

onsemi NCP1622BECSNT1G, Power Factor Controller, 50 kHz, 30 V 6-Pin, TSOP
- RS庫存編號:
- 172-3387
- 製造零件編號:
- NCP1622BECSNT1G
- 製造商:
- ON Semiconductor
不可供應
RS 不再對此產品進貨。
- RS庫存編號:
- 172-3387
- 製造零件編號:
- NCP1622BECSNT1G
- 製造商:
- ON Semiconductor
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ON Semiconductor | |
| Maximum Switching Frequency | 50 kHz | |
| Start-up Supply Current | 70µA | |
| IC Type | Power Factor Controller IC | |
| Maximum Source Current | 277µA | |
| Maximum Sink Current | 42µA | |
| Maximum Supply Current | 800 mA | |
| Zero Power Detection | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | TSOP | |
| Pin Count | 6 | |
| Dimensions | 3.1 x 1.7 x 1mm | |
| Height | 1mm | |
| Length | 3.1mm | |
| Maximum Operating Supply Voltage | 30 V | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 1.7mm | |
| Minimum Operating Supply Voltage | -0.3 V | |
| 選取全部 | ||
|---|---|---|
品牌 ON Semiconductor | ||
Maximum Switching Frequency 50 kHz | ||
Start-up Supply Current 70µA | ||
IC Type Power Factor Controller IC | ||
Maximum Source Current 277µA | ||
Maximum Sink Current 42µA | ||
Maximum Supply Current 800 mA | ||
Zero Power Detection Yes | ||
Mounting Type Surface Mount | ||
Package Type TSOP | ||
Pin Count 6 | ||
Dimensions 3.1 x 1.7 x 1mm | ||
Height 1mm | ||
Length 3.1mm | ||
Maximum Operating Supply Voltage 30 V | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 1.7mm | ||
Minimum Operating Supply Voltage -0.3 V | ||
The 6-pin PFC controller NCP1622 is designed to drive PFC boost stages. It is based on an innovative Valley Synchronized Frequency Fold-back (VSFF) method. In this mode, the circuit classically operates in Critical conduction Mode (CrM) when control voltage exceeds a programmable value Vctrl,FF. When Vcontrol is below this preset level Vctrl,FF, the NCP1622 linearly decays the frequency down to about 30 kHz until Vcontrol reaches the SKIP mode threshold. VSFF maximizes the efficiency at both nominal and light load.
Critical Conduction Mode with frequency foldback
Optimizes conversion efficiency across load range
Valley Synchronized Frequency Fold-back (VSFF)
Enhanced efficiency at light load conditions compared to CrM PFC
Works with or without a transformer w/ ZCD winding
Reduced inductor cost and simplified design
Dynamic Response Enhancer
Improved transient response for line and load steps
Optimizes conversion efficiency across load range
Valley Synchronized Frequency Fold-back (VSFF)
Enhanced efficiency at light load conditions compared to CrM PFC
Works with or without a transformer w/ ZCD winding
Reduced inductor cost and simplified design
Dynamic Response Enhancer
Improved transient response for line and load steps
