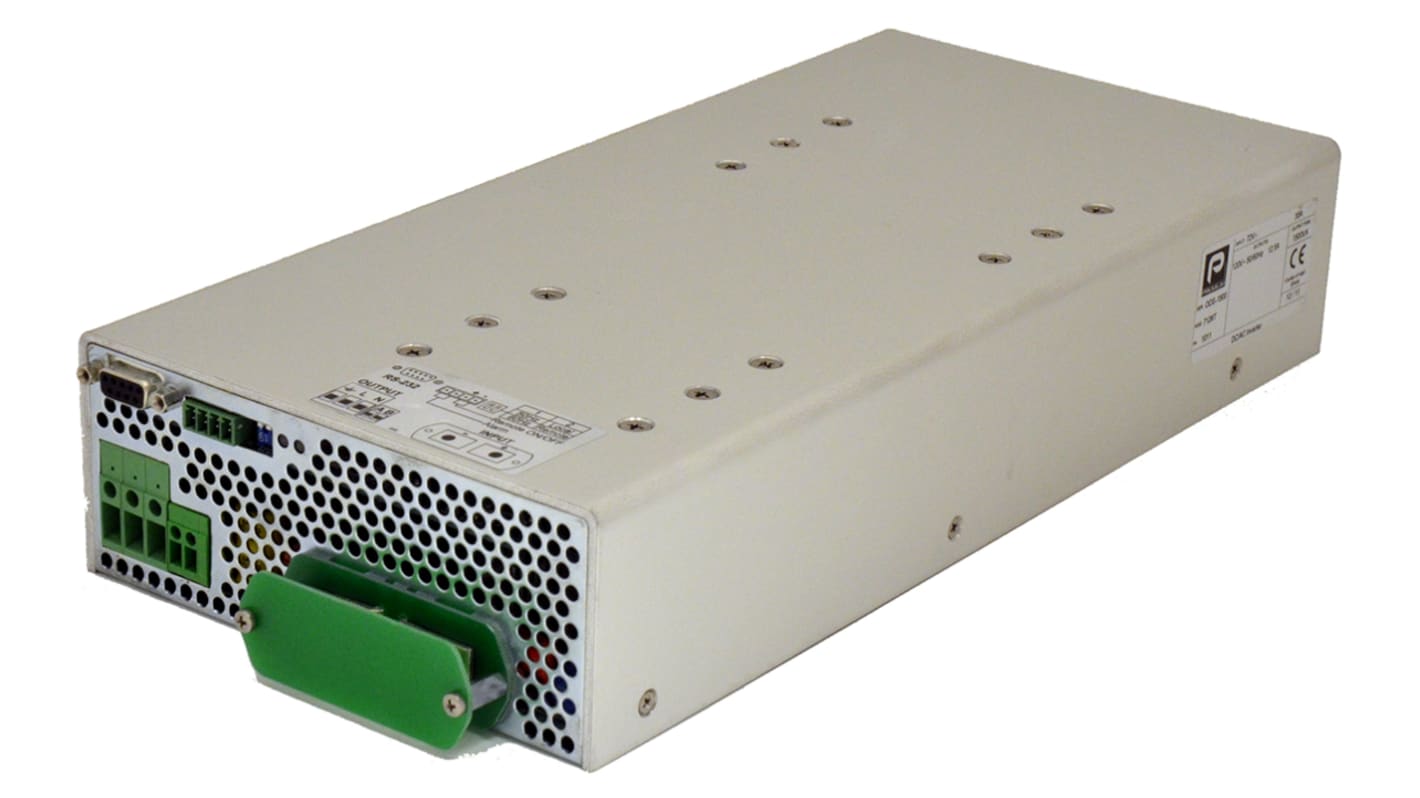

RS PRO Isolated DC-DC Converter Chassis Mount, Voltage out 230 V AC
Safely convert a source of direct current (DC) from one voltage to another with this isolated 1500 W DC-DC converter. The unit's adjustable output voltage means you can safely operate a broad range of devices, including sensitive equipment. You can connect this unit to remote controls via an RS232 port, or to alarms using isolated relay contacts if you're installing a security system. To protect your end device from damage, it's isolated from the power supply by a high input-output isolation of 3000 Vrms (voltage regulator modules). You can use this converter in a wide range of temperatures from -25°C up to +70°C. What's more, it's protected against overload, polarity and overpower for your safety.
Features and Benefits
• Loading controlled cooling method • Cooling fan depth of 160 mm • Single output connection • Input voltage of 16.8 to 30 V DC • Maximum input current of >400 mA • Mean time between failures (MTBF) of 130,000 hours • Output voltage of 230 V AC • Output current of 6.5 A • Output frequency range of 50 to 60 Hz • Chassis mounting • Dimensions of 359.5 (L) x 64.5 (W) x 160 mm (D) • Pure sine wave output voltage • Single-phase output • Weight of 3.8 kg
Attribute
Value
Input Voltage
28V dc
Output Voltage
230V ac
Railway Approved
Yes
Efficiency
0.88
MTBF
130000h
Output Current
6.5A
Length
359.5mm
Width
64.5mm
Depth
160mm
Weight
3.8kg
Minimum Temperature
-25°C
Protection Features
Current Protection, Overload Protection, Polarity Protection, Power Protection
Maximum Input Current
400mA
Mounting Type
Chassis Mount
Maximum Temperature
+55°C
Standards Met
2014/30/EU, 2014/35/EU, EN 45545-2, EN 50121-3-2, EN 50155, EN 62368-1
