B84111F0000M110 | EPCOS, B84111F 10A 250 V ac/dc 50 → 60Hz, Chassis Mount EMC Filter, Lug, Tab Connector, Single Phase | RS
最近搜索

    EPCOS, B84111F 10A 250 V ac/dc 50 → 60Hz, Chassis Mount EMC Filter, Lug, Tab Connector, Single Phase

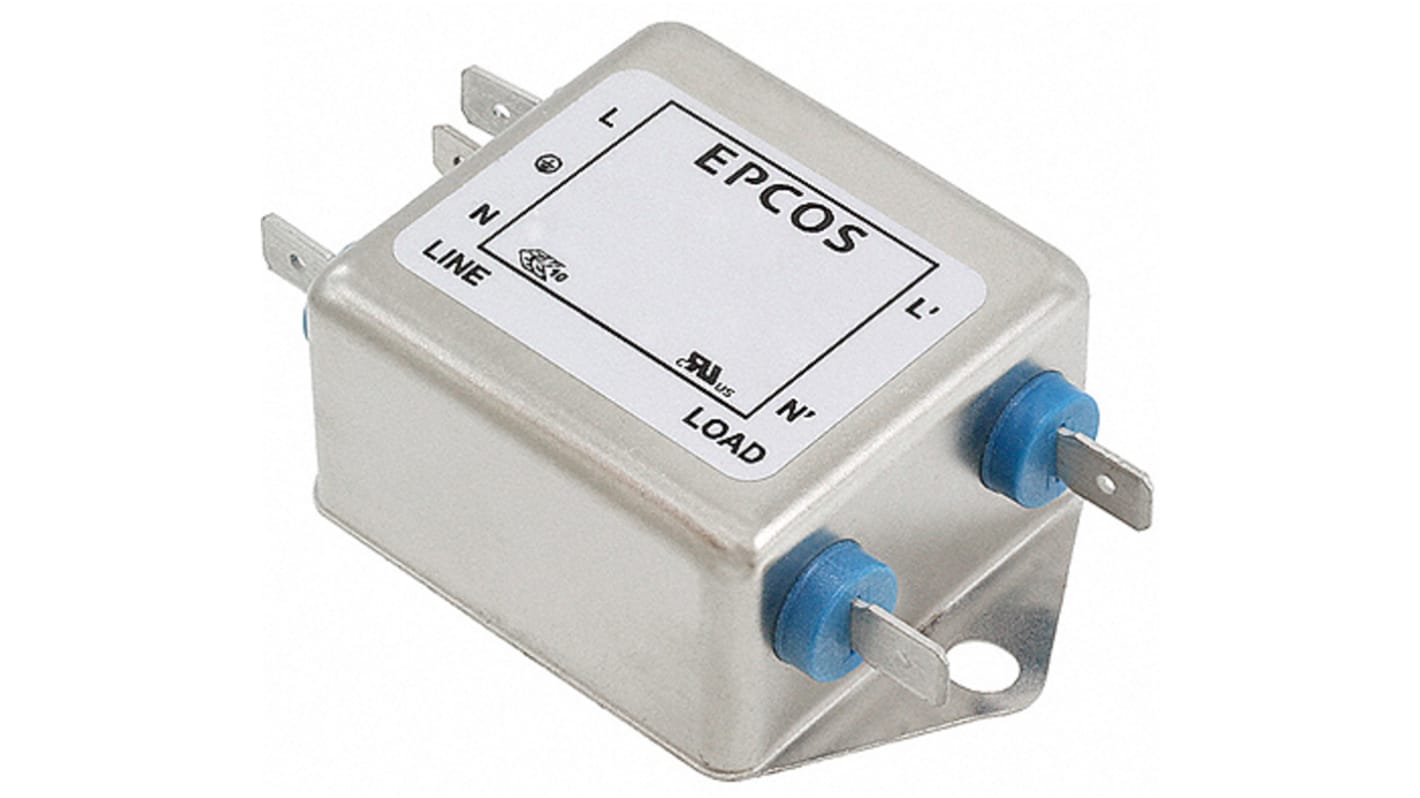

    此圖片僅供參考，請參閲產品詳細資訊及規格

    查看所有Power Line Filters
    可享批量折扣

    Price 个**

    HK$172.20

    Add to Basket
    選擇或輸入數量
    31 現貨庫存，可於3工作日發貨。*

    * 交貨日期可能會根據您選擇的數量和交貨地址而變更。

    即時庫存查詢
    單位
    每單位
    1 - 9HK$172.20
    10 - 19HK$168.40
    20 +HK$164.80

    ** 參考價格

    RS庫存編號:
    124-5286
    製造零件編號:
    B84111F0000M110
    製造商:
    EPCOS
    透過選取一個或多個屬性來查找類似產品。
    選取全部

    品牌

    EPCOS

    Maximum Current Rating

    10A

    Maximum Voltage Rating

    250 V ac/dc

    Mounting Type

    Chassis Mount

    Termination Style

    Lug, Tab Connector

    Number of Phases

    1

    Number of Stages

    Single Stage

    Series

    B84111F

    Operating Frequency

    50 → 60Hz

    Length

    35mm

    Depth

    43.5mm

    Capacitance

    0.1 x 2µF

    Height

    26mm

    Inductance

    0.87 x 2 mH

    Dimensions

    35 x 43.5 x 26mm

    Leakage Current

    0 mA

    Minimum Operating Temperature

    -25°C

    Maximum Operating Temperature

    +100°C

    Standards Met

    UL 1283
