EPCOS, B84112B 20A 250 V ac 50 → 60Hz, Chassis Mount EMC Filter, Tab, Single Phase

RS庫存編號:: 167-8313
製造零件編號:: B84112B0000B120
製造商:: EPCOS

EPCOS, B84112B 20A 250 V ac 50 → 60Hz, Chassis Mount EMC Filter, Tab, Single Phase

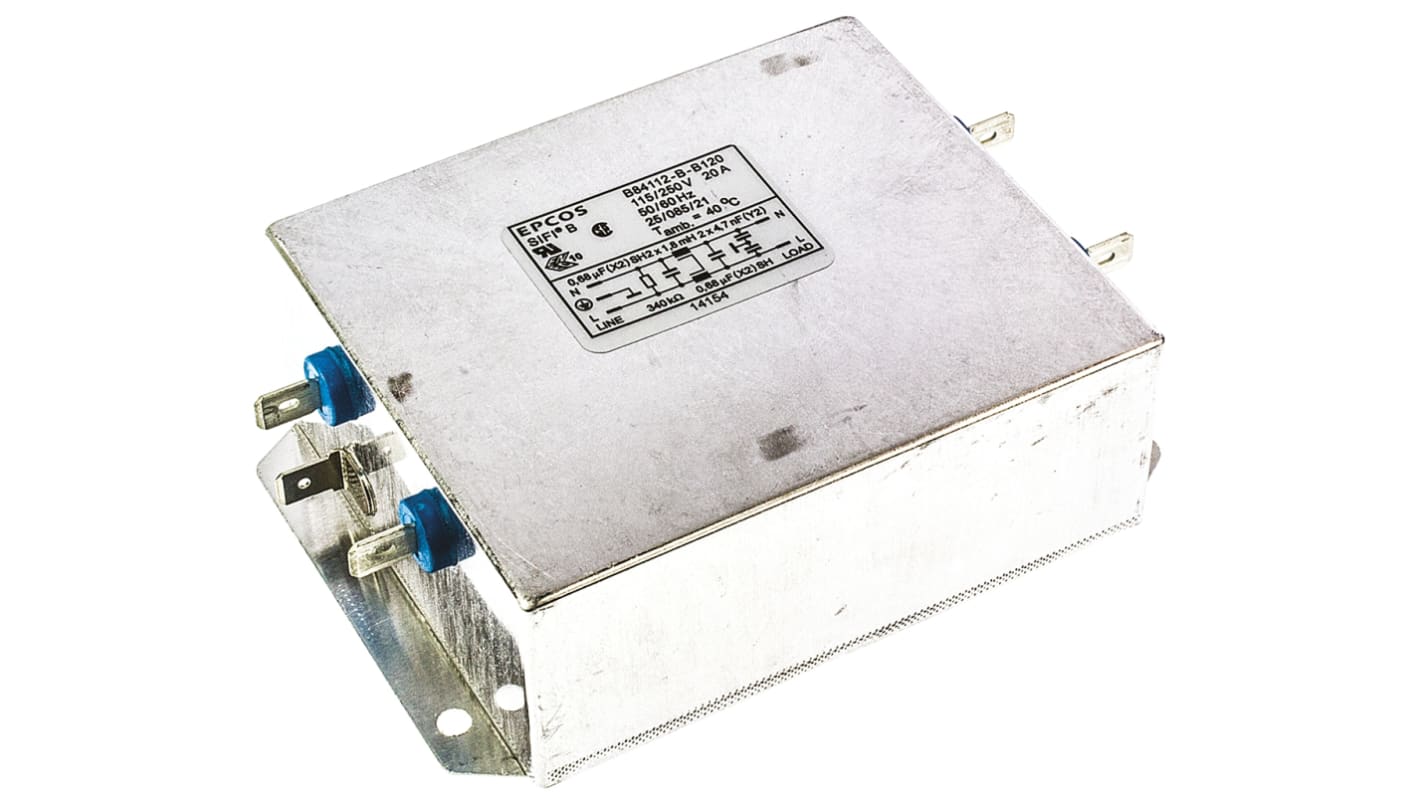

此圖片僅供參考，請參閲產品詳細資訊及規格

728 現貨庫存，可於3工作日發貨。

單價个 (以毎盒：8)

HK$680.461

單位	Per unit	Per Box*
8 - 8	HK$680.461	HK$5,443.688
16 - 24	HK$666.853	HK$5,334.824
32 +	HK$653.515	HK$5,228.12
* 參考價格

RS庫存編號:: 167-8313
製造零件編號:: B84112B0000B120
製造商:: EPCOS

產品概覽和技術數據資料表

Datasheet

法例與合規

產品詳細資訊

B84112 Series

EPCOS B84112 series RFI 2 - line filter is for 1 phase systems. The RFI filter is a compact design and easy to install, it features optimized leakage current. Rated voltage VR: 250 V ac/dc. Rated current IR: 1 A to 20 A

Applications

Industrial electronics
Switch-mode power supplies
Telecommunications
DC applications
Data systems

Approvals

UL Listed, CSA Certified, VDE, SEV, SEMKO, DEMKO

Approvals

UL; CSA; VDE; SEV; SEMKO; DEMKO

規格

Attribute	Value
Maximum Current Rating	20A
Maximum Voltage Rating	250 V ac
Mounting Type	Chassis Mount
Termination Style	Tab
Number of Phases	1
Series	B84112B
Number of Stages	Single Stage
Operating Frequency	50 → 60Hz
Length	125mm
Depth	84mm
Capacitance	0.68 x 2 μF, 4700 x 2pF
Height	38.1mm
Inductance	1.8 x 2 mH
Dimensions	125 x 84 x 38.1mm
Leakage Current	0.369 mA
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
