EPCOS, B84142B*R000 8A 250 V ac/dc 60Hz, Screw Mount EMC Filter, Terminal Block, Single Phase

RS庫存編號:: 167-8404
製造零件編號:: B84142B0008R000
製造商:: EPCOS

EPCOS, B84142B*R000 8A 250 V ac/dc 60Hz, Screw Mount EMC Filter, Terminal Block, Single Phase

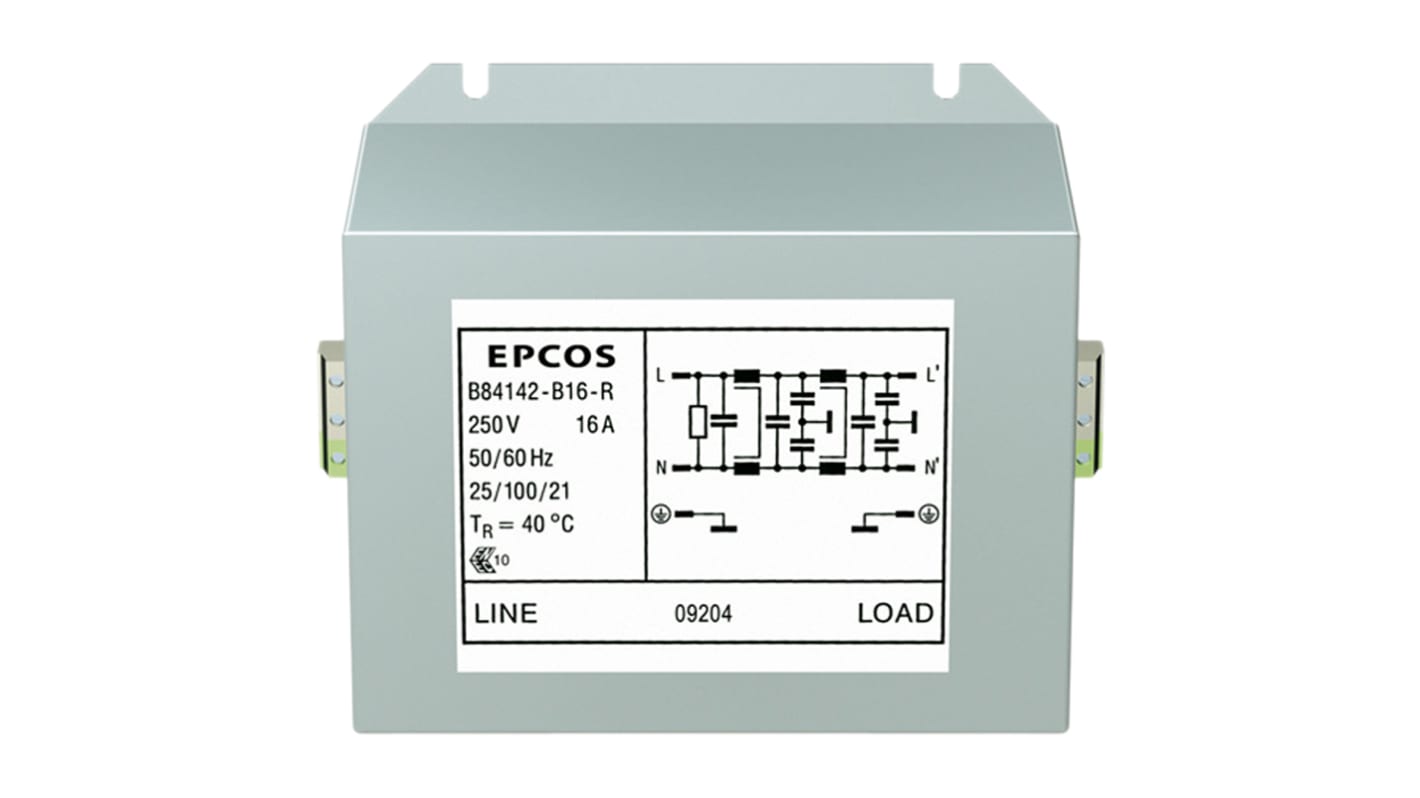

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 盒，共 8 件）*

HK$9,295.60

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年5月20日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每盒*
8 - 32	HK$1,161.95	HK$9,295.60
40 +	HK$1,138.713	HK$9,109.70

* 參考價格

RS庫存編號:: 167-8404
製造零件編號:: B84142B0008R000
製造商:: EPCOS

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	EPCOS
	Maximum Current Rating	8A
	Maximum Voltage Rating	250 V ac/dc
	Mounting Type	Screw Mount
	Termination Style	Terminal Block
	Number of Phases	1
	Series	B84142B*R000
	Operating Frequency	60Hz
	Length	113mm
	Depth	144mm
	Height	61mm
	Dimensions	113 x 144 x 61mm
	Minimum Operating Temperature	-25°C
	Leakage Current	2.77 mA
	Maximum Operating Temperature	+100°C
	Resistance	42mΩ
	Standards Met	IEC 60939

	選取全部
	品牌 EPCOS
	Maximum Current Rating 8A
	Maximum Voltage Rating 250 V ac/dc
	Mounting Type Screw Mount
	Termination Style Terminal Block
	Number of Phases 1
	Series B84142B*R000
	Operating Frequency 60Hz
	Length 113mm
	Depth 144mm
	Height 61mm
	Dimensions 113 x 144 x 61mm
	Minimum Operating Temperature -25°C
	Leakage Current 2.77 mA
	Maximum Operating Temperature +100°C
	Resistance 42mΩ
	Standards Met IEC 60939

Datasheet

B84142-Bx-R Series

EPCOS B84142-Bx-R Series Power line filters for convertors and power electronics. These 2 line filters feature a high insertion loss due to its two stage construction, easy to install and has optimised leakage current. Rated voltage VR: 250 V AC/DC.Rated current IR: 8 A to 25 A.

Applications

Frequency convertors for motor drives
Pumps
Elevators
Conveyer systems
HVAC systems (heating heating, ventilation and air conditioning)
DC applications
Power supplies

Standards

EN 133 200

Approvals

UL1283, CSA22.2 No.8 1986
