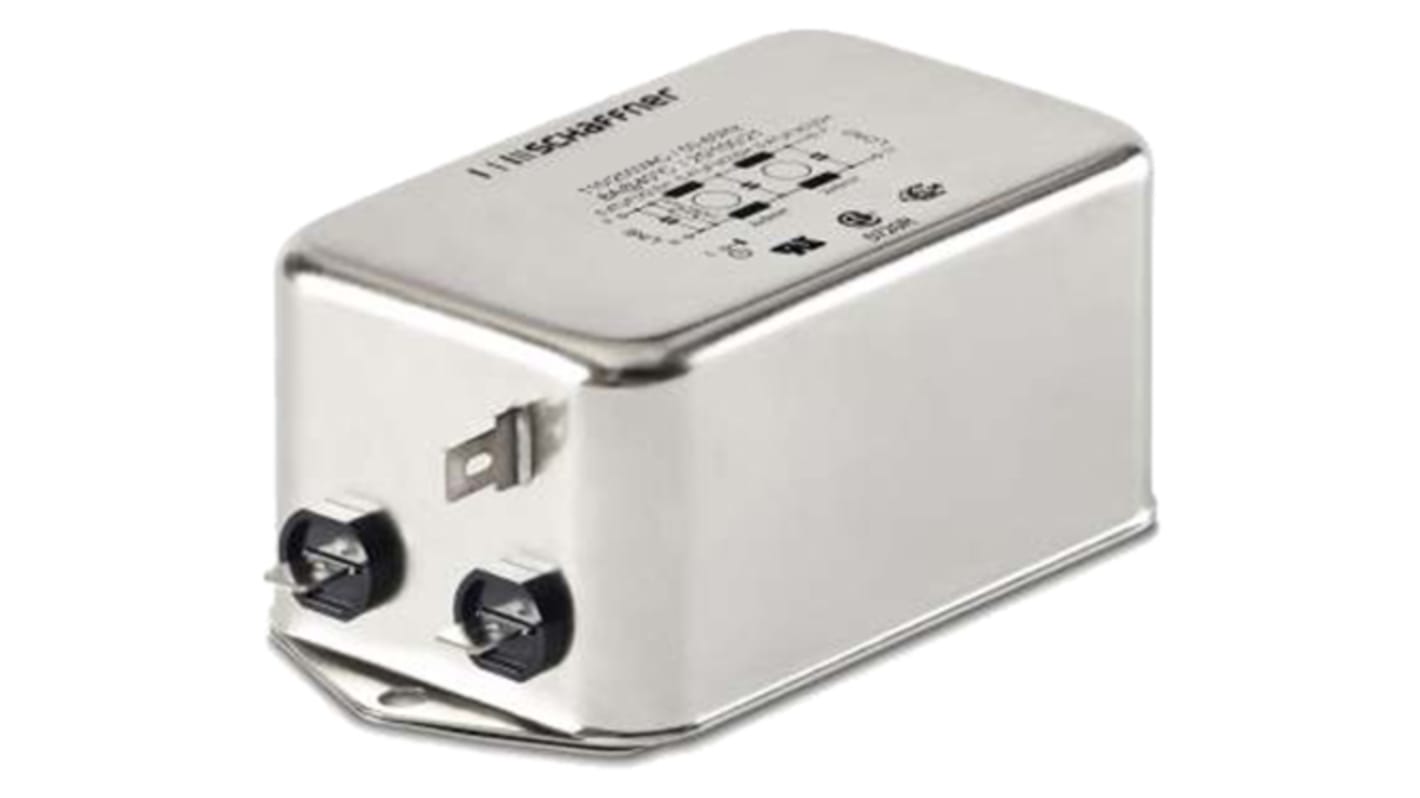

Schaffner, FN2090 6A 250 V ac/dc 0 → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
- RS庫存編號:
- 170-5140
- 製造零件編號:
- FN2090B-6-06
- 製造商:
- Schaffner
300 現貨庫存，可於3工作日發貨。
已增加
單價 个 (以毎盒：20)
HK$189.416
| 單位 | Per unit | Per Box* |
| 20 - 20 | HK$189.416 | HK$3,788.32 |
| 40 - 60 | HK$185.627 | HK$3,712.54 |
| 80 + | HK$181.915 | HK$3,638.30 |
| * 參考價格 | ||
- RS庫存編號:
- 170-5140
- 製造零件編號:
- FN2090B-6-06
- 製造商:
- Schaffner
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
FN2090 Series
Schaffner FN 2090 series 1-phase filters are designed for fast and easy chassis mounting. Featuring exceptional conductive attenuation, FN 2090 series filters are designed for noisy applications requiring excellent filter performance. Typical applications could be electrical and electronic equipment, consumer goods, household equipment, building automation, machinery, medical equipment, electronic data/communication processing equipment and office automation.
Two-stage filter
Very high differential and common-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)
Optional overvoltage protection (Z type)
Very high differential and common-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)
Optional overvoltage protection (Z type)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | FN2090 |
| Number of Stages | Two Stage |
| Operating Frequency | 0 → 400Hz |
| Length | 54mm |
| Depth | 85mm |
| Height | 30.3mm |
| Capacitance | 470nF |
| Inductance | 8 mH |
| Dimensions | 54 x 85 x 30.3mm |
| Leakage Current | 0.002 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 330kΩ |
