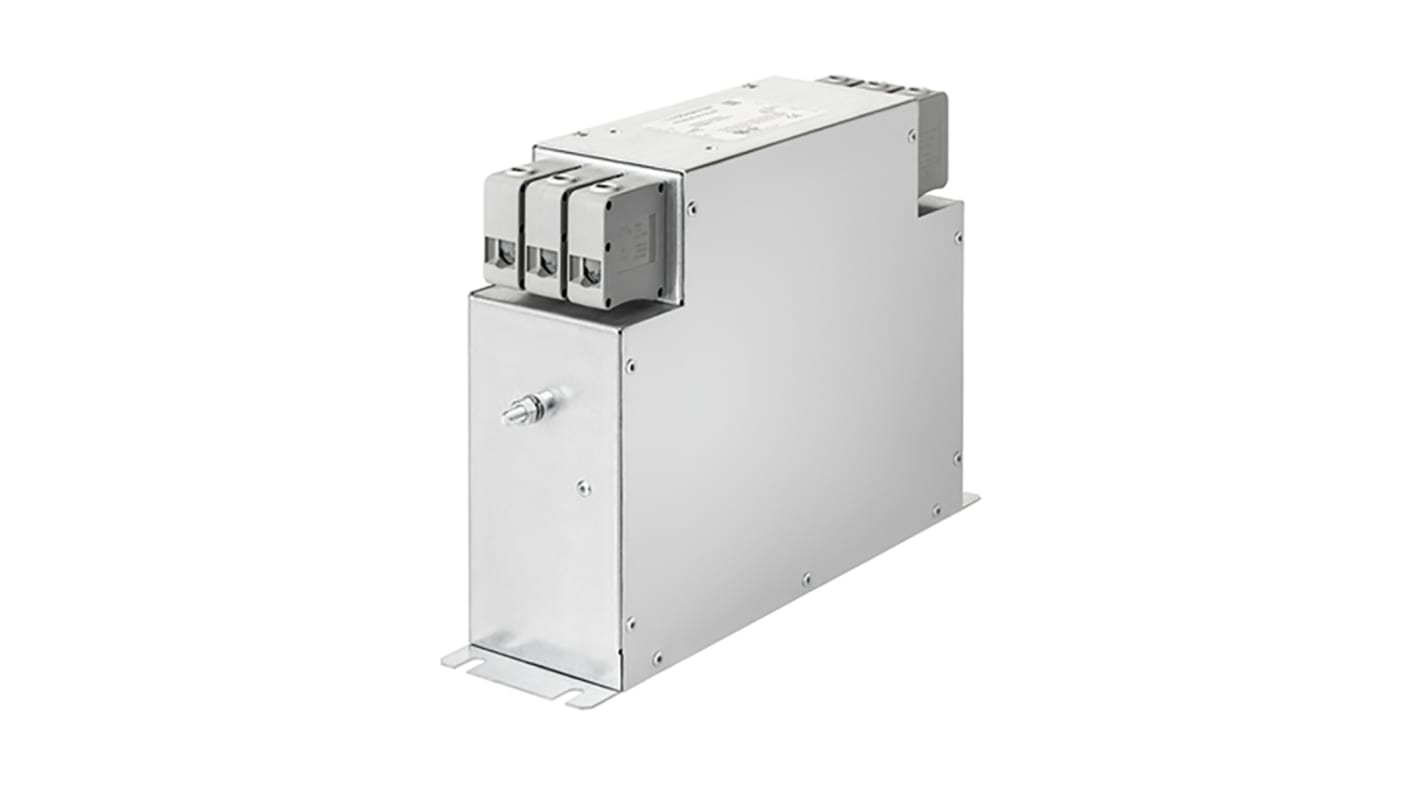

Schaffner, FN3287 160A 530/305 V ac 60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase
- RS庫存編號:
- 184-7577
- Distrelec 貨號:
- 301-40-165
- 製造零件編號:
- FN3287-160-40-C33-R65
- 製造商:
- Schaffner
可享批量折扣
Price 个**
HK$4,594.20
1 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$4,594.20 |
| 5 + | HK$4,502.30 |
** 參考價格
- RS庫存編號:
- 184-7577
- Distrelec 貨號:
- 301-40-165
- 製造零件編號:
- FN3287-160-40-C33-R65
- 製造商:
- Schaffner
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schaffner | |
| Maximum Current Rating | 160A | |
| Maximum Voltage Rating | 530/305 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Series | FN3287 | |
| Operating Frequency | 60Hz | |
| Length | 230mm | |
| Depth | 100mm | |
| Height | 225mm | |
| Dimensions | 230 x 100 x 225mm | |
| Leakage Current | 5.6 mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
| Power Loss | 90W | |
選取全部 | ||
|---|---|---|
品牌 Schaffner | ||
Maximum Current Rating 160A | ||
Maximum Voltage Rating 530/305 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Series FN3287 | ||
Operating Frequency 60Hz | ||
Length 230mm | ||
Depth 100mm | ||
Height 225mm | ||
Dimensions 230 x 100 x 225mm | ||
Leakage Current 5.6 mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Power Loss 90W | ||
