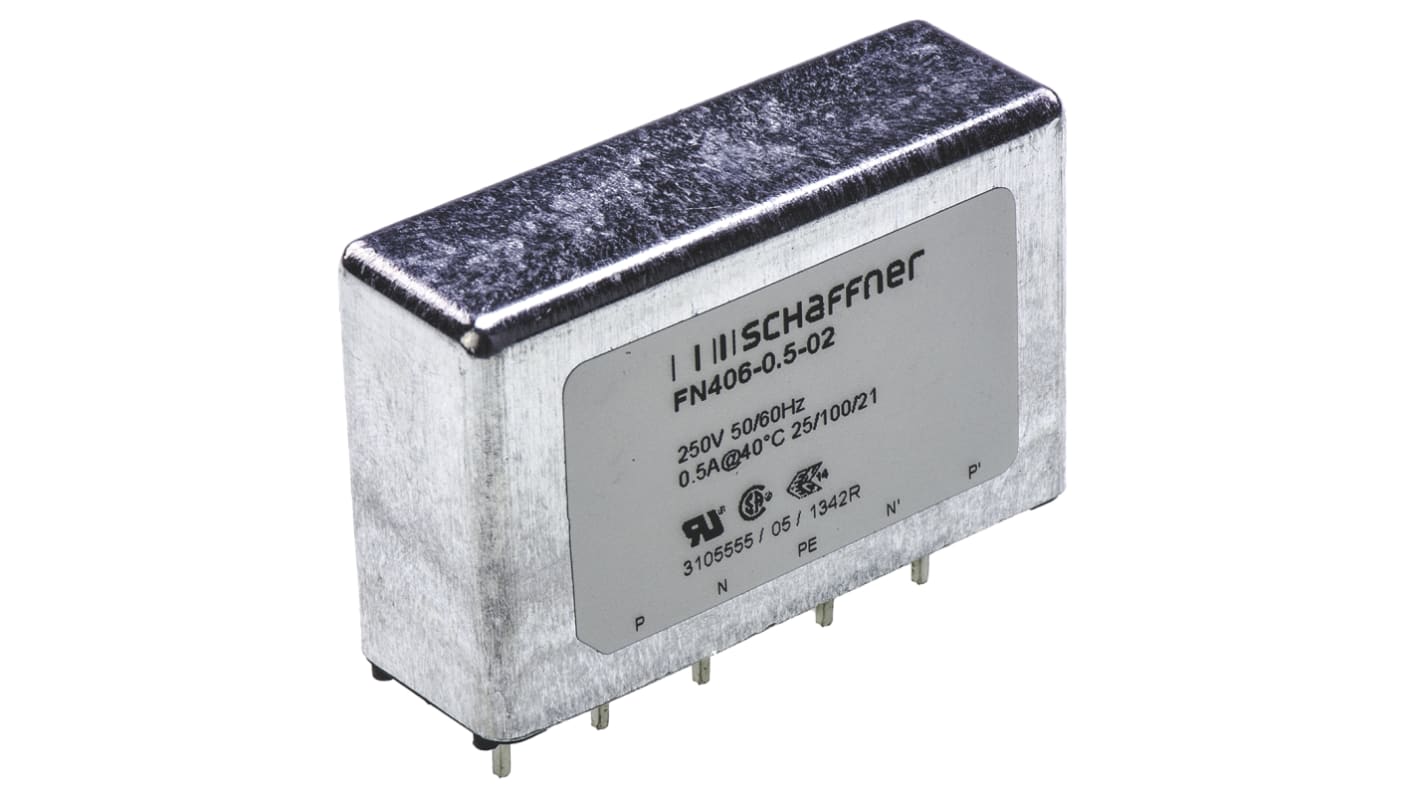

Schaffner, FN406 500mA 250 V ac 400Hz, PCB Mount EMC Filter, Pin, Single Phase
- RS庫存編號:
- 217-0814P
- 製造零件編號:
- FN406-0.5-02
- 製造商:
- Schaffner
可享批量折扣
小計 5 件 (以盒裝提供)*
HK$469.50
訂單超過 HK$250.00 免費送貨
有庫存
- 126 件準備從其他地點送貨
- 加上 250 件從 2026年1月22日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 5 - 9 | HK$93.90 |
| 10 + | HK$90.20 |
* 參考價格
- RS庫存編號:
- 217-0814P
- 製造零件編號:
- FN406-0.5-02
- 製造商:
- Schaffner
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schaffner | |
| Maximum Current Rating | 500mA | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | PCB Mount | |
| Termination Style | Pin | |
| Number of Phases | 1 | |
| Number of Stages | Single Stage | |
| Series | FN406 | |
| Operating Frequency | 400Hz | |
| Length | 45mm | |
| Depth | 15mm | |
| Capacitance | 2.2 nF, 100nF | |
| Height | 29.5mm | |
| Dimensions | 45 x 15 x 29.5mm | |
| Inductance | 24 mH | |
| Leakage Current | 0.373 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 1MΩ | |
| Standards Met | UL 94 V-0 | |
| 選取全部 | ||
|---|---|---|
品牌 Schaffner | ||
Maximum Current Rating 500mA | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type PCB Mount | ||
Termination Style Pin | ||
Number of Phases 1 | ||
Number of Stages Single Stage | ||
Series FN406 | ||
Operating Frequency 400Hz | ||
Length 45mm | ||
Depth 15mm | ||
Capacitance 2.2 nF, 100nF | ||
Height 29.5mm | ||
Dimensions 45 x 15 x 29.5mm | ||
Inductance 24 mH | ||
Leakage Current 0.373 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Resistance 1MΩ | ||
Standards Met UL 94 V-0 | ||
FN 406 Series
The FN406 PCB filter is a single-phase filter designed for easy, fast and compact PCB- mounting. A selection on amperage ratings and medical types are designed to offer you the desired standard product.
Can be used in a wide range of applications such as electrical & electronic equipment, small to medium-sized machines & household equipment, single-phase power supplies, switch-mode power supplies, test & measurement equipment and medical equipment.
Can be used in a wide range of applications such as electrical & electronic equipment, small to medium-sized machines & household equipment, single-phase power supplies, switch-mode power supplies, test & measurement equipment and medical equipment.
Compact PCB-mountable design
Low profile
Optional medical versions (B type)
Good conducted attenuation performance based on chokes with high saturation resistance and excellent thermal behaviour
Low profile
Optional medical versions (B type)
Good conducted attenuation performance based on chokes with high saturation resistance and excellent thermal behaviour
Approvals
UL recognised, CSA Certified, VDE
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Approvals
UL;CSA; VDE
