RS PRO 25A 115/250 V ac 50 → 60Hz, Chassis Mount Power Line Filter, Terminal Block, Single Phase
- RS庫存編號:
- 286-7301
- 製造商:
- RS PRO
可享批量折扣
小計（1 件）*
HK$1,499.33
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 5 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$1,499.33 |
| 5 - 9 | HK$1,394.31 |
| 10 - 24 | HK$1,296.72 |
| 25 + | HK$1,206.00 |
* 參考價格
- RS庫存編號:
- 286-7301
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Maximum Current Rating | 25A | |
| Maximum Voltage Rating | 115/250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 1 | |
| Number of Stages | Two Stage | |
| Operating Frequency | 50 → 60Hz | |
| Length | 105mm | |
| Depth | 105mm | |
| Capacitance | 0.68µF | |
| Height | 60mm | |
| Dimensions | 105 x 105 x 60mm | |
| Inductance | 2 x 2.5mH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 1.2/2.3mA | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 470kΩ | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Maximum Current Rating 25A | ||
Maximum Voltage Rating 115/250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 1 | ||
Number of Stages Two Stage | ||
Operating Frequency 50 → 60Hz | ||
Length 105mm | ||
Depth 105mm | ||
Capacitance 0.68µF | ||
Height 60mm | ||
Dimensions 105 x 105 x 60mm | ||
Inductance 2 x 2.5mH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 1.2/2.3mA | ||
Maximum Operating Temperature +85°C | ||
Resistance 470kΩ | ||
- COO (Country of Origin):
- CN

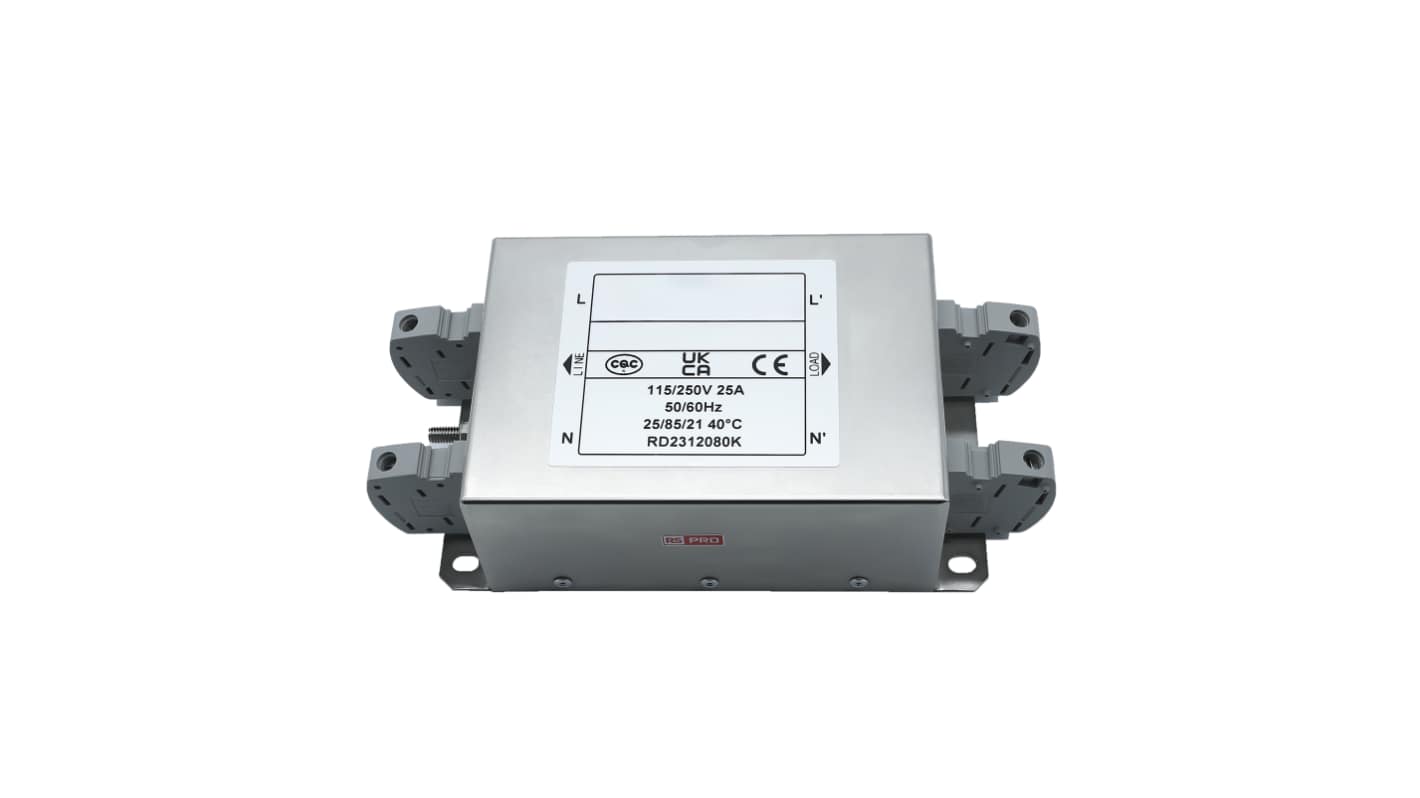

RS PRO 25A Single Phase Two Stage EMI Filter (115/250V)
A general purpose single phase two stage EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.
Designed for chassis mounting and built to a compact size of 150 x 105 x 60mm the power line filter is ideal for areas with limited space and is easy to install using the terminal connections.
Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.
Features and Benefits
Power line EMI filter
Current rated to 25A
Resistance of 470KΩ
Hipot Rating 2250vdc (line to ground), 500Vdc (line to line)
IP40 rated
Dimensions of 150 x 105 x 60mm
92 x 120mm mounting hole spacing
Terminal connections
Weight of 2.2kg
Standards and Approvals: CE, CQC, UKCA, EN 60939; GB/T 15287; GB/T 15288-1994
