RS PRO 36A 300/520 V ac 50 → 60Hz, Chassis Mount Power Line Filter, Screw 3 Phase

查看所有Power Line Filters
可享批量折扣

小計（1 件）*

HK$2,833.80

Add to Basket
選擇或輸入數量
有庫存
  • 9 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$2,833.80
5 - 9HK$2,635.43
10 - 24HK$2,451.02
25 +HK$2,279.42

* 參考價格

RS庫存編號:
286-7332
製造商:
RS PRO
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

RS PRO

Maximum Current Rating

36A

Maximum Voltage Rating

300/520 V ac

Mounting Type

Chassis Mount

Termination Style

Screw

Number of Phases

3

Number of Stages

Single Stage

Operating Frequency

50 → 60Hz

Length

150mm

Depth

105mm

Capacitance

1.0µF

Height

60mm

Inductance

4 x 0.9mH

Dimensions

150 x 105 x 60mm

Leakage Current

0.07/0.13mA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+100°C

Resistance

680kΩ

COO (Country of Origin):
CN

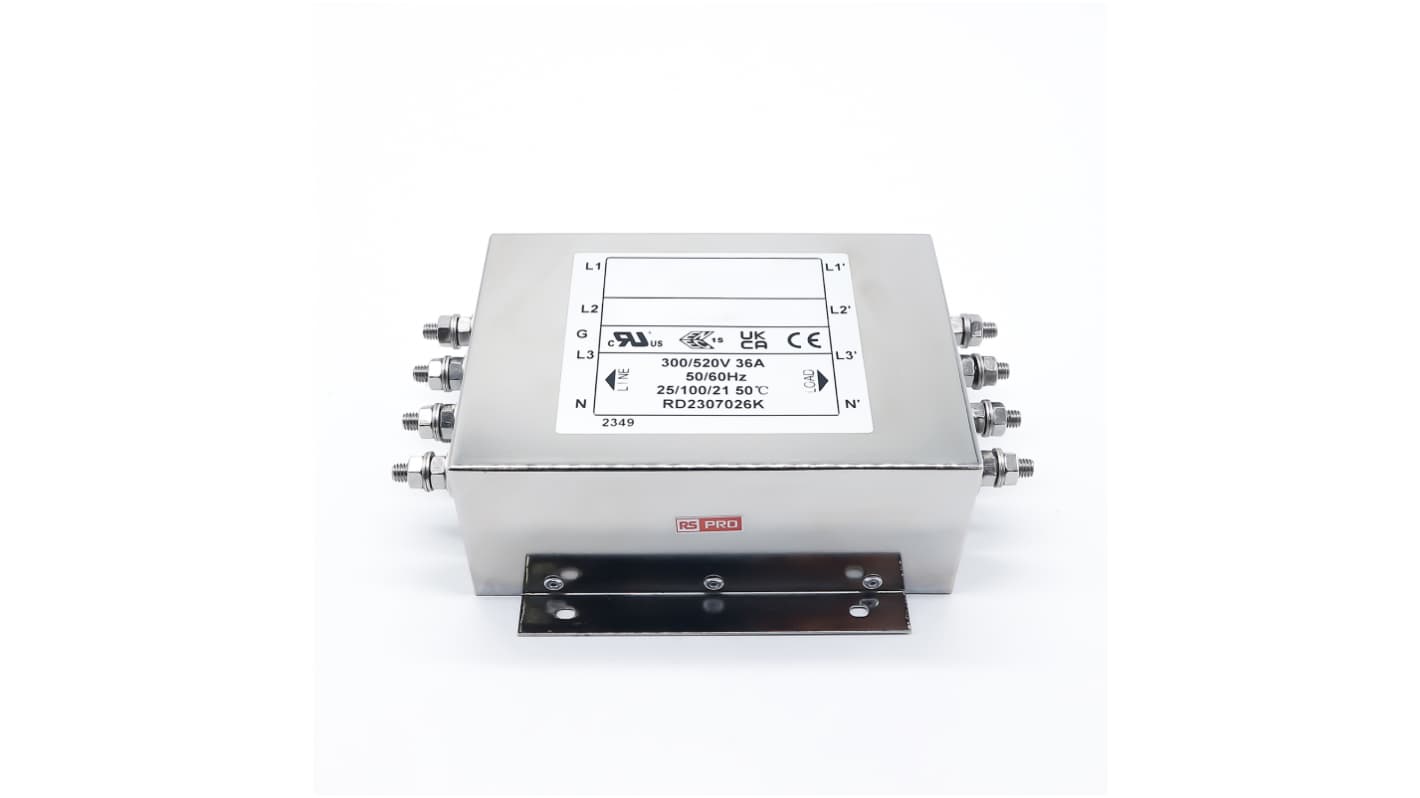

RS PRO 36A Three Phase Single Stage EMI Filter (300/520V)


A general purpose three phase single stage EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.

Designed for chassis mounting and built to a compact size of 150 x 105 x 60mm the power line filter is ideal for areas with limited space and is easily connected using the screw terminals.

Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 100°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.

Features and Benefits


Power line EMI filter

Current rated to 36A

Resistance of 680KΩ

Hipot Rating 2750vdc (line to ground), 2250Vdc (line to line), 1300Vdc (line to neutral)

IP40 rated

Dimensions of 150 x 105 x 60mm

120 x 90mm mounting hole spacing

Screw terminals

Weight of 2.5kg

Standards and Approvals: UL, CE, ENEC, UKCA, UL/EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
