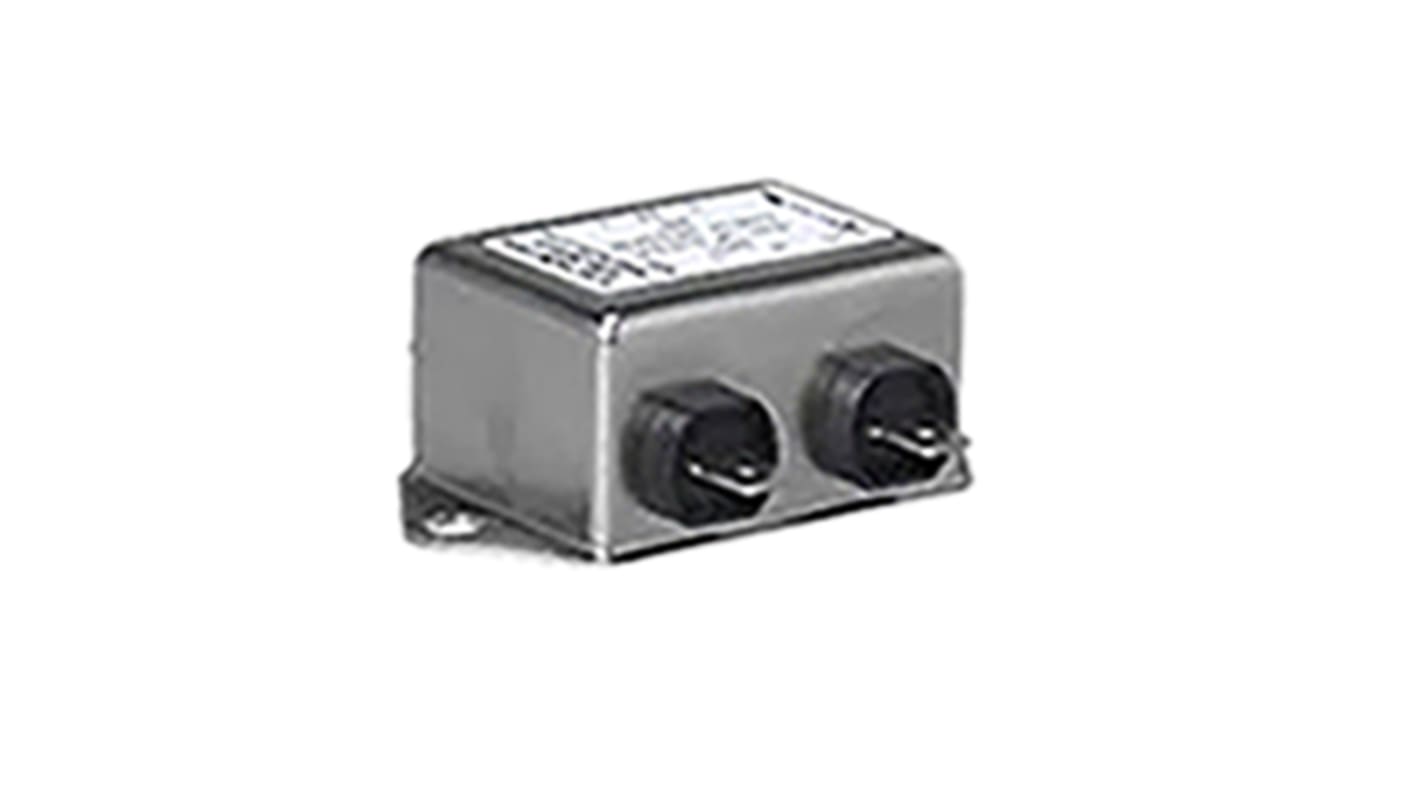

Schurter, FMBB NEO 16A 250 V ac 50Hz, Screw Mount RFI Filter, Quick Connect, Single Phase
- RS庫存編號:
- 890-4032
- 製造零件編號:
- 5500.2637.01
- 製造商:
- Schurter
單價 个
HK$203.30
13 現貨庫存，可於3工作日發貨。
單位 | 每單位 |
|---|---|
| 1 - 2 | HK$203.30 |
| 3 - 9 | HK$195.17 |
| 10 + | HK$187.03 |
- RS庫存編號:
- 890-4032
- 製造零件編號:
- 5500.2637.01
- 製造商:
- Schurter
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
FMAB NEO Series
Professional range of Schurter single phase block filters from the FMAB NEO series. The filters are very cost effectives and combines a compact design with a high level performance. Each filter comes fully enclosed in a shiny metal housing. Typical application where you find these filters include industrial, household and medical equipment where high symmetrical interferences could be an issue.
Excellent symmetrical attenuation
Full metal housing
1 - 20A @ 40°C options available
Chassis mounted
Full metal housing
1 - 20A @ 40°C options available
Chassis mounted
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Screw Mount |
| Termination Style | Quick Connect |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | FMBB NEO |
| Operating Frequency | 50 Hz, 60Hz |
| Length | 64mm |
| Depth | 44mm |
| Height | 24.8mm |
| Dimensions | 64 x 44 x 24.8mm |
| Leakage Current | 1 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 7.2mΩ |
| Standards Met | UL 1283 |
| Power Loss | 3.7W |
