Infineon EVAL2EP130RVDTOBO1 IGBT for EVAL-2EP130R-VD for 2EP130R

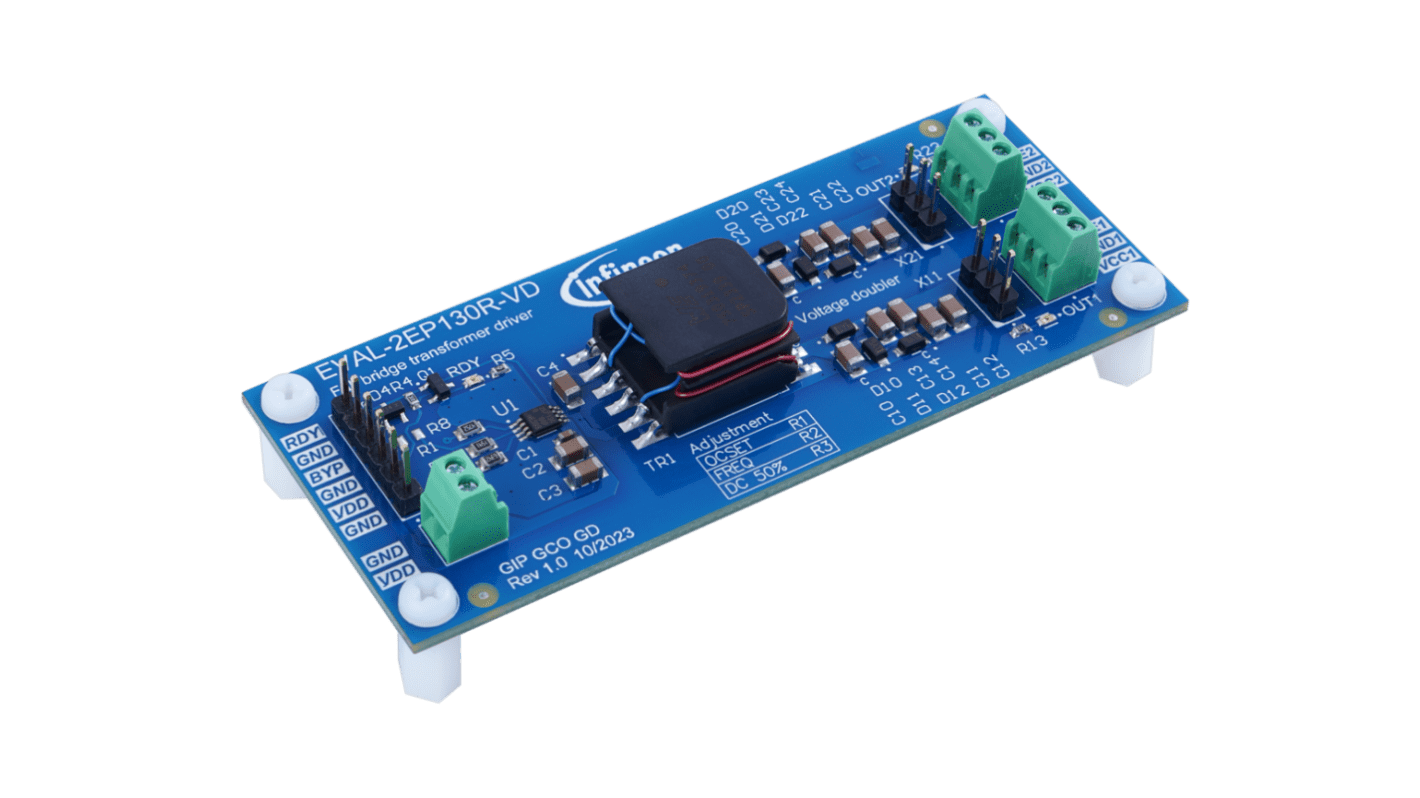

The Infineon evaluation board includes dual output peak rectification and customizable output voltage for IGBT. All 2EP1xx product variants are pin compatible and can be used with matching configuration settings in customer specific designs. 2EP130R is pre-assembled on EVAL-2EP130R-VD for complete feature evaluation. The evaluation board provides all the necessary supply, load, and signal connections for an application.

Dual isolated output supply rails
Adjustable output voltage ratio
Wide operating range from 50 to 695 kHz
Adjustable overcurrent threshold
Power Output Short circuit protection
Over temperature protection
RDY status output for normal operation
